Wellbore #00 Wellbore Classification: OW Status: PR - 4/4/2014 Measured TD: 12567 ft. Vertical TD: 7573 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 4/4/2014 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/11/2015 | | Proposed Top PZ Location: | Sec:28 Twp: 1N 67W | Footage: 650 FSL 2350 FWL | | Bottom Hole Location: | Sec:28 Twp: 1N 67W | Footage: 1 FNL 2350 FWL | | Proposed Depth/Form: | 12562 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 380, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7933 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 840, Top: 0 ft., Bottom: 7933 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6914 ft., Depth: 12562 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

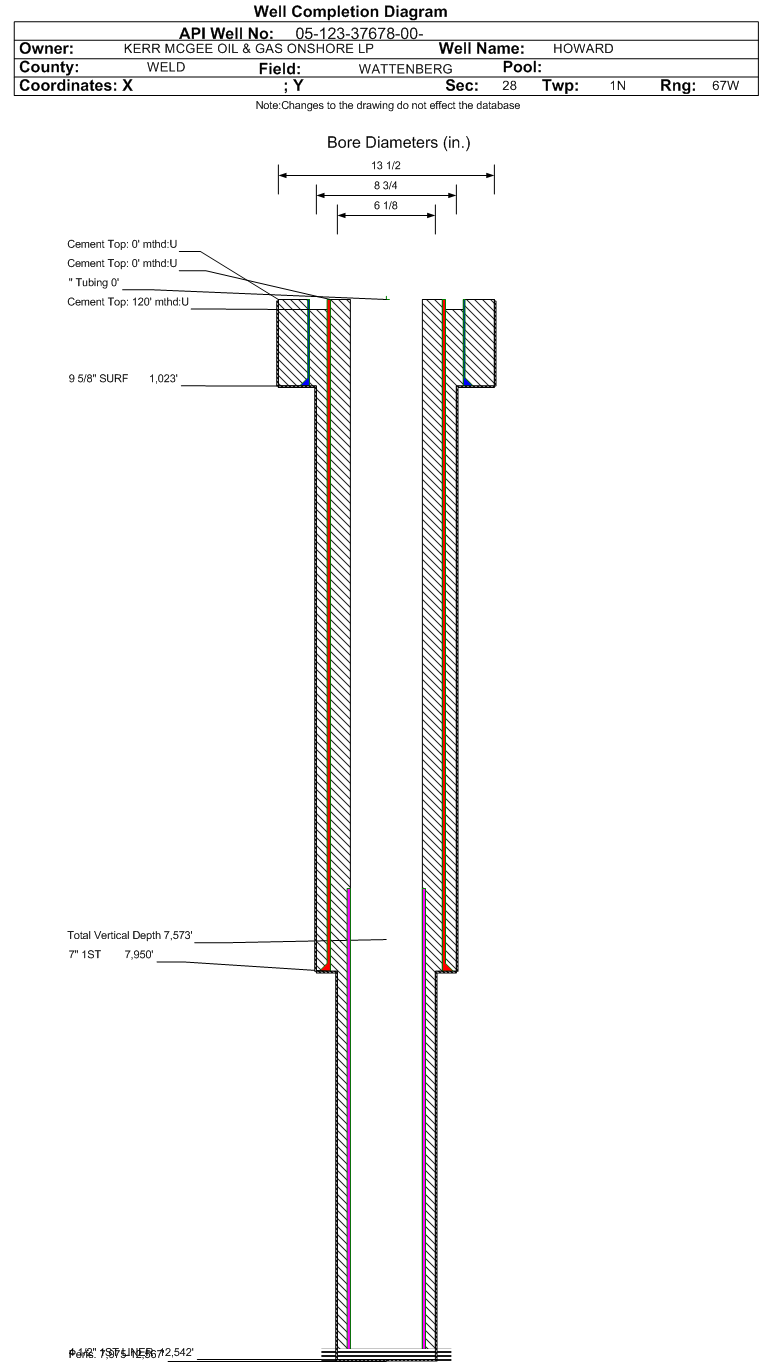

| Wellbore Completed | | Completion Date: | 9/15/2013 | | Spud Date: | 8/12/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 12567 ft. | Measured PB depth: | 12567 ft. | | True Vertical TD: | 7573 ft. | True Vertical PB depth: | 7573 ft. | | Top PZ Location: | Sec:28 Twp: 1N 67W | Footage: 641 FSL 2369 FWL | | Bottom Hole Location: | Sec:28 Twp: 1N 67W | Footage: 27 FNL 2316 FWL | | Log Types: | CBL, GR, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1023 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 390, Top: 0 ft., Bottom: 1023 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7950 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 810, Top: 120 ft., Bottom: 7950 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6969 ft., Depth: 12542 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4830 ft. | | | | | SHARON SPRINGS | 7436 ft. | | | | | NIOBRARA | 7465 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 4/4/2014 Interval Top: 7975 ft. Interval Bottom: 12567 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/27/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/8/2014 | Treatment End Date: | 3/10/2014 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7975-12567.
167 BBL ACID,17192 BBL CROSSLINK GEL,45293 BBL LINEAR GEL,59651 BBL SLICKWATER,122302 BBL TOTAL FLUID.
369920# 30/50 OTTAWA/ST. PETERS,3241330# 40/70 OTTAWA/ST. PETERS,3611250# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 122302 | Max pressure during treatment (psi): | 8203 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 34 | | Total acid used in treatment (bbls): | 167 | Min frac gradient (psi/ft): | 0.85 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 2209 | | Fresh water used in treatment (bbls): | 122136 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 3611250 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/4/2014 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 27 | | BTU_GAS | 1118 | | CALC_BBLS_OIL | 27 | | CALC_GOR | 1481 | | CALC_MCF_GAS | 40 | | CASING_PRESS | 300 | | GRAVITY_OIL | 48 | | MCF_GAS | 40 |
| | Perforation Data: | | Interval Top: | 7975 ft. | # Of Holes: | 0 | | Interval Bottom: | 12567 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1481 |
| Total Gas Produced (MCF) | 28518 |
| GOR | 19255 |
| GOR Determination | MCFE |
| Average BOE per Day | 17.506 |
| Average MCFE per Day | 101.565 |
| Federal Financial Assurance | i | |
|
|
