Wellbore #00 Wellbore Classification: OW Status: SI - 7/1/2023 Measured TD: 13507 ft. Vertical TD: 7090 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 7/1/2023 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/4/2015 | | Proposed Top PZ Location: | Sec:7 Twp: 3N 66W | Footage: 1217 FSL 330 FWL | | Bottom Hole Location: | Sec:18 Twp: 3N 66W | Footage: 485 FSL 306 FWL | | Proposed Depth/Form: | 13556 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 380, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7459 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 790, Top: 0 ft., Bottom: 7459 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6458 ft., Depth: 13556 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

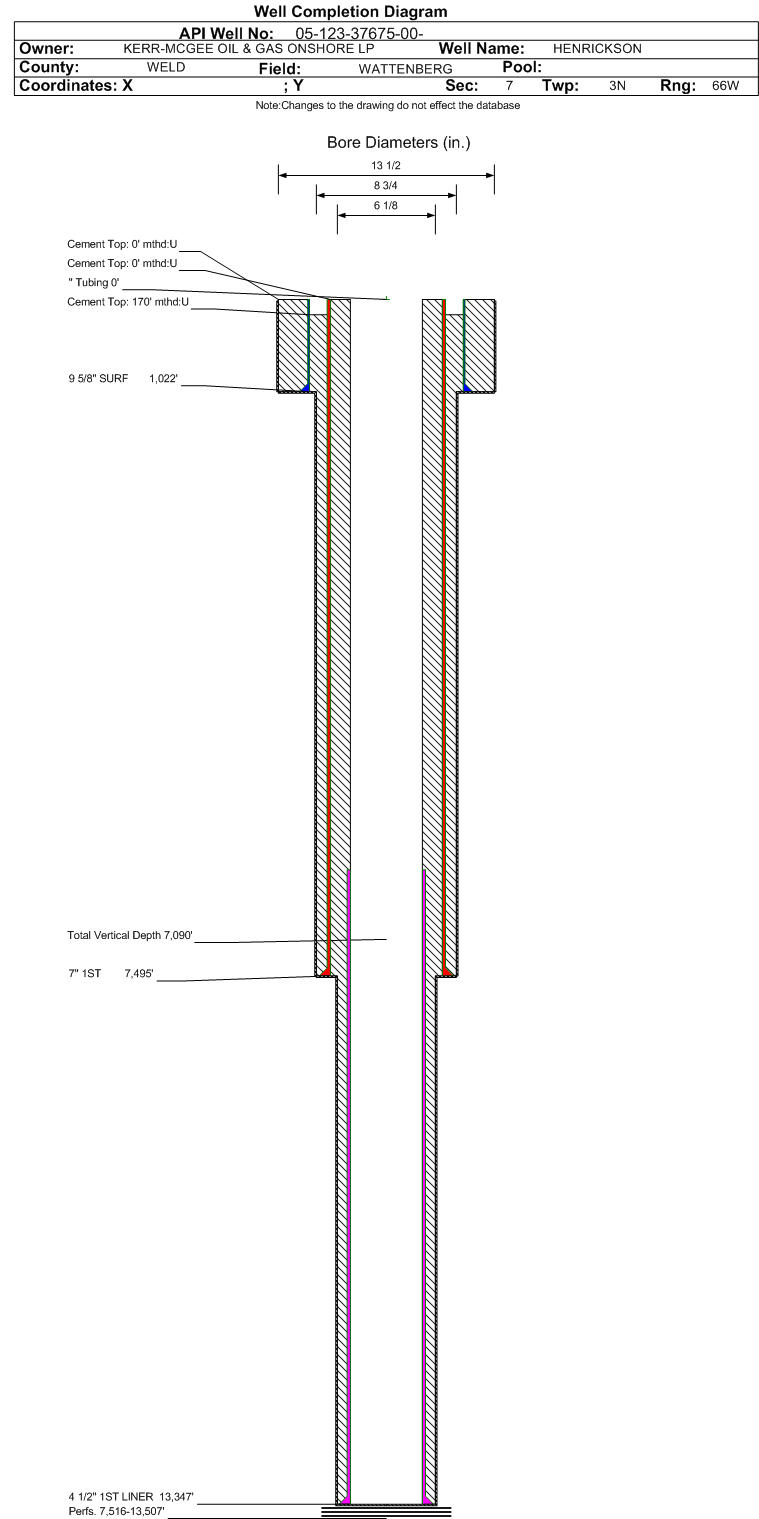

| Wellbore Completed | | Completion Date: | 9/29/2013 | | Spud Date: | 9/8/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 13507 ft. | Measured PB depth: | 13338 ft. | | True Vertical TD: | 7090 ft. | True Vertical PB depth: | 7090 ft. | | Top PZ Location: | Sec:7 Twp: 3N 66W | Footage: 1217 FSL 330 FWL | | Bottom Hole Location: | Sec:18 Twp: 3N 66W | Footage: 485 FSL 306 FWL | | Log Types: | CBL, GR, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1022 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 436, Top: 0 ft., Bottom: 1022 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7495 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 730, Top: 170 ft., Bottom: 7495 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6319 ft., Depth: 13347 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7091 ft. | | | | | NIOBRARA | 7190 ft. | | | |
Formation NBRR Formation Classification: OW Status: AB - 6/4/2025 Interval Top: 7516 ft. Interval Bottom: 13507 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/30/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/19/2013 | Treatment End Date: | 1/8/2014 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7516-13507.
82317 BBL CROSSLINK GEL,27242 BBL LINEAR GEL,76621 BBL SLICKWATER,186180 BBL TOTAL FLUID.
5231504# 30/50 OTTAWA/ST. PETERS SAND,2320369# 40/70 OTTAWA/ST. PETERS SAND,7551873# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 186180 | Max pressure during treatment (psi): | 7456 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 39 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.93 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 10019 | | Fresh water used in treatment (bbls): | 186180 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 7551873 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 106 | | BTU_GAS | 1247 | | CALC_BBLS_OIL | 106 | | CALC_GOR | 4594 | | CALC_MCF_GAS | 487 | | CASING_PRESS | 1000 | | GRAVITY_OIL | 54 | | MCF_GAS | 487 |
| | Perforation Data: | | Interval Top: | 7516 ft. | # Of Holes: | 0 | | Interval Bottom: | 13507 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 12/16/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
06/30/2023 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
