Wellbore #00 Wellbore Classification: OW Status: PR - 1/1/2026 Measured TD: 13994 ft. Vertical TD: 7297 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/1/2026 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/4/2015 | | Proposed Top PZ Location: | Sec:7 Twp: 3N 66W | Footage: 1206 FSL 700 FEL | | Bottom Hole Location: | Sec:18 Twp: 3N 66W | Footage: 460 FSL 700 FWL | | Proposed Depth/Form: | 13701 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 240, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 380, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7647 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 810, Top: 0 ft., Bottom: 7647 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6646 ft., Depth: 13701 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

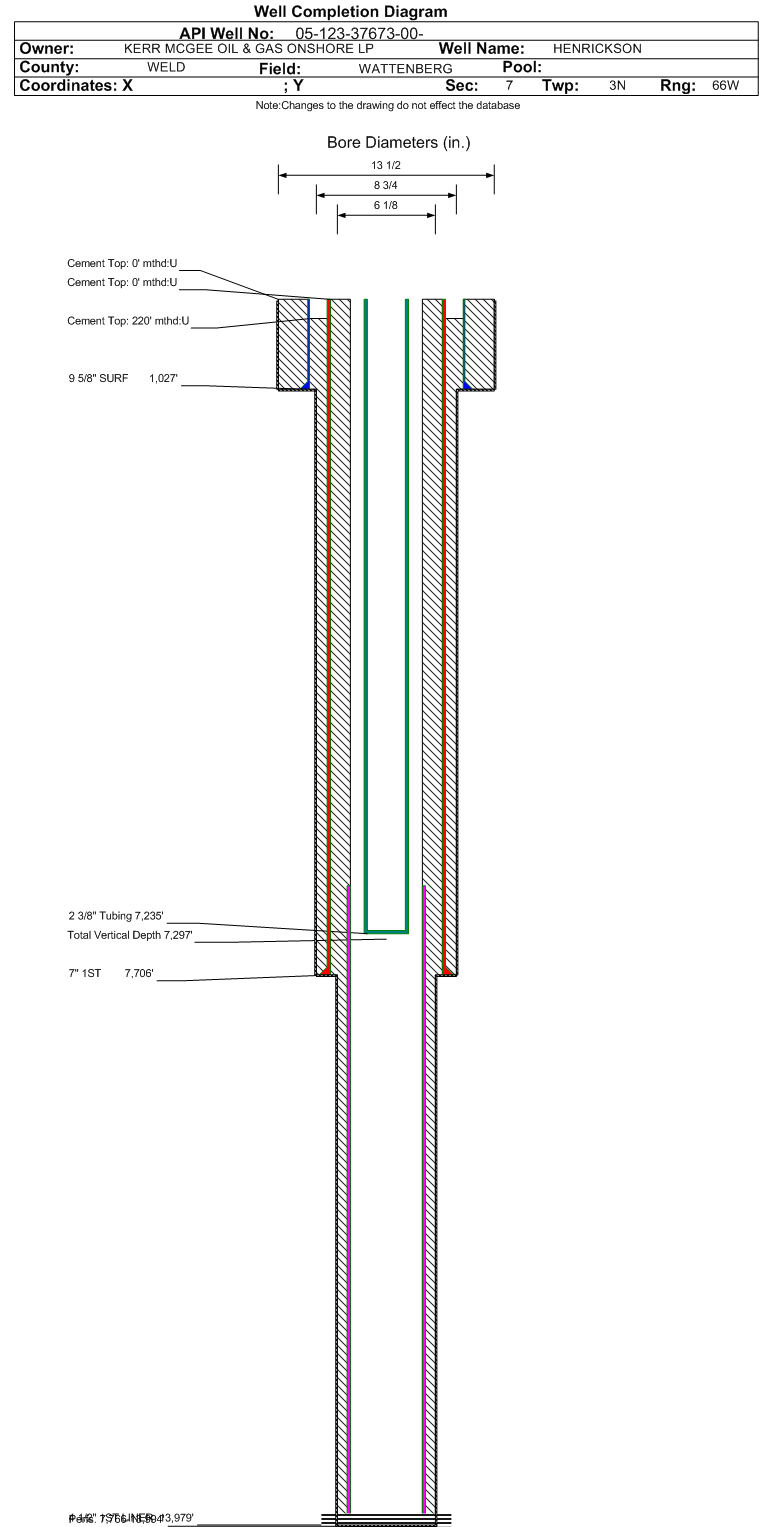

| Wellbore Completed | | Completion Date: | 10/9/2013 | | Spud Date: | 9/7/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 13994 ft. | Measured PB depth: | 13977 ft. | | True Vertical TD: | 7297 ft. | True Vertical PB depth: | 7297 ft. | | Top PZ Location: | Sec:7 Twp: 3N 66W | Footage: 1486 FSL 825 FWL | | Bottom Hole Location: | Sec:18 Twp: 3N 66W | Footage: 460 FSL 825 FWL | | Log Types: | CBL, GR, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1027 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 418, Top: 0 ft., Bottom: 1027 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7706 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 718, Top: 220 ft., Bottom: 7706 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6688 ft., Depth: 13979 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7003 ft. | | | | | NIOBRARA | 7064 ft. | | | | | FORT HAYS | 7503 ft. | | | | | CODELL | 7573 ft. | | | |
Formation CODL Formation Classification: OW Status: PR - 1/1/2026 Interval Top: 7766 ft. Interval Bottom: 13994 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 3/28/2014 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/19/2013 | Treatment End Date: | 1/8/2014 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7766-13994.
5577 BBL CROSSLINK GEL,1625 BBL LINEAR GEL,13070 BBL SLICKWATER,20272 BBL TOTAL FLUID.
160764# 30/50 OTTAWA/ST. PETERS SAND,417686# 40/70 OTTAWA/ST. PETERS SAND,578450# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 20272 | Max pressure during treatment (psi): | 6642 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.75 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 20272 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 578450 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7235 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/3/2014 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 19 | | BBLS_OIL | 16 | | BTU_GAS | 1265 | | CALC_BBLS_H2O | 19 | | CALC_BBLS_OIL | 16 | | CALC_GOR | 12375 | | CALC_MCF_GAS | 198 | | CASING_PRESS | 566 | | GRAVITY_OIL | 54 | | MCF_GAS | 198 | | TUBING_PRESS | 574 |
| | Perforation Data: | | Interval Top: | 7766 ft. | # Of Holes: | 0 | | Interval Bottom: | 13994 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 951 |
| Total Gas Produced (MCF) | 10913 |
| GOR | 11475 |
| GOR Determination | BOE |
| Average BOE per Day | 7.755 |
| Average MCFE per Day | 44.991 |
| Federal Financial Assurance | i | |
|
|
