Wellbore #00 Wellbore Classification: OW Status: SI - 6/1/2025 Measured TD: 11861 ft. Vertical TD: 6909 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 6/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/21/2015 | | Proposed Top PZ Location: | Sec:25 Twp: 5N 65W | Footage: 1097 FNL 717 FWL | | Bottom Hole Location: | Sec:25 Twp: 5N 65W | Footage: 1079 FNL 50 FEL | | Proposed Depth/Form: | 11845 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 875 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 875 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7529 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 650, Top: 500 ft., Bottom: 7529 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6199 ft., Depth: 11845 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

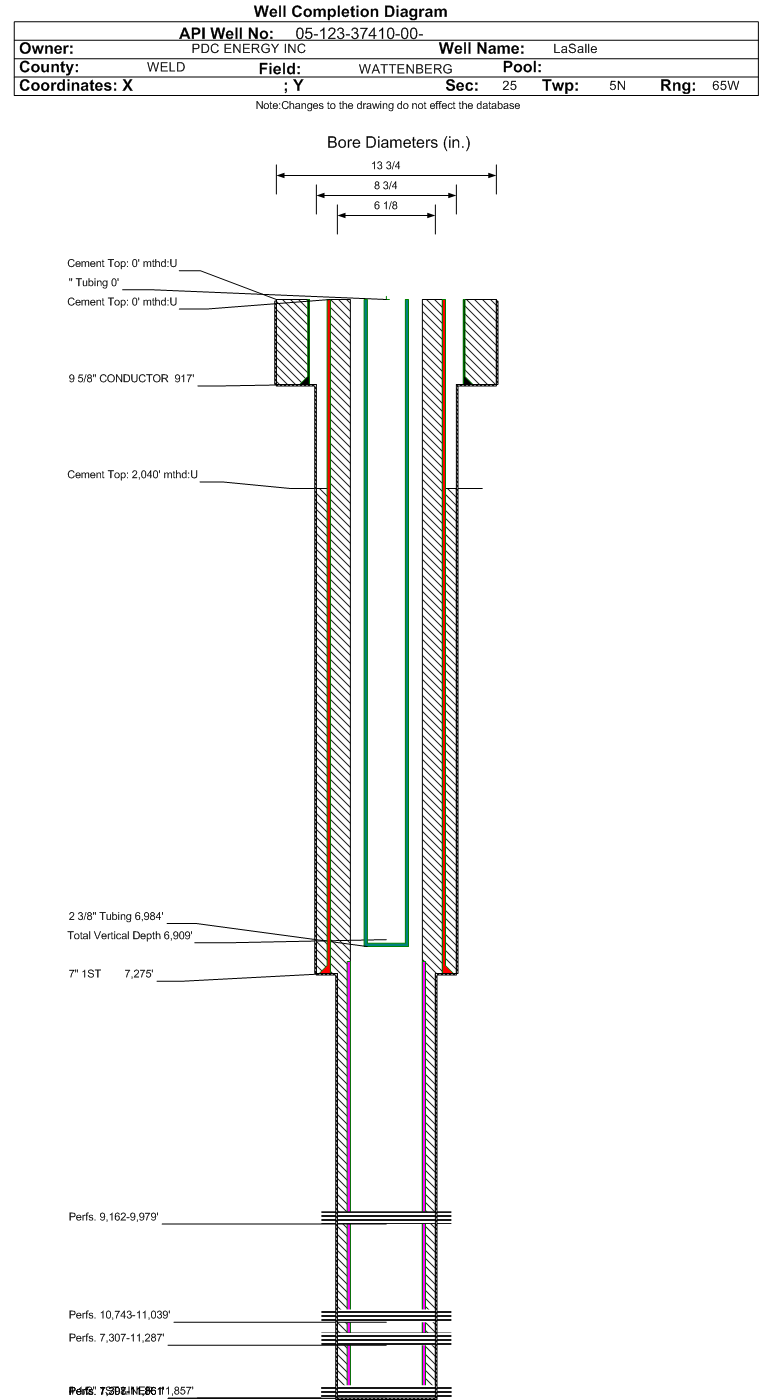

| Wellbore Completed | | Completion Date: | 12/4/2013 | | Spud Date: | 11/25/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 11861 ft. | Measured PB depth: | 11853 ft. | | True Vertical TD: | 6909 ft. | True Vertical PB depth: | 6909 ft. | | Top PZ Location: | Sec:25 Twp: 5N 65W | Footage: 1097 FNL 717 FWL | | Bottom Hole Location: | Sec:25 Twp: 5N 65W | Footage: 1079 FNL 50 FEL | | Log Types: | CBL, MWD | | Casing: | String Type: CONDUCTOR, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 917 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 820, Top: 0 ft., Bottom: 917 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 917 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 820, Top: 0 ft., Bottom: 917 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7275 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 610, Top: 0 ft., Bottom: 7275 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7146 ft., Depth: 11857 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3610 ft. | | | | | SUSSEX | 4089 ft. | | | | | SHARON SPRINGS | 6569 ft. | | | | | NIOBRARA | 6668 ft. | | | | | FORT HAYS | 7307 ft. | | | | | CODELL | 7398 ft. | | | | | CARLILE | 9162 ft. | | | |
Formation NBRR Formation Classification: OW Status: CM - 6/20/2019 Interval Top: 10743 ft. Interval Bottom: 11039 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 6/20/2019 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 10,743'-11,039' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 10743 ft. | # Of Holes: | | | Interval Bottom: | 11039 ft. | Hole Size: | |
|
Formation CARL Formation Classification: OW Status: CM - 6/20/2019 Interval Top: 9162 ft. Interval Bottom: 9979 ft.| Completed Information for Formation CARLILE | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CARLILE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 6/20/2019 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 9,162'-9,979' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CARL. |
| | Perforation Data: | | Interval Top: | 9162 ft. | # Of Holes: | | | Interval Bottom: | 9979 ft. | Hole Size: | |
|
Formation CODL Formation Classification: OW Status: CM - 6/20/2019 Interval Top: 7398 ft. Interval Bottom: 11861 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 6/20/2019 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 7,398'-9,162' 9,979'-10,743' 11,287'-11,861' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7398 ft. | # Of Holes: | | | Interval Bottom: | 11861 ft. | Hole Size: | |
|
Formation FTHYS Formation Classification: OW Status: CM - 6/20/2019 Interval Top: 7307 ft. Interval Bottom: 11287 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 6/20/2019 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 7,307'-7,398' 11,039'-11,287' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 7307 ft. | # Of Holes: | | | Interval Bottom: | 11287 ft. | Hole Size: | |
|
Formation NFCC Formation Classification: OW Status: SI - 6/1/2025 Interval Top: 7307 ft. Interval Bottom: 11861 ft.| Completed Information for Formation NIOBRARA-FORT HAYS-CODELL-CARLILE | | 1st Production Date: | 3/17/2014 | Choke Size: | | | Formation Name: | NIOBRARA-FORT HAYS-CODELL-CARLILE | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/15/2014 | Treatment End Date: | 2/16/2014 | | Treatment Summary: | 16 Stage Sliding Sleeve, Swell Packer set at 7,307'
Total Fluid: 58,469 bbls
Gel Fluid: 45,955 bbls
Slickwater Fluid: 12,514 bbls
Total Proppant: 3,378,360 lbs
Silica Proppant: 3,378,360 lbs
Method for determining flowback: measuring flowback tank volumes. | | Total fluid used in treatment (bbls): | 58469 | Max pressure during treatment (psi): | 3833 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 16 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.74 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 4090 | | Fresh water used in treatment (bbls): | 58469 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3378360 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6984 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/17/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 43 | | BBLS_OIL | 127 | | BTU_GAS | 1344 | | CALC_BBLS_H2O | 43 | | CALC_BBLS_OIL | 127 | | CALC_GOR | 13039 | | CALC_MCF_GAS | 1656 | | CASING_PRESS | 1242 | | GRAVITY_OIL | 58 | | MCF_GAS | 1656 | | TUBING_PRESS | 976 |
| | Perforation Data: | | Interval Top: | 7307 ft. | # Of Holes: | | | Interval Bottom: | 11861 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 14 |
| Total Gas Produced (MCF) | 1773 |
| GOR | 126642 |
| GOR Determination | MCFE |
| Average BOE per Day | 0.891 |
| Average MCFE per Day | 5.167 |
| Federal Financial Assurance | i | |
|
|
