Wellbore #00 Wellbore Classification: OW Status: SI - 6/1/2025 Measured TD: 11775 ft. Vertical TD: 6765 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 6/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/21/2015 | | Proposed Top PZ Location: | Sec:25 Twp: 5N 65W | Footage: 153 FNL 824 FWL | | Bottom Hole Location: | Sec:30 Twp: 5N 64W | Footage: 150 FNL 50 FEL | | Proposed Depth/Form: | 12635 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 875 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 875 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7351 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 650, Top: 500 ft., Bottom: 7351 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6141 ft., Depth: 12635 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

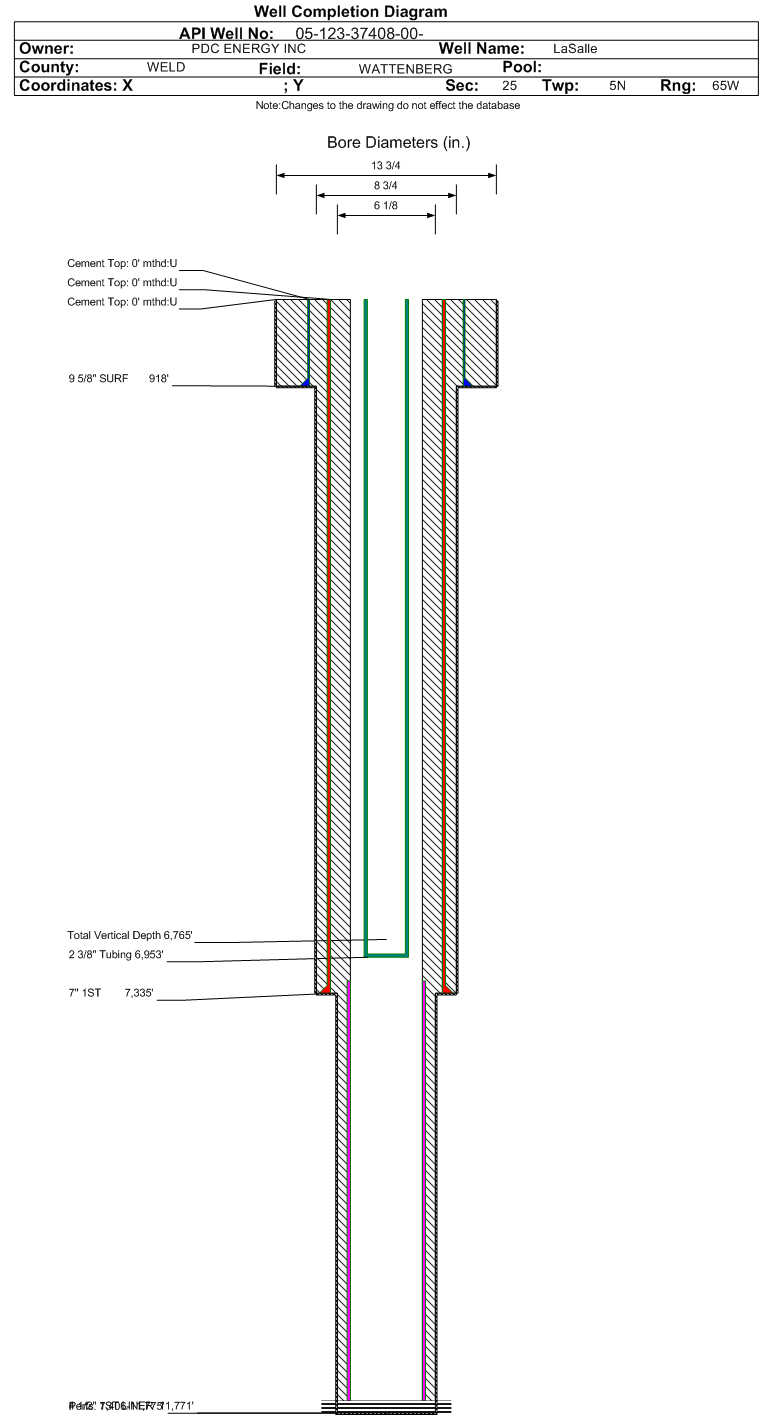

| Wellbore Completed | | Completion Date: | 11/23/2013 | | Spud Date: | 11/12/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 11775 ft. | Measured PB depth: | 11767 ft. | | True Vertical TD: | 6765 ft. | True Vertical PB depth: | 6765 ft. | | Top PZ Location: | Sec:25 Twp: 5N 65W | Footage: 145 FNL 890 FWL | | Bottom Hole Location: | Sec:25 Twp: 5N 65W | Footage: 143 FNL 51 FEL | | Log Types: | CBL, MWD | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 918 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 820, Top: 0 ft., Bottom: 918 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7335 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 610, Top: 0 ft., Bottom: 7335 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7204 ft., Depth: 11771 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3624 ft. | | | | | SUSSEX | 4082 ft. | | | | | SHARON SPRINGS | 6644 ft. | | | | | NIOBRARA | 6852 ft. | | | |
Formation NBRR Formation Classification: OW Status: SI - 6/1/2025 Interval Top: 7406 ft. Interval Bottom: 11775 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/11/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/14/2014 | Treatment End Date: | 2/15/2014 | | Treatment Summary: | 16 Stage Sliding Sleeve, Swell Packer set at 7,406'
Total Fluid: 59,339 bbls
Gel Fluid: 46,868 bbls
Slickwater Fluid: 12,471 bbls
Total Proppant: 3,686,400 lbs
Silica Proppant: 3,686,400 lbs
Method for determining flowback: measuring flowback tank volumes. | | Total fluid used in treatment (bbls): | 59339 | Max pressure during treatment (psi): | 3884 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 16 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 1.00 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 4485 | | Fresh water used in treatment (bbls): | 59339 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3686400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6953 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/11/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 63 | | BBLS_OIL | 290 | | BTU_GAS | 1276 | | CALC_BBLS_H2O | 63 | | CALC_BBLS_OIL | 290 | | CALC_GOR | 3783 | | CALC_MCF_GAS | 1097 | | CASING_PRESS | 1954 | | GRAVITY_OIL | 57 | | MCF_GAS | 1097 | | TUBING_PRESS | 1342 |
| | Perforation Data: | | Interval Top: | 7406 ft. | # Of Holes: | | | Interval Bottom: | 11775 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 336 |
| Total Gas Produced (MCF) | 2939 |
| GOR | 8747 |
| GOR Determination | BOE |
| Average BOE per Day | 2.294 |
| Average MCFE per Day | 13.299 |
| Federal Financial Assurance | i | |
|
|
