COGIS - WELL SCOUT CARD

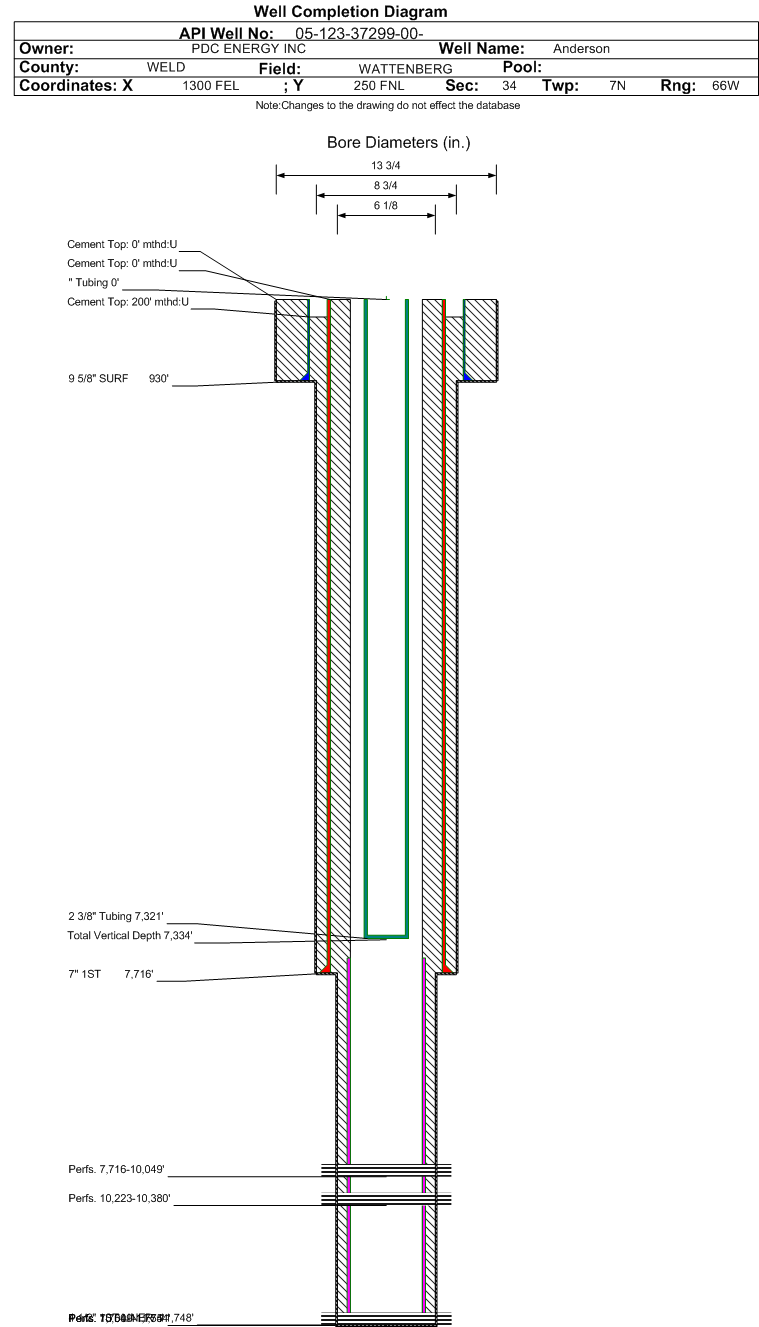

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-37299
Well Classification: OW Status: PA - 4/25/2025
Well Name/No:Anderson #34R-403
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PAStatus Date4/25/2025
FacilityID:432819LocationID:432817
County:WELD #123Location:NENE 34 7N66W 6
Field:WATTENBERG - #90750Elevation:4895 ft.
Planned Location:250FNL  1300 FELLat/Long: 40.538040 / -104.758930Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.538050 / -104.758930Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 2/9/2014
End Date: 2/11/2014
Reported: 2/13/2014
Days to report: 2
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 4/25/2025             Measured TD: 11754 ft.    Vertical TD: 7334 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 4/25/2025
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:5/9/2015
Proposed Top PZ Location:Sec:34 Twp: 7N 66W Footage: 734 FNL  1481 FEL
Bottom Hole Location:Sec:34 Twp: 7N 66W Footage: 500 FSL  1105 FEL
Proposed Depth/Form:11787 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 875 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 830, Top: 0 ft., Bottom: 875 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7899 ft., Weight: 26 , Citings Type: PLANNED
Cement:Sacks: 650, Top: 500 ft., Bottom: 7899 ft.
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6585 ft., Depth: 11787 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:

Wellbore Completed
Completion Date:1/4/2014
Spud Date:12/24/2013Spud Date Is:ACTUAL
Measured TD:11754 ft.Measured PB depth:11746 ft.
True Vertical TD:7334 ft.True Vertical PB depth:7334 ft.
Top PZ Location:Sec:34 Twp: 7N 66WFootage: 803 FNL  1482 FEL
Bottom Hole Location:Sec:34 Twp: 7N 66WFootage: 501 FSL  1125 FEL
Log Types:CBL, MWD
Casing:String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 930 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 0 ft., Bottom: 930 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7716 ft., Weight: 26 , Citings Type: ACTUAL
Cement:Sacks: 616, Top: 200 ft., Bottom: 7716 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7544 ft., Depth: 11750 ft., Weight: 13.5 , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
PARKMAN3763 ft.
SUSSEX4349 ft.
SHANNON4982 ft.
SHARON SPRINGS6945 ft.
NIOBRARA7097 ft.
FORT HAYS7675 ft.
CODELL10049 ft.
CARLILE10223 ft.

Formation CARL                     Formation Classification:  OW                     Status:  CM - 7/25/2017                 Interval Top: 10223 ft.    Interval Bottom: 10380 ft.

 Completed Information for Formation CARLILE
1st Production Date:N/AChoke Size:
Formation Name:CARLILECommingled:Yes
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Type:
Treatment Date:8/14/2017Treatment End Date:N/A
Treatment Summary:Completed Depths: 10,223' - 10,380'
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CARL.
Perforation Data:
Interval Top:10223 ft.# Of Holes:
Interval Bottom:10380 ft.Hole Size:

Formation CODL                     Formation Classification:  OW                     Status:  CM - 7/25/2017                 Interval Top: 10049 ft.    Interval Bottom: 11754 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Type:
Treatment Date:8/14/2017Treatment End Date:N/A
Treatment Summary:Completed Depths: 10,049' - 10,223' & 10,380' - 11,754'
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:10049 ft.# Of Holes:
Interval Bottom:11754 ft.Hole Size:

Formation CLCDFH                 Formation Classification:  OW                 Status:  AB - 4/25/2025                 Interval Top: 7833 ft.    Interval Bottom: 11663 ft.

 Completed Information for Formation CARLILE-CODELL-FORT HAYS
1st Production Date:3/4/2014Choke Size:
Formation Name:CARLILE-CODELL-FORT HAYSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:2/10/2014Treatment End Date:2/11/2014
Treatment Summary:25 Stage Sliding Sleeve, Swell Packer set at 7750' Total Fluid: 70,036 bbls Slickwater Fluid: 19,238 bbls Gel Fluid: 50,798 bbls Total Proppant: 3,855,760 lbs Silica Proppant: 3,855,760 lbs Method for determining flowback volumes: Measuring flowback tank volume
Total fluid used in treatment (bbls):70036Max pressure during treatment (psi):7775
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.34
Type Of gas:Number Of staged intervals:25
Total acid used in treatment (bbls):Min frac gradient (psi/ft):1.01
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):8942
Fresh water used in treatment (bbls):70036Disposition method For flowback:DISPOSAL
Total proppant used (lbs):3855760Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 75
BBLS_OIL 143
BTU_GAS 1303
CALC_BBLS_H2O 75
CALC_BBLS_OIL 143
CALC_GOR 2916
CALC_MCF_GAS 417
CASING_PRESS 1687
GRAVITY_OIL 44
MCF_GAS 417
TUBING_PRESS 667
Perforation Data:
Interval Top:7833 ft.# Of Holes:100
Interval Bottom:11663 ft.Hole Size:

Formation FTHYS                   Formation Classification:  OW                   Status:  CM - 7/25/2017                 Interval Top: 7716 ft.    Interval Bottom: 10049 ft.

 Completed Information for Formation FORT HAYS
1st Production Date:N/AChoke Size:
Formation Name:FORT HAYSCommingled:Yes
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Type:
Treatment Date:8/14/2017Treatment End Date:N/A
Treatment Summary:Completed Depths: 7,716' - 10,049'
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FTHYS.
Perforation Data:
Interval Top:7716 ft.# Of Holes:
Interval Bottom:10049 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/25/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
09/13/2028
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)53
GOR
GOR DeterminationMCFE
Average BOE per Day0.025
Average MCFE per Day0.147

 Federal Financial Assurance  i

 Tribal Well  i No
