Wellbore #00 Wellbore Classification: OW Status: TA - 3/12/2025 Measured TD: 11740 ft. Vertical TD: 7248 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW TA - 3/12/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/9/2015 | | Proposed Top PZ Location: | Sec:34 Twp: 7N 66W | Footage: 821 FNL 2144 FEL | | Bottom Hole Location: | Sec:34 Twp: 7N 66W | Footage: 500 FSL 1766 FEL | | Proposed Depth/Form: | 11786 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 875 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 875 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7785 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 650, Top: 500 ft., Bottom: 7785 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6578 ft., Depth: 11786 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

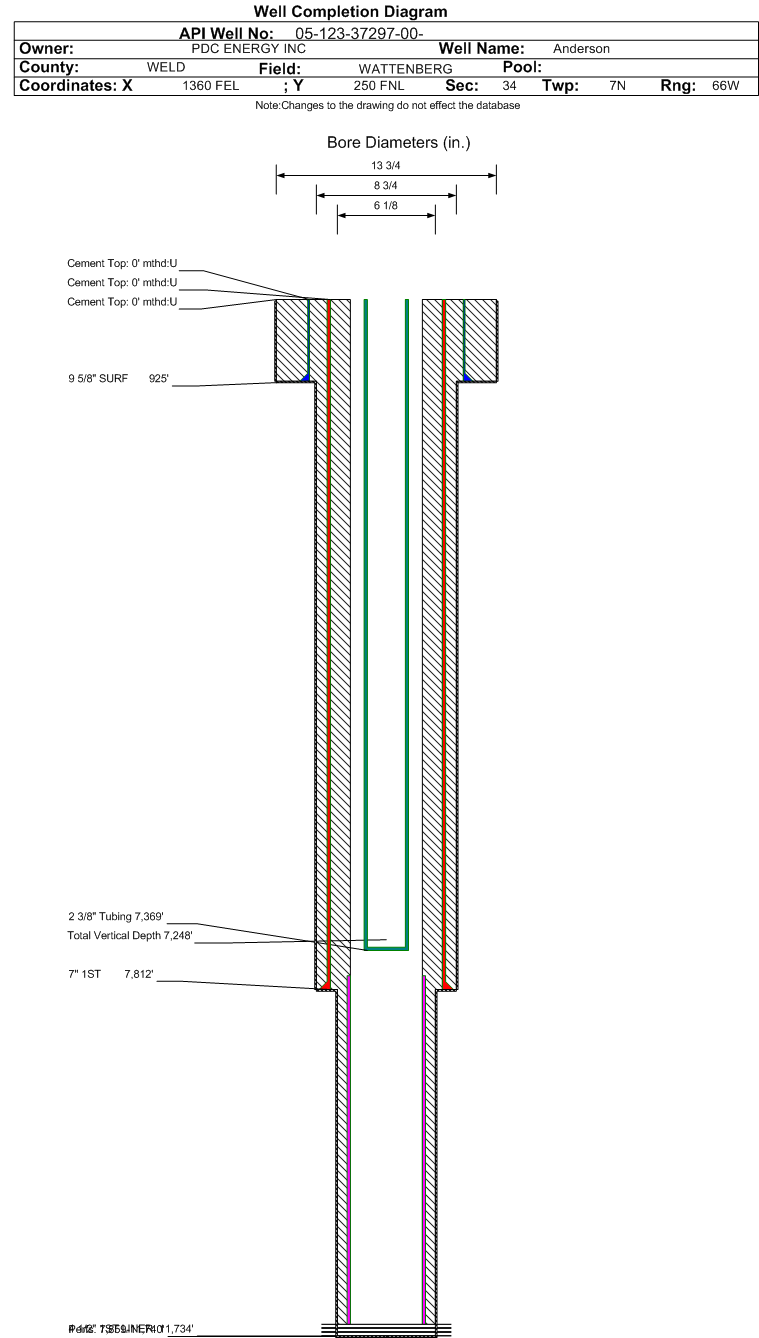

| Wellbore Completed | | Completion Date: | 12/8/2013 | | Spud Date: | 11/27/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 11740 ft. | Measured PB depth: | 11732 ft. | | True Vertical TD: | 7248 ft. | True Vertical PB depth: | 7248 ft. | | Top PZ Location: | Sec:34 Twp: 7N 66W | Footage: 925 FNL 2137 FEL | | Bottom Hole Location: | Sec:34 Twp: 7N 66W | Footage: 500 FSL 1767 FEL | | Log Types: | CBL, MWD | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 925 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 760, Top: 0 ft., Bottom: 925 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7812 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 644, Top: 0 ft., Bottom: 7812 ft., Determination Method: VISU | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7655 ft., Depth: 11736 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3799 ft. | | | | | SUSSEX | 4385 ft. | | | | | SHANNON | 5034 ft. | | | | | SHARON SPRINGS | 6945 ft. | | | | | NIOBRARA | 7129 ft. | | | |
Formation NBRR Formation Classification: OW Status: TA - 3/12/2025 Interval Top: 7859 ft. Interval Bottom: 11740 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/3/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/7/2014 | Treatment End Date: | 2/8/2014 | | Treatment Summary: | 16 Stage Sliding Sleeve, Swell Packer set at 7859'
Total Fluid: 61,291 bbls
Slickwater Fluid: 12,707 bbls
Gel Fluid: 48,584 bbls
Total Proppant: 3,680,100 lbs
Silica Proppant: 3,680,100 lbs
Method for determining flowback volume: Measuring flowback tank volumes
| | Total fluid used in treatment (bbls): | 61291 | Max pressure during treatment (psi): | 7860 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 16 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 1.02 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 4829 | | Fresh water used in treatment (bbls): | 61291 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3680100 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 74 | | BBLS_OIL | 206 | | BTU_GAS | 1260 | | CALC_BBLS_H2O | 74 | | CALC_BBLS_OIL | 206 | | CALC_GOR | 2063 | | CALC_MCF_GAS | 425 | | CASING_PRESS | 1498 | | GRAVITY_OIL | 44 | | MCF_GAS | 425 | | TUBING_PRESS | 677 |
| | Perforation Data: | | Interval Top: | 7859 ft. | # Of Holes: | 0 | | Interval Bottom: | 11740 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
12/08/2022 |
| Defined Inactive (TA ) | Y | Defined Inactive
11/12/2024 |
| Low Producing | Y | Production Period
05/2024 - 04/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
