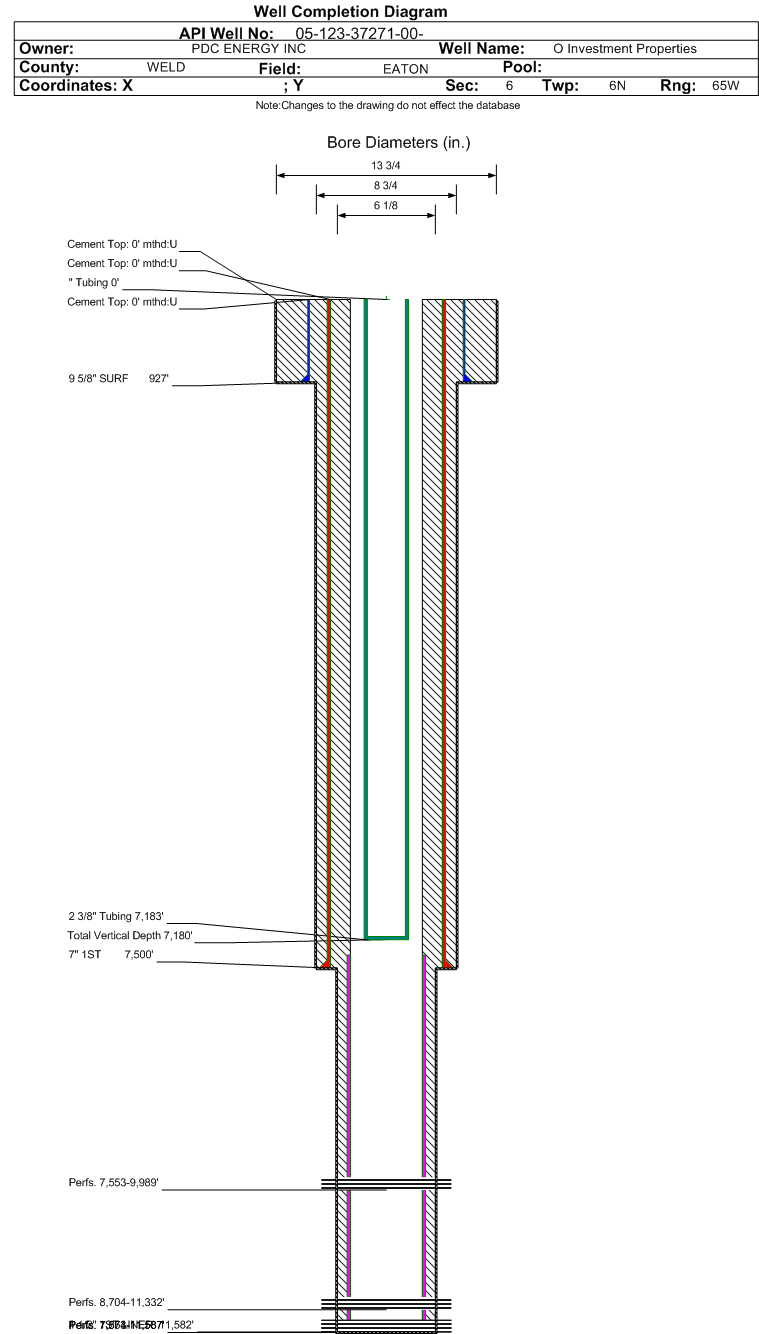

Wellbore #00 Wellbore Classification: OW Status: SI - 9/1/2024 Measured TD: 11587 ft. Vertical TD: 7180 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 9/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/29/2015 | | Proposed Top PZ Location: | Sec:6 Twp: 6N 65W | Footage: 766 FSL 154 FEL | | Bottom Hole Location: | Sec:6 Twp: 6N 65W | Footage: 500 FNL 148 FEL | | Proposed Depth/Form: | 11587 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 875 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 875 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7706 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 650, Top: 500 ft., Bottom: 7706 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6402 ft., Depth: 11587 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 11/8/2013 | | Spud Date: | 10/28/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 11587 ft. | Measured PB depth: | 11578 ft. | | True Vertical TD: | 7180 ft. | True Vertical PB depth: | 7180 ft. | | Top PZ Location: | Sec:6 Twp: 6N 65W | Footage: 766 FSL 154 FEL | | Bottom Hole Location: | Sec:6 Twp: 6N 65W | Footage: 500 FNL 148 FEL | | Log Types: | CBL, MWD (DIL in 123-11545) | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 927 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 927 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7500 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 623, Top: 0 ft., Bottom: 7500 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7352 ft., Depth: 11582 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3794 ft. | | | | | SUSSEX | 4509 ft. | | | | | SHANNON | 4994 ft. | | | | | SHARON SPRINGS | 6725 ft. | | | | | NIOBRARA | 6890 ft. | | | | | FORT HAYS | 7553 ft. | | | | | CODELL | 7874 ft. | | | | | CARLILE | 8704 ft. | | | |
Formation CARL Formation Classification: OW Status: CM - 8/28/2019 Interval Top: 8704 ft. Interval Bottom: 11332 ft.| Completed Information for Formation CARLILE | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CARLILE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 8/28/2019 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 8,704'-8,934' 11,067'-11,332' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CARL. |
| | Perforation Data: | | Interval Top: | 8704 ft. | # Of Holes: | | | Interval Bottom: | 11332 ft. | Hole Size: | |
|
Formation CODL Formation Classification: OW Status: CM - 8/28/2019 Interval Top: 7874 ft. Interval Bottom: 11587 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 8/28/2019 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 7,874'-8,704' 9,989'-11,067' 11,332'-11,587' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7874 ft. | # Of Holes: | | | Interval Bottom: | 11587 ft. | Hole Size: | |
|
Formation CLCDFH Formation Classification: OW Status: SI - 9/1/2024 Interval Top: 7553 ft. Interval Bottom: 11587 ft.| Completed Information for Formation CARLILE-CODELL-FORT HAYS | | 1st Production Date: | 12/23/2013 | Choke Size: | | | Formation Name: | CARLILE-CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/14/2013 | Treatment End Date: | 12/14/2013 | | Treatment Summary: | 16 Stage Sliding Sleeve, Swell Packer set @ 7,553'
Total Fluid: 58,631 bbls
Gel Fluid: 46,924 bbls
Slickwater Fluid: 11,707 bbls
Total Proppant: 3,674,040 lbs
Silica Proppant: 3,674,040
Method for determining flowback: measuring flowback tank volumes. | | Total fluid used in treatment (bbls): | 58631 | Max pressure during treatment (psi): | 3954 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 16 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 354 | | Fresh water used in treatment (bbls): | 58631 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3674040 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7183 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/4/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 154 | | BBLS_OIL | 193 | | BTU_GAS | 1252 | | CALC_BBLS_H2O | 154 | | CALC_BBLS_OIL | 193 | | CALC_GOR | 1368 | | CALC_MCF_GAS | 264 | | CASING_PRESS | 1714 | | GRAVITY_OIL | 46 | | MCF_GAS | 264 | | TUBING_PRESS | 753 |
| | Perforation Data: | | Interval Top: | 7553 ft. | # Of Holes: | | | Interval Bottom: | 11587 ft. | Hole Size: | |
|
Formation FTHYS Formation Classification: OW Status: CM - 8/28/2019 Interval Top: 7553 ft. Interval Bottom: 9989 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 8/28/2019 | Treatment End Date: | N/A | | Treatment Summary: | Completed Depths: 7,553'-7,874' 8,934'-9,989' | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 7553 ft. | # Of Holes: | | | Interval Bottom: | 9989 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
12/30/2025 |
| Defined Inactive (SI ) | Y | Defined Inactive
08/31/2024 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
