COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-37249		Well Classification: DA Status: PA - 7/20/2013
Well Name/No:Vigilant State #AC16-08
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:1180.10
Facility Status:PAStatus Date7/20/2013
FacilityID:432733LocationID:432731
County:WELD #123Location:SENE 16 7N63W 6
Field:WATTENBERG - #90750Elevation:4874 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2080FNL  710 FELLat/Long: 40.575700 / -104.434440Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.575699 / -104.434553Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

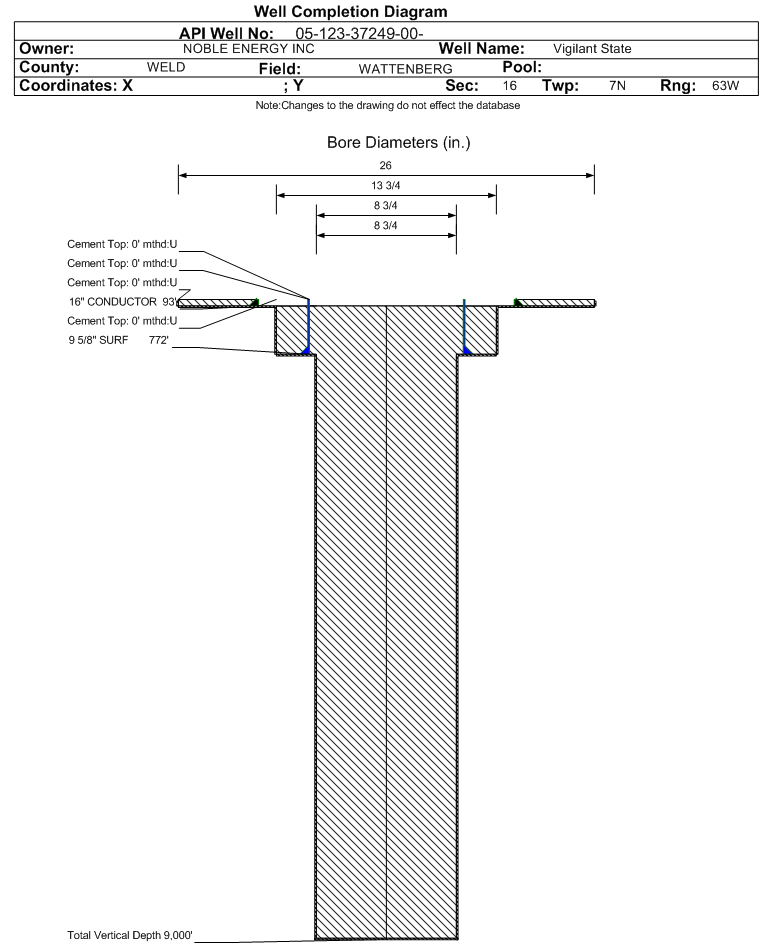

Wellbore #00             Wellbore Classification: DA             Status: PA - 7/20/2013             Measured TD: 9000 ft.    Vertical TD: 9000 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 7/20/2013
Wellbore PermitHorizontal
Permit #: Expiration Date:4/28/2015
Proposed Top PZ Location:Sec:16 Twp: 7N 63W Footage: 2063 FNL  709 FEL
Bottom Hole Location:Sec:16 Twp: 7N 63W Footage: 2063 FNL  709 FEL
Proposed Depth/Form:8983 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:STATESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: LYNS , Formation: LYONS , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 18.5 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 0 , Citings Type: PLANNED
Cement:Sacks: 6, Top: 0 ft., Bottom: 100 ft.
Wellbore Completed
Completion Date:7/17/2013
Spud Date:7/12/2013Spud Date Is:ACTUAL
Measured TD:9000 ft.Measured PB depth:
True Vertical TD:9000 ft.True Vertical PB depth:
Bottom Hole Location:Sec:16 Twp: 7N 63WFootage: 2063 FNL  709 FEL
Log Types:Mud Log w/ GR
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 93 ft., Weight: 42.05 , Citings Type: ACTUAL
Cement:Sacks: 80, Top: 0 ft., Bottom: 93 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 772 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 477, Top: 0 ft., Bottom: 772 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: , Top: , Depth: 8983 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 772 ft., Depth: 8983 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
J SAND7403 ft.
DAKOTA7677 ft.
MORRISON7806 ft.
LYONS8679 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/20/2013
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
