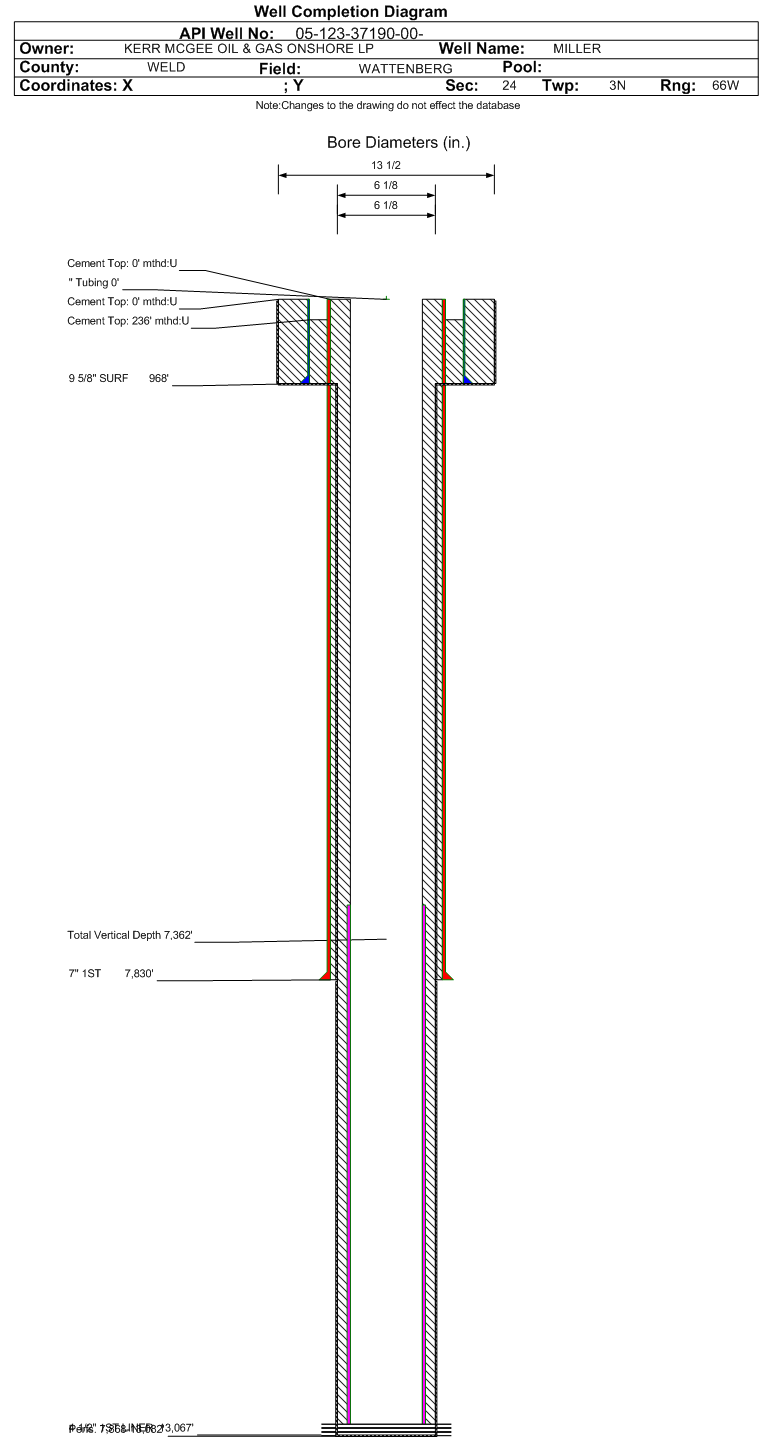

Wellbore #00 Wellbore Classification: OW Status: PR - 5/11/2015 Measured TD: 13082 ft. Vertical TD: 7362 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 5/11/2015 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/24/2015 | | Proposed Top PZ Location: | Sec:26 Twp: 3N 66W | Footage: 474 FNL 21 FEL | | Bottom Hole Location: | Sec:23 Twp: 3N 66W | Footage: 485 FNL 196 FEL | | Proposed Depth/Form: | 13035 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 925 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 925 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7869 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 7869 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6868 ft., Depth: 13035 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 12/25/2014 | | Spud Date: | 9/13/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13082 ft. | Measured PB depth: | 13067 ft. | | True Vertical TD: | 7362 ft. | True Vertical PB depth: | 7362 ft. | | Top PZ Location: | Sec:26 Twp: 3N 66W | Footage: 474 FNL 21 FEL | | Bottom Hole Location: | Sec:23 Twp: 3N 66W | Footage: 485 FNL 196 FEL | | Log Types: | CBL, MWD/LWD with GR, MUD, (DIL in API# 05-123-21335, IND in API# 05-123-07912) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 968 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 403, Top: 0 ft., Bottom: 968 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 6.125 in., Size: 7 in., Top: 0 ft., Depth: 7830 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 770, Top: 236 ft., Bottom: 7830 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6970 ft., Depth: 13067 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4674 ft. | | | | | SHARON SPRINGS | 7369 ft. | | | | | NIOBRARA | 7449 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 3/21/2015 Interval Top: 7868 ft. Interval Bottom: 13082 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/13/2015 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/17/2015 | Treatment End Date: | 2/20/2015 | | Treatment Summary: | "COMPLETED THROUGH AN OPEN HOLE LINER FROM 7868-13,082.
8,009 BBL CROSSLINK GEL, 9,729 BBL LINEAR GEL, 119,589 BBL SLICKWATER, - 137,327 BBL TOTAL FLUID
238,140# 30/50 OTTAWA/ST. PETERS, 3,889,850# 40/70 OTTAWA/ST. PETERS, - 4,127,990# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 137327 | Max pressure during treatment (psi): | 7466 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 4858 | | Fresh water used in treatment (bbls): | 137327 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4127990 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/21/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 60 | | BBLS_OIL | 63 | | BTU_GAS | 1247 | | CALC_BBLS_H2O | 60 | | CALC_BBLS_OIL | 63 | | CALC_GOR | 5873 | | CALC_MCF_GAS | 370 | | CASING_PRESS | 2200 | | GRAVITY_OIL | 57 | | MCF_GAS | 370 |
| | Perforation Data: | | Interval Top: | 7868 ft. | # Of Holes: | 0 | | Interval Bottom: | 13082 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1454 |
| Total Gas Produced (MCF) | 66755 |
| GOR | 45911 |
| GOR Determination | MCFE |
| Average BOE per Day | 35.395 |
| Average MCFE per Day | 205.270 |
| Federal Financial Assurance | i | |
|
|
