Wellbore #00 Wellbore Classification: OW Status: PR - 12/1/2019 Measured TD: 12867 ft. Vertical TD: 7290 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 12/1/2019 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 3/29/2015 | | Proposed Top PZ Location: | Sec:34 Twp: 3N 66W | Footage: 1 FSL 730 FWL | | Bottom Hole Location: | Sec:3 Twp: 2N 66W | Footage: 1 FSL 730 FWL | | Proposed Depth/Form: | 12798 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 240, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 800 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 260, Top: 0 ft., Bottom: 800 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7514 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 7514 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6494 ft., Depth: 12798 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

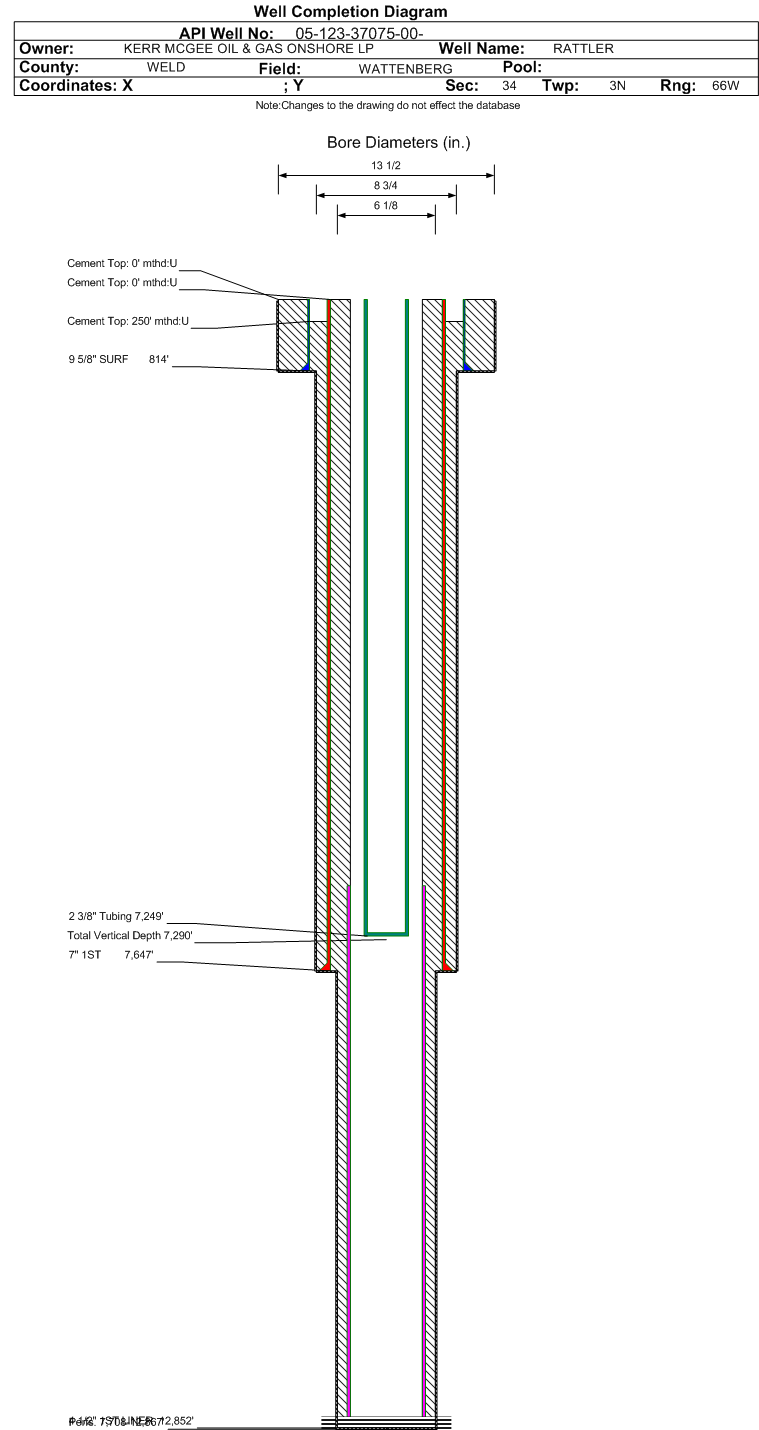

| Wellbore Completed | | Completion Date: | 8/12/2013 | | Spud Date: | 5/25/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 12867 ft. | Measured PB depth: | 12843 ft. | | True Vertical TD: | 7290 ft. | True Vertical PB depth: | 7291 ft. | | Top PZ Location: | Sec:3 Twp: 2N 66W | Footage: 43 FNL 724 FWL | | Bottom Hole Location: | Sec:3 Twp: 2N 66W | Footage: 26 FSL 744 FWL | | Log Types: | CBL, GR, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 814 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 281, Top: 0 ft., Bottom: 814 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7647 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 759, Top: 250 ft., Bottom: 7647 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6678 ft., Depth: 12852 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7117 ft. | | | | | NIOBRARA | 7225 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 12/1/2019 Interval Top: 7708 ft. Interval Bottom: 12867 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/10/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/30/2013 | Treatment End Date: | 11/1/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7708-12867.
37 BBL ACID,18005 BBL CROSSLINK GEL,3159 BBL LINEAR GEL,79431 BBL SLICKWATER,100632 BBL TOTAL FLUID.
539680# 30/50 OTTAWA/ST. PETERS SAND,2130236# 40/70 OTTAWA/ST. PETERS SAND,2669916# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 100632 | Max pressure during treatment (psi): | 7396 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 8698 | | Fresh water used in treatment (bbls): | 100632 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2669916 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7249 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/18/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 198 | | BTU_GAS | 1257 | | CALC_BBLS_OIL | 198 | | CALC_GOR | 2616 | | CALC_MCF_GAS | 518 | | CASING_PRESS | 2664 | | GRAVITY_OIL | 50 | | MCF_GAS | 518 | | TUBING_PRESS | 2233 |
| | Perforation Data: | | Interval Top: | 7708 ft. | # Of Holes: | 0 | | Interval Bottom: | 12867 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3190 |
| Total Gas Produced (MCF) | 43062 |
| GOR | 13499 |
| GOR Determination | BOE |
| Average BOE per Day | 28.958 |
| Average MCFE per Day | 167.951 |
| Federal Financial Assurance | i | |
|
|
