Wellbore #00 Wellbore Classification: OW Status: PR - 1/1/2020 Measured TD: 13637 ft. Vertical TD: 7427 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 1/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 2/27/2015 | | Proposed Top PZ Location: | Sec:25 Twp: 3N 66W | Footage: 360 FNL 2370 FWL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 1 FNL 2370 FWL | | Proposed Depth/Form: | 12466 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 925 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 925 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7964 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 820, Top: 0 ft., Bottom: 7964 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6963 ft., Depth: 13590 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

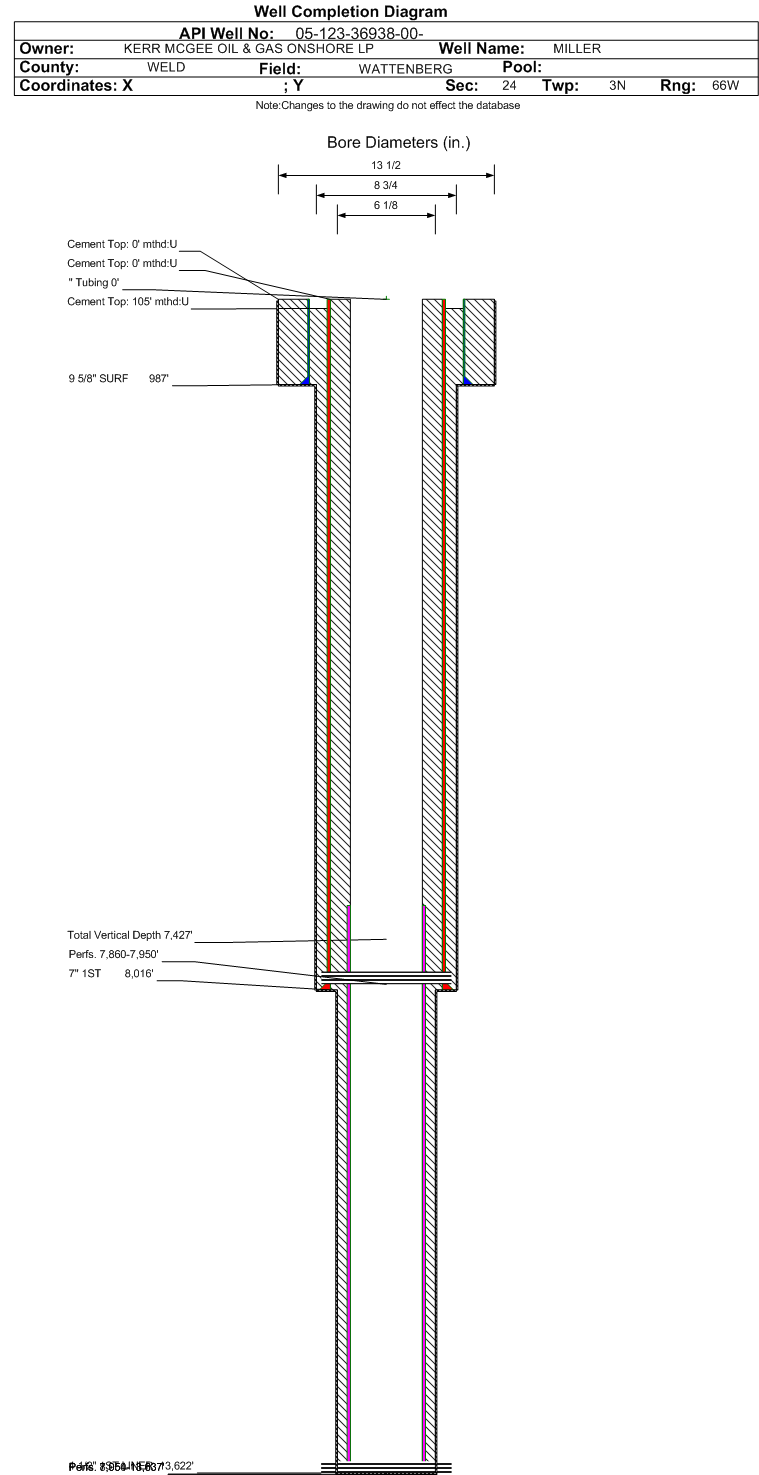

| Wellbore Completed | | Completion Date: | 11/15/2014 | | Spud Date: | 9/4/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13637 ft. | Measured PB depth: | 13613 ft. | | True Vertical TD: | 7427 ft. | True Vertical PB depth: | 7427 ft. | | Top PZ Location: | Sec:25 Twp: 3N 66W | Footage: 314 FNL 2477 FWL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 1 FNL 2370 FWL | | Log Types: | CBL, MWD with GR, MUD, (IND in API# 05-123-16870) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 987 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 382, Top: 0 ft., Bottom: 987 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8016 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 777, Top: 105 ft., Bottom: 8016 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7034 ft., Depth: 13622 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4637 ft. | | | | | SHARON SPRINGS | 7335 ft. | | | | | NIOBRARA | 7411 ft. | | | | | FORT HAYS | 7860 ft. | | | | | CODELL | 7950 ft. | | | |
Formation CD-FH Formation Classification: OW Status: PR - 1/1/2020 Interval Top: 8054 ft. Interval Bottom: 13637 ft.| Completed Information for Formation CODELL-FORT HAYS | | 1st Production Date: | 3/21/2015 | Choke Size: | | | Formation Name: | CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/3/2015 | Treatment End Date: | 3/4/2015 | | Treatment Summary: | "COMPLETED THROUGH AN OPEN HOLE LINER FROM 8054-13,637.
103,701 BBL SLICKWATER, - 103,701 BBL TOTAL FLUID
1,509,060# 30/50 OTTOWA, 1,508,000# 40/70 OTTOWA, - 3,017,060# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 103701 | Max pressure during treatment (psi): | 7102 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 28 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.74 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 8 | | Fresh water used in treatment (bbls): | 103701 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3017060 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/25/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 112 | | BBLS_OIL | 132 | | BTU_GAS | 1247 | | CALC_BBLS_H2O | 112 | | CALC_BBLS_OIL | 132 | | CALC_GOR | 5022 | | CALC_MCF_GAS | 663 | | CASING_PRESS | 1400 | | GRAVITY_OIL | 57 | | MCF_GAS | 663 |
| | Perforation Data: | | Interval Top: | 8054 ft. | # Of Holes: | 0 | | Interval Bottom: | 13637 ft. | Hole Size: | |
|
Formation CODL Formation Classification: OW Status: CM - 1/6/2017 Interval Top: 7950 ft. Interval Bottom: 13637 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7950 ft. | # Of Holes: | | | Interval Bottom: | 13637 ft. | Hole Size: | |
|
Formation FTHYS Formation Classification: OW Status: CM - 1/6/2017 Interval Top: 7860 ft. Interval Bottom: 7950 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 7860 ft. | # Of Holes: | | | Interval Bottom: | 7950 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2276 |
| Total Gas Produced (MCF) | 59879 |
| GOR | 26308 |
| GOR Determination | MCFE |
| Average BOE per Day | 34.539 |
| Average MCFE per Day | 200.335 |
| Federal Financial Assurance | i | |
|
|
