Wellbore #00 Wellbore Classification: OW Status: PR - 9/1/2025 Measured TD: 13355 ft. Vertical TD: 7305 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 2/27/2015 | | Proposed Top PZ Location: | Sec:25 Twp: 3N 66W | Footage: 360 FNL 1400 FWL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 1 FNL 1400 FWL | | Proposed Depth/Form: | 12269 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 480, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 925 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 925 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7806 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 800, Top: 0 ft., Bottom: 7806 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6806 ft., Depth: 13431 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

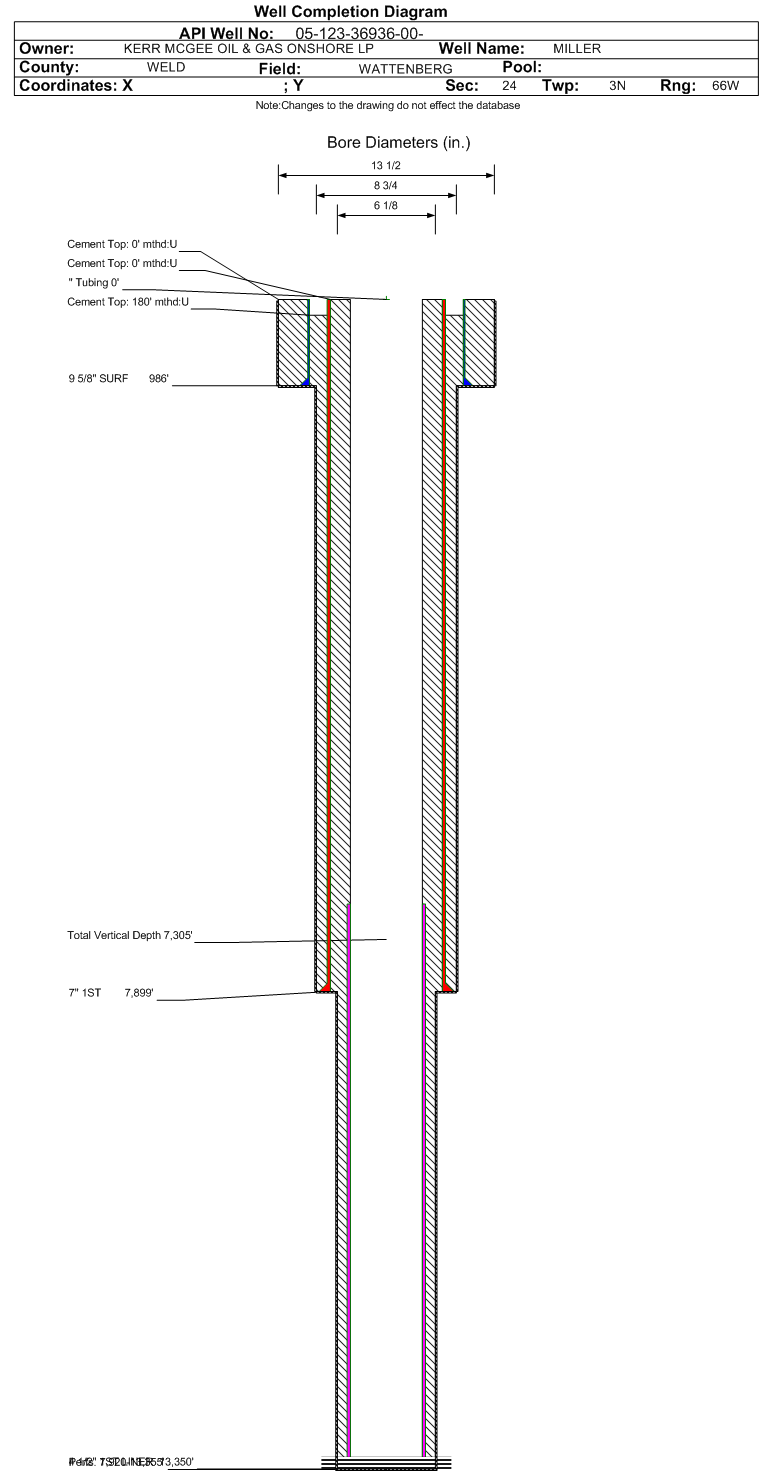

| Wellbore Completed | | Completion Date: | 11/25/2014 | | Spud Date: | 9/2/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 13355 ft. | Measured PB depth: | 13342 ft. | | True Vertical TD: | 7305 ft. | True Vertical PB depth: | 7305 ft. | | Top PZ Location: | Sec:25 Twp: 3N 66W | Footage: 429 FNL 1397 FWL | | Bottom Hole Location: | Sec:24 Twp: 3N 66W | Footage: 251 FNL 1349 FWL | | Log Types: | CBL, MWD with GR, (IND in API# 05-123-16870) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 986 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 387, Top: 0 ft., Bottom: 986 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7899 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 760, Top: 180 ft., Bottom: 7899 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6901 ft., Depth: 13350 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4691 ft. | | | | | SHARON SPRINGS | 7398 ft. | | | | | NIOBRARA | 7485 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 9/1/2025 Interval Top: 7920 ft. Interval Bottom: 13355 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/14/2015 | Choke Size: | 14.000 in. | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/28/2015 | Treatment End Date: | 3/2/2015 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7920-13355.
48 BBL ACID, 7438 BBL CROSSLINK GEL, 9129 BBL LINEAR GEL, 134033 BBL SLICKWATER, 150648 BBL TOTAL FLUID.
2732660# 30/50 OTTOWA, 1759500# 40/70 OTTOWA, 4492160# TOTAL SAND. | | Total fluid used in treatment (bbls): | 150648 | Max pressure during treatment (psi): | 7319 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 48 | Min frac gradient (psi/ft): | 0.96 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 1510 | | Fresh water used in treatment (bbls): | 150600 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4492160 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/20/2015 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 292 | | BBLS_OIL | 99 | | BTU_GAS | 1247 | | CALC_BBLS_H2O | 292 | | CALC_BBLS_OIL | 99 | | CALC_GOR | 6778 | | CALC_MCF_GAS | 671 | | CASING_PRESS | 1500 | | GRAVITY_OIL | 57 | | MCF_GAS | 671 |
| | Perforation Data: | | Interval Top: | 7920 ft. | # Of Holes: | 0 | | Interval Bottom: | 13355 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 4092 |
| Total Gas Produced (MCF) | 74420 |
| GOR | 18186 |
| GOR Determination | MCFE |
| Average BOE per Day | 46.487 |
| Average MCFE per Day | 269.622 |
| Federal Financial Assurance | i | |
|
|
