Wellbore #00 Wellbore Classification: LO Status: PA - 7/23/2014 Measured TD: 16399 ft. Vertical TD: 6837 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: LO PA - 7/23/2014 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 2/3/2015 | | Proposed Top PZ Location: | Sec:11 Twp: 7N 64W | Footage: 1005 FSL 836 FWL | | Bottom Hole Location: | Sec:12 Twp: 7N 64W | Footage: 990 FSL 535 FEL | | Proposed Depth/Form: | 16410 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 640, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 18.5 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 750 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 750 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7247 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 490, Top: , Bottom: 7247 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7097 ft., Depth: 16410 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 6/7/2013 | | Spud Date: | 5/20/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 16399 ft. | Measured PB depth: | 16380 ft. | | True Vertical TD: | 6837 ft. | True Vertical PB depth: | 6837 ft. | | Top PZ Location: | Sec:11 Twp: 7N 64W | Footage: 1005 FSL 836 FWL | | Bottom Hole Location: | Sec:12 Twp: 7N 64W | Footage: 990 FSL 535 FEL | | Log Types: | CBL/Mud/Gamma

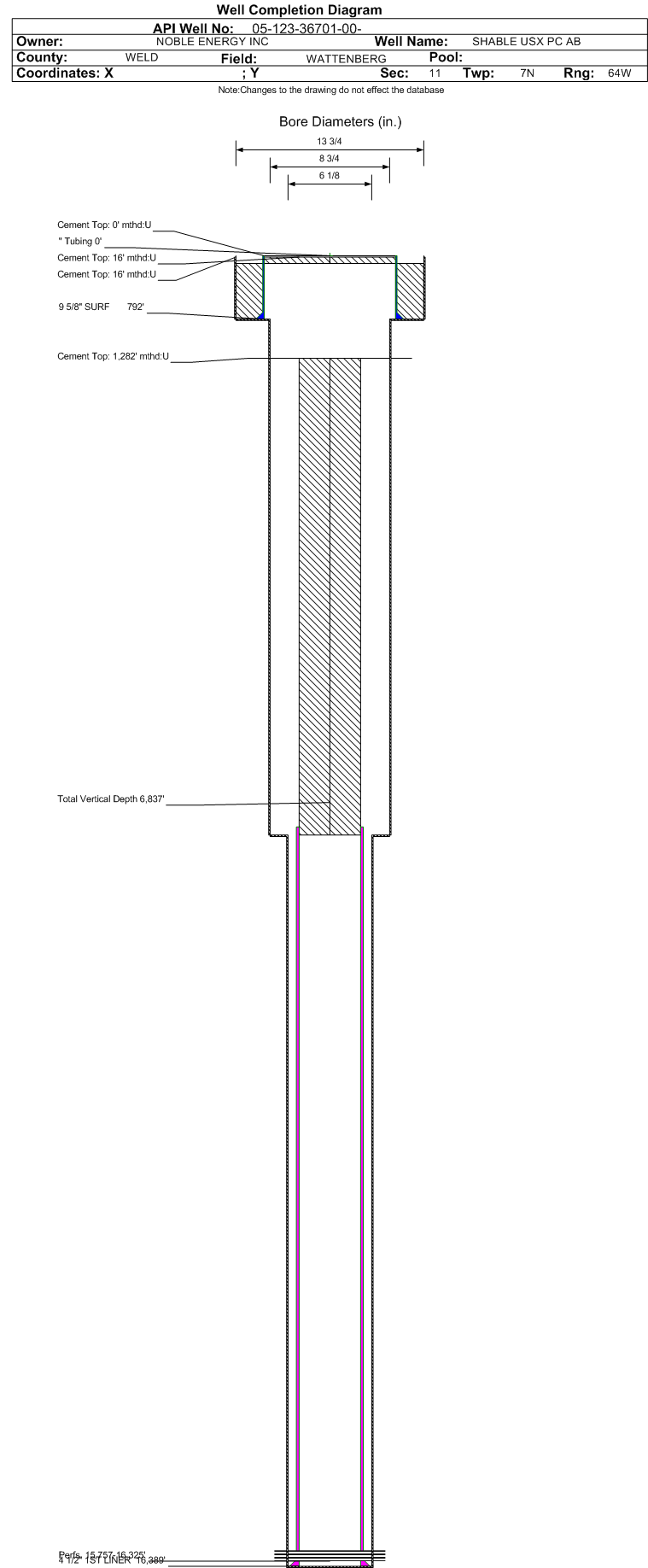

Shut In Well | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 96 ft., Weight: 49.09 , Citings Type: ACTUAL | | Cement: | Sacks: 80, Top: 16 ft., Bottom: 96 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 792 ft., Weight: 36.00 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 16 ft., Bottom: 792 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7245 ft., Weight: 26.00 , Citings Type: ACTUAL | | Cement: | Sacks: 490, Top: 1282 ft., Bottom: 7245 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7143 ft., Depth: 16389 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 0 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1166 ft. | | | | | PARKMAN | 3711 ft. | | | | | SUSSEX | 4404 ft. | | | | | SHANNON | 5136 ft. | | | | | NIOBRARA | 7124 ft. | | | |
Formation NBRR Formation Classification: LO Status: AB - 7/23/2014 Interval Top: 15757 ft. Interval Bottom: 16325 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/26/2013 | Treatment End Date: | 8/26/2013 | | Treatment Summary: | 2 stages: Frac'd the Niobrara w/ 314869 gals of Vistar and Slick Water with 298885#'s of Ottawa sand.
Well shut in no test data. | | Total fluid used in treatment (bbls): | 7496 | Max pressure during treatment (psi): | 7988 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 2 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | 325 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 7171 | Disposition method For flowback: | | | Total proppant used (lbs): | 298885 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 15757 ft. | # Of Holes: | 0 | | Interval Bottom: | 16325 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/23/2014 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
