COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-36610		Well Classification: OW Status: PA - 9/3/2024
Well Name/No:Land JG #31-32D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/3/2024
FacilityID:431447LocationID:431392
Municipality/County:HUDSON / WELD #123Location:LOT2 31 2N64W 6
Field:WATTENBERG - #90750Elevation:4933 ft.
Basin:DENVER (DJ) BASIN
Planned Location:269FSL  909 FWLLat/Long: 40.088211 / -104.599425Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.088214 / -104.599425Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 9/3/2024             Measured TD: 7978 ft.    Vertical TD: 7341 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 9/3/2024
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:1/24/2015
Proposed Top PZ Location:Sec:31 Twp: 2N 64W Footage: 2693 FSL  0 FWL
Bottom Hole Location:Sec:31 Twp: 2N 64W Footage: 2693 FSL  0 FWL
Proposed Depth/Form:7988 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1009 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 466, Top: 0 ft., Bottom: 1009 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7988 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 700, Top: 4247 ft., Bottom: 7988 ft.

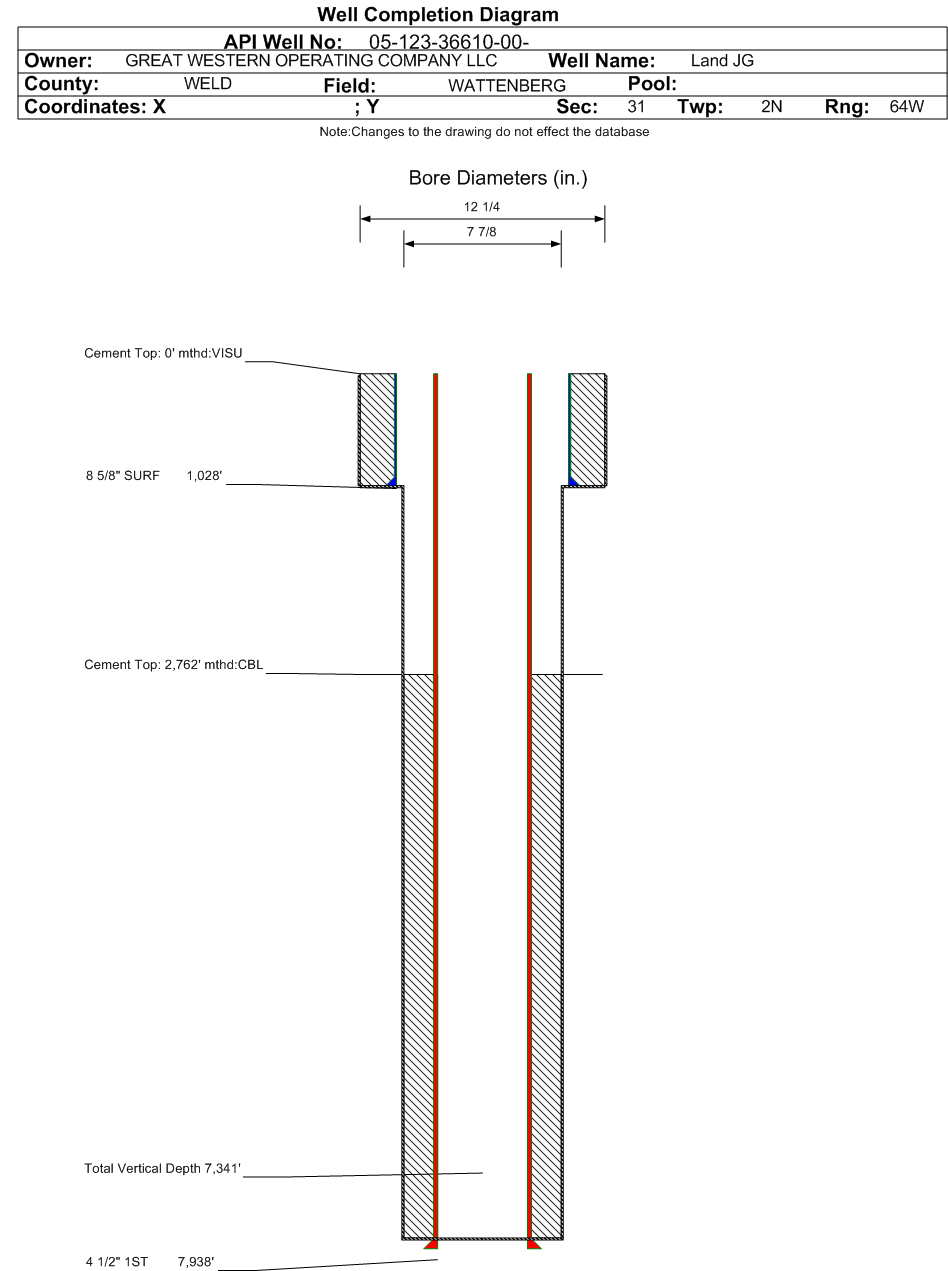

Wellbore Completed
Completion Date:3/26/2013
Spud Date:3/21/2013Spud Date Is:ACTUAL
Measured TD:7978 ft.Measured PB depth:7923 ft.
True Vertical TD:7341 ft.True Vertical PB depth:7290 ft.
Bottom Hole Location:Sec:36 Twp: 2N 65WFootage: 2685 FSL  21 FEL
Log Types:CBL, Composite
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1028 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 670, Top: 0 ft., Bottom: 1028 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7938 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 595, Top: 2762 ft., Bottom: 7938 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4519 ft.4682 ft.NN
SUSSEX5121 ft.5217 ft.NN
SHANNON5750 ft.5810 ft.NN
SHARON SPRINGS7486 ft.NN
NIOBRARA7572 ft.NN
FORT HAYS7768 ft.NN
CODELL7790 ft.NN
CARLILE7808 ft.NN
GREENHORN7866 ft.NN
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/03/2024
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
09/30/2024
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
