 Surface Location
 API# 05-123-36608		Well Classification: OW Status: PA - 8/7/2025
Well Name/No:Land JG #31-12D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/7/2025
FacilityID:431444LocationID:431392
Municipality/County:HUDSON / WELD #123Location:LOT2 31 2N64W 6
Field:WATTENBERG - #90750Elevation:4933 ft.
Basin:DENVER (DJ) BASIN
Planned Location:329FSL  909 FWLLat/Long: 40.088375 / -104.599425Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.088378 / -104.599425Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 8/7/2025             Measured TD: 7869 ft.    Vertical TD: 7324 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 8/7/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:1/24/2015
Proposed Top PZ Location:Sec:31 Twp: 2N 64W Footage: 2683 FSL  1157 FWL
Bottom Hole Location:Sec:31 Twp: 2N 64W Footage: 2683 FSL  1157 FWL
Proposed Depth/Form:7910 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1011 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 467, Top: 0 ft., Bottom: 1011 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7910 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 690, Top: 4220 ft., Bottom: 7910 ft.
Wellbore Completed
Completion Date:3/10/2013
Spud Date:3/5/2013Spud Date Is:ACTUAL
Measured TD:7869 ft.Measured PB depth:7834 ft.
True Vertical TD:7324 ft.True Vertical PB depth:7289 ft.
Bottom Hole Location:Sec:31 Twp: 2N 64WFootage: 2636 FSL  1155 FWL
Log Types:CBL, Composite

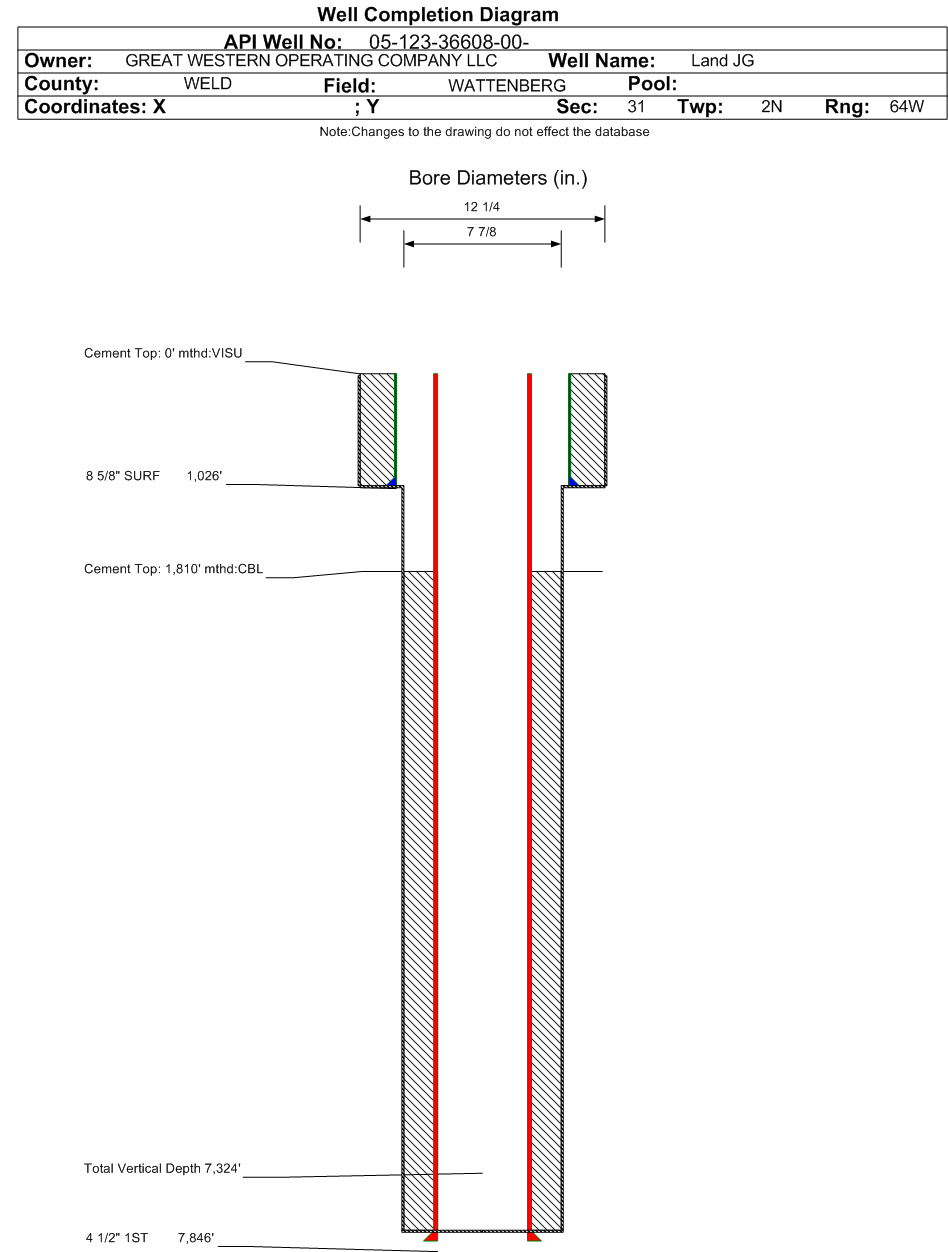

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1026 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 670, Top: 0 ft., Bottom: 1026 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7846 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 560, Top: 1810 ft., Bottom: 7846 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4415 ft.4471 ft.NN
SUSSEX5032 ft.5138 ft.NN
SHANNON5723 ft.5740 ft.NN
SHARON SPRINGS7310 ft.NN
NIOBRARA7455 ft.NN
FORT HAYS7701 ft.NN
CODELL7723 ft.NN
CARLILE7738 ft.NN
GREENHORN7795 ft.NN
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/07/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
09/30/2024
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
