COGIS - WELL SCOUT CARD

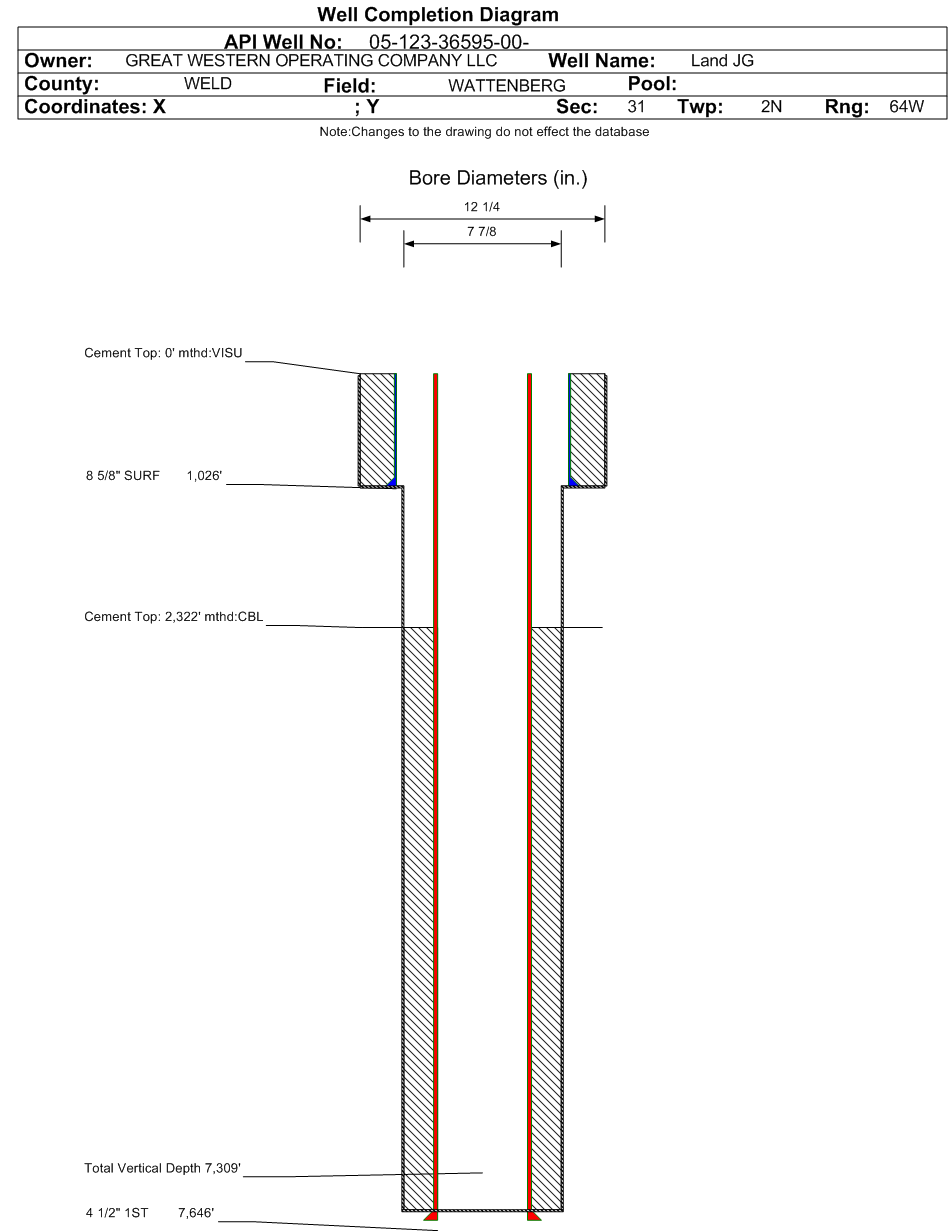

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-36595		Well Classification: OW Status: PA - 11/2/2021
Well Name/No:Land JG #31-20D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/2/2021
FacilityID:431404LocationID:431392
Municipality/County:HUDSON / WELD #123Location:LOT2 31 2N64W 6
Field:WATTENBERG - #90750Elevation:4933 ft.
Basin:DENVER (DJ) BASIN
Planned Location:269FSL  929 FWLLat/Long: 40.088211 / -104.599353Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.088214 / -104.599353Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/2/2021             Measured TD: 7688 ft.    Vertical TD: 7309 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/2/2021
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:1/16/2015
Proposed Top PZ Location:Sec:31 Twp: 2N 67W Footage: 1373 FSL  2477 FWL
Bottom Hole Location:Sec:31 Twp: 2N 67W Footage: 1373 FSL  2477 FWL
Proposed Depth/Form:7729 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1005 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 464, Top: 0 ft., Bottom: 1005 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7729 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 683, Top: 4078 ft., Bottom: 7729 ft.
Wellbore Completed
Completion Date:2/22/2013
Spud Date:2/18/2013Spud Date Is:ACTUAL
Measured TD:7688 ft.Measured PB depth:7634 ft.
True Vertical TD:7309 ft.True Vertical PB depth:7258 ft.
Bottom Hole Location:Sec:31 Twp: 2N 67WFootage: 1373 FSL  2477 FWL
Log Types:CBL, Composite
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1026 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 670, Top: 0 ft., Bottom: 1026 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7646 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 610, Top: 2322 ft., Bottom: 7646 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3991 ft.4414 ft.NN
SUSSEX4470 ft.4997 ft.NN
SHANNON5125 ft.5616 ft.NN
SHARON SPRINGS6723 ft.NN
NIOBRARA6844 ft.NN
FORT HAYS7503 ft.NN
CODELL7526 ft.NN
CARLILE7541 ft.NN
GREENHORN7600 ft.NN
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/02/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
