Wellbore #00 Wellbore Classification: OW Status: AB - 6/12/2024 Measured TD: 7796 ft. Vertical TD: 7397 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 6/12/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 1/16/2015 | | Proposed Top PZ Location: | Sec:31 Twp: 2N 64W | Footage: 2009 FSL 1810 FWL | | Bottom Hole Location: | Sec:31 Twp: 2N 64W | Footage: 2009 FSL 1810 FWL | | Proposed Depth/Form: | 7765 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: N/2SW/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1001 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 463, Top: 0 ft., Bottom: 1001 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7765 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 685, Top: 4100 ft., Bottom: 7765 ft. |
| | |

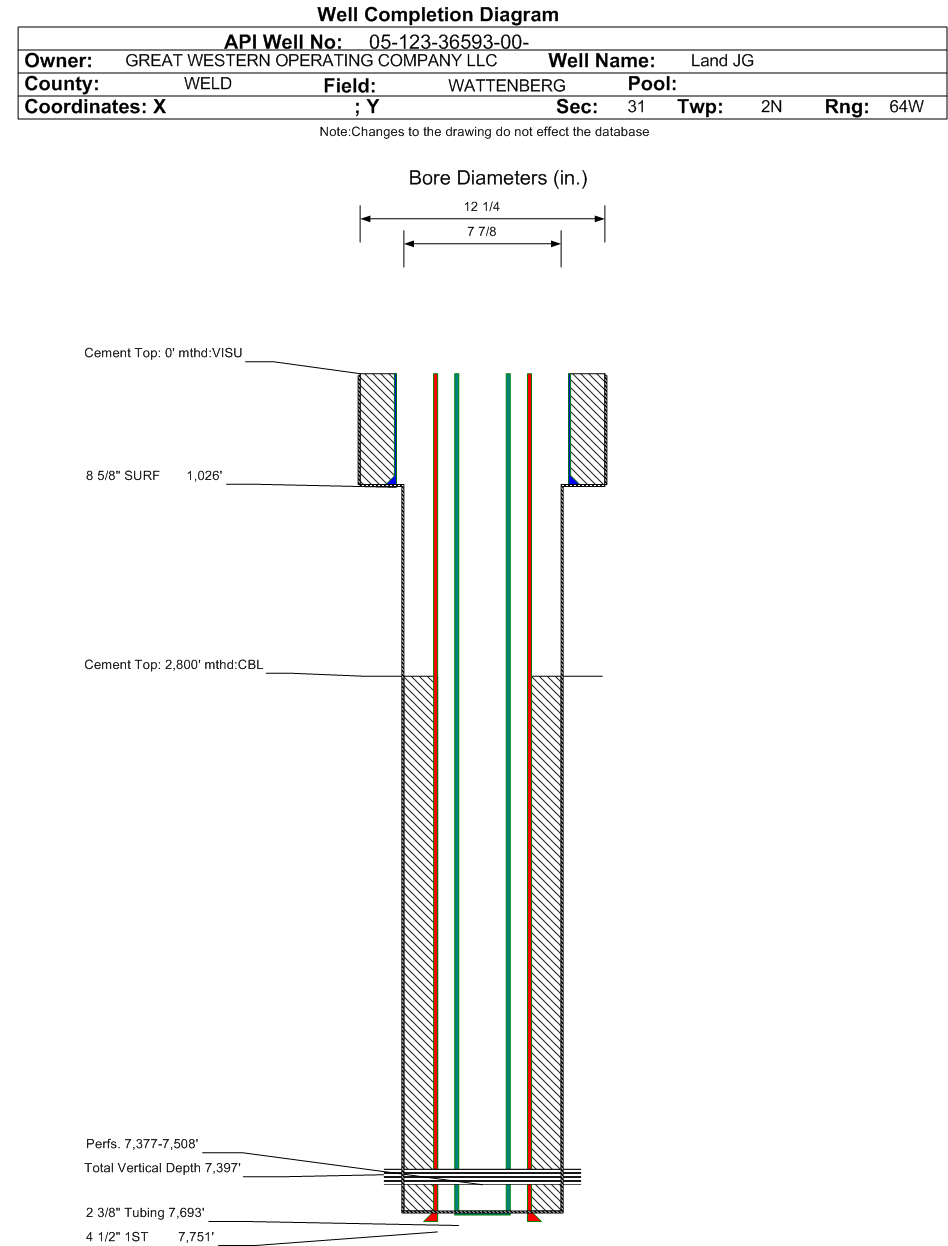

| Wellbore Completed | | Completion Date: | 2/7/2013 | | Spud Date: | 2/2/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 7796 ft. | Measured PB depth: | 7739 ft. | | True Vertical TD: | 7397 ft. | True Vertical PB depth: | 7340 ft. | | Top PZ Location: | Sec:31 Twp: 2N 64W | Footage: 2047 FSL 1824 FWL | | Bottom Hole Location: | Sec:31 Twp: 2N 64W | Footage: 2048 FSL 1814 FWL | | Log Types: | CBL, Composite | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1026 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 1026 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7751 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 580, Top: 2180 ft., Bottom: 7751 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4282 ft. | 4393 ft. | N | N | | SUSSEX | 4873 ft. | 4981 ft. | N | N | | SHANNON | 5523 ft. | 5605 ft. | N | N | | SHARON SPRINGS | 7157 ft. | | N | N | | NIOBRARA | 7276 ft. | | N | N | | FORT HAYS | 7537 ft. | | N | N | | CODELL | 7566 ft. | | N | N | | CARLILE | 7579 ft. | | N | N | | GREENHORN | 7626 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: AB - 6/12/2024 Interval Top: 7377 ft. Interval Bottom: 7508 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 7/9/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/19/2013 | Treatment End Date: | 4/19/2013 | | Treatment Summary: | 24 bbls 15% HCL Acid; 230,060 # 40/70 Sand; 8000 # 20/40 Sand; 6,664 bbls Gelled Fluid; Flowback determined from well test separator
| | Total fluid used in treatment (bbls): | 6688 | Max pressure during treatment (psi): | 3273 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 24 | Min frac gradient (psi/ft): | 0.90 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 1270 | | Fresh water used in treatment (bbls): | 6664 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 238060 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7693 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/12/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 13 | | BBLS_OIL | 28 | | BTU_GAS | 1386 | | CALC_BBLS_H2O | 13 | | CALC_BBLS_OIL | 28 | | CALC_GOR | 107 | | CALC_MCF_GAS | 3 | | CASING_PRESS | 765 | | GRAVITY_OIL | 43 | | MCF_GAS | 3 | | TUBING_PRESS | 740 |
| | Perforation Data: | | Interval Top: | 7377 ft. | # Of Holes: | 54 | | Interval Bottom: | 7508 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/12/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
02/14/2024 |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
