Wellbore #00 Wellbore Classification: OW Status: DG - 3/31/2013 Measured TD: 9800 ft. Vertical TD: 5649 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW DG - 3/31/2013 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/16/2015 | | Proposed Top PZ Location: | Sec:24 Twp: 10N 58W | Footage: 660 652 | | Bottom Hole Location: | Sec:24 Twp: 10N 58W | Footage: 660 660 | | Proposed Depth/Form: | 10286 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-180 , Unit Acreage: 640, Drill Unit: All 24 | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 20 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1600 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 739, Top: 0 ft., Bottom: 1600 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6299 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 438, Top: 0 ft., Bottom: 6299 ft. | | Casing: | String Type: 2ND, Hole Size: 6 in., Size: 4.5 in., Top: 4908 ft., Depth: 10286 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

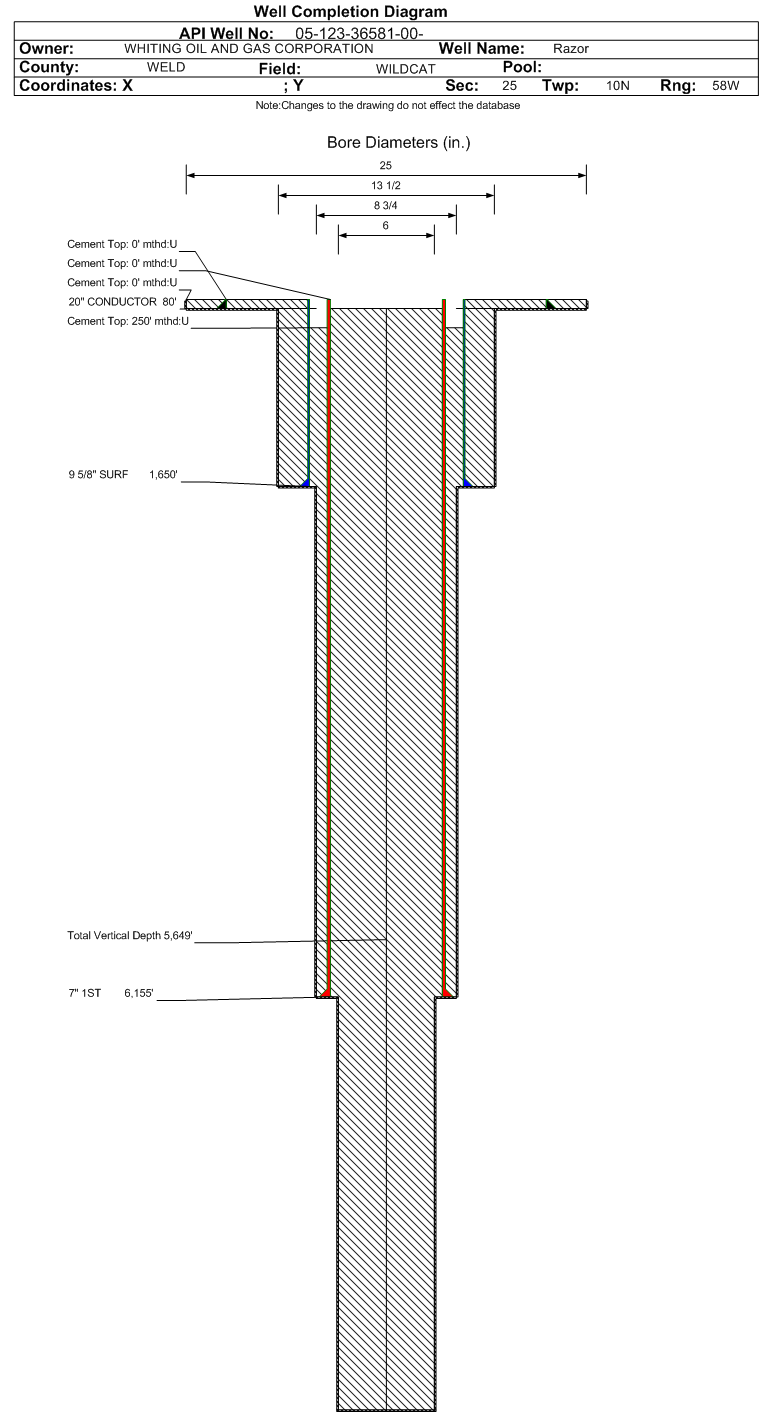

| Wellbore Completed | | Completion Date: | 4/8/2013 | | Spud Date: | 3/31/2013 | Spud Date Is: | Actual | | Measured TD: | 9800 ft. | Measured PB depth: | 6777 ft. | | True Vertical TD: | 5649 ft. | True Vertical PB depth: | 5672 ft. | | Bottom Hole Location: | Sec:24 Twp: 10N 58W | Footage: 1234 FNL 606 FWL | | Log Types: | The direct offset well to the Razor 25-2411H was cored and had open hole logs ran on it. | | Casing: | String Type: CONDUCTOR, Hole Size: 25 in., Size: 20 in., Top: 0 ft., Depth: 80 ft., Weight: 56 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 80 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1650 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 766, Top: 0 ft., Bottom: 1650 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6155 ft., Weight: 29,32 , Citings Type: ACTUAL | | Cement: | Sacks: 429, Top: 250 ft., Bottom: 6155 ft., Determination Method: CBL | | Casing: | String Type: OPEN HOLE, Hole Size: 6 in., Size: , Top: 6155 ft., Depth: 9800 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 5548 ft. | 5554 ft. | N | N | | NIOBRARA | 5554 ft. | | N | N | | No formation data to display. |
Sidetrack #01 Wellbore Classification: OW Status: PR - 2/1/2024 Measured TD: 10082 ft. Vertical TD: 5668 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: OW PR - 2/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 4/22/2015 | | Proposed Top PZ Location: | Sec:24 Twp: 10N 58W | Footage: 660 FSL 661 FWL | | Bottom Hole Location: | Sec:24 Twp: 10N 58W | Footage: 660 FNL 660 FWL | | Proposed Depth/Form: | 10109 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-296 , Unit Acreage: 640, Drill Unit: All 24 | | Casing: | String Type: CONDUCTOR, Hole Size: 25 in., Size: 20 in., Top: 0 ft., Depth: 80 ft., Weight: 56 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1600 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 739, Top: 0 ft., Bottom: 1600 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6299 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 438, Top: 0 ft., Bottom: 6200 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 5908 ft., Depth: 10286 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 0, Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 4/15/2013 | | Spud Date: | 3/31/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 10082 ft. | Measured PB depth: | 10082 ft. | | True Vertical TD: | 5668 ft. | True Vertical PB depth: | 5668 ft. | | Top PZ Location: | Sec:24 Twp: 10N 58W | Footage: 695 FSL 648 FWL | | Bottom Hole Location: | Sec:24 Twp: 10N 58W | Footage: 694 FNL 617 FWL | | Log Types: | MUD, CB/GR/CCL, RCBL, Caliper, Density, Triple Combo, AI | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1650 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 766, Top: 0 ft., Bottom: 1650 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6455 ft., Weight: 29 , Citings Type: ACTUAL | | Cement: | Sacks: 429, Top: 250 ft., Bottom: 6455 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 4764 ft., Depth: 10068 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 5678 ft. | | | | | NIOBRARA | 5981 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 2/1/2024 Interval Top: 6155 ft. Interval Bottom: 10082 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 5/27/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/16/2013 | Treatment End Date: | 5/17/2013 | | Treatment Summary: | 18 stage PermStill 45# using 227,740# 40/70 Ottawa sand, 3,607,700# 20/40 Ottawa sand, 360,880# CRC 20/40, 79,028 bbls slickwater. See details on the WB schematic | | Total fluid used in treatment (bbls): | 79028 | Max pressure during treatment (psi): | 6711 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 18 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 16992 | | Fresh water used in treatment (bbls): | 79028 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4196320 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 4606 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/27/2013 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 20 | | BBLS_OIL | 555 | | BTU_GAS | 1473 | | CALC_BBLS_H2O | 20 | | CALC_BBLS_OIL | 555 | | CALC_GOR | 230 | | CALC_MCF_GAS | 13 | | CASING_PRESS | 60 | | GRAVITY_OIL | 34 | | MCF_GAS | 13 | | TUBING_PRESS | 2400 |
| | Perforation Data: | | Interval Top: | 6155 ft. | # Of Holes: | | | Interval Bottom: | 10082 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2052 |
| Total Gas Produced (MCF) | 9213 |
| GOR | 4489 |
| GOR Determination | BOE |
| Average BOE per Day | 10.023 |
| Average MCFE per Day | 58.119 |
| Federal Financial Assurance | i | |
|
|
