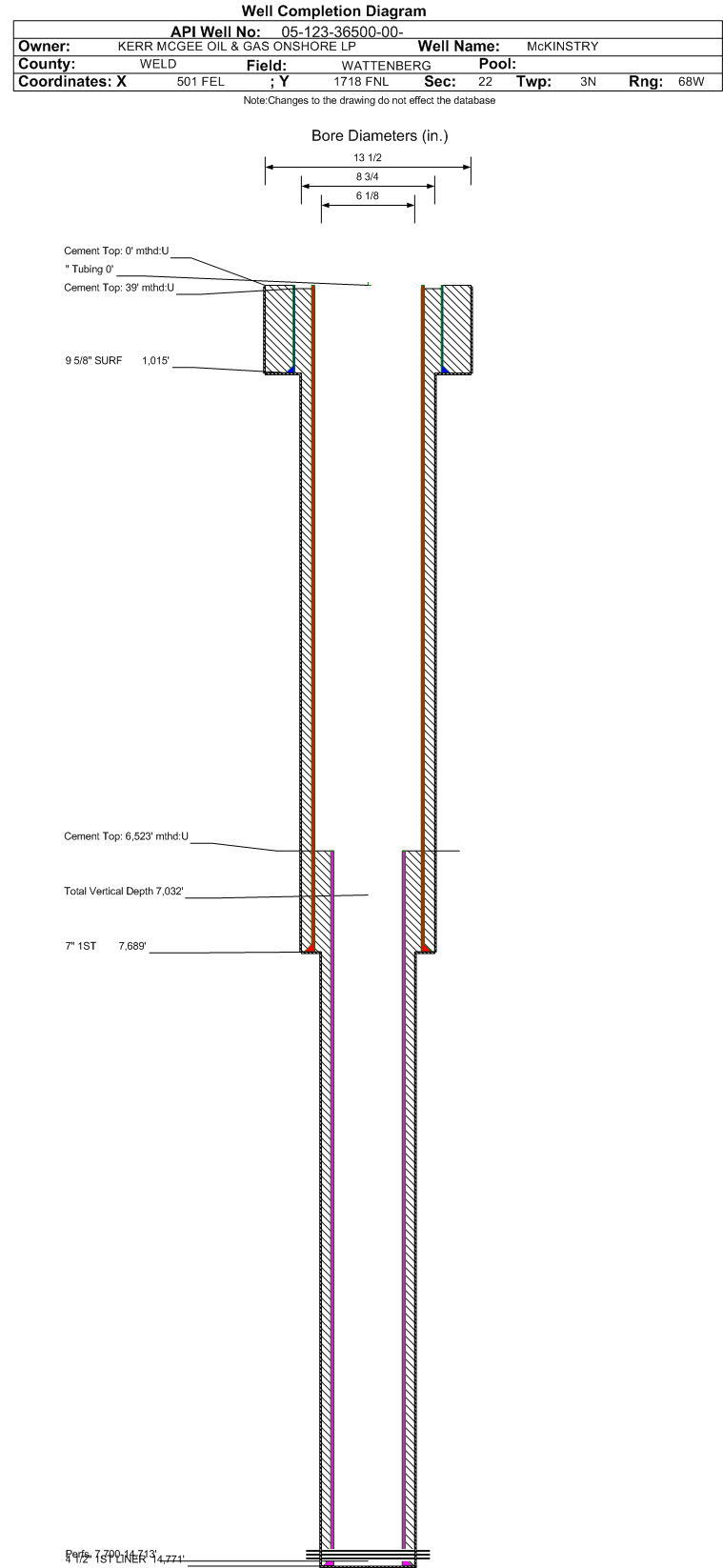

Wellbore #00 Wellbore Classification: OW Status: PR - 10/1/2024 Measured TD: 14775 ft. Vertical TD: 7032 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 10/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/27/2014 | | Proposed Top PZ Location: | Sec:22 Twp: 3N 68W | Footage: 2016 FNL 320 FEL | | Bottom Hole Location: | Sec:21 Twp: 3N 68W | Footage: 2175 FNL 2130 FEL | | Proposed Depth/Form: | 14281 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 280, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1021 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 386, Top: 0 ft., Bottom: 1021 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7577 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 830, Top: 0 ft., Bottom: 7577 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6571 ft., Depth: 14819 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 540, Top: 6671 ft., Bottom: 14819 ft. |
| | |
| Wellbore Completed | | Completion Date: | 12/6/2015 | | Spud Date: | 1/8/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 14775 ft. | Measured PB depth: | 14722 ft. | | True Vertical TD: | 7032 ft. | True Vertical PB depth: | 7035 ft. | | Top PZ Location: | Sec:22 Twp: 3N 68W | Footage: 2016 FNL 320 FEL | | Bottom Hole Location: | Sec:21 Twp: 3N 68W | Footage: 2175 FNL 2130 FEL | | Log Types: | | | Log Types: | MWD with GR, CBL, CCL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1015 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 386, Top: 0 ft., Bottom: 1015 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7689 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 690, Top: 39 ft., Bottom: 7689 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6523 ft., Depth: 14771 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 520, Top: 6523 ft., Bottom: 14771 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4160 ft. | | | | | SHARON SPRINGS | 7244 ft. | | | | | NIOBRARA | 7421 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 10/1/2024 Interval Top: 7700 ft. Interval Bottom: 14713 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/7/2016 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/26/2016 | Treatment End Date: | 8/2/2016 | | Treatment Summary: | "PERF AND FRAC FROM 7700-14,713.
10 BBL 7.5% HCL ACID, 191,237 BBL SLICKWATER, 5,000 BBL WATER, 196,247 BBL TOTAL FLUID
881,699# 100 MESH OTTAWA/ST. PETERS, 4,822,332# 40/70 OTTAWA/ST. PETERS, - 5,704,031# TOTAL SAND."
| | Total fluid used in treatment (bbls): | 196247 | Max pressure during treatment (psi): | 7588 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 27 | | Total acid used in treatment (bbls): | 10 | Min frac gradient (psi/ft): | 0.93 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 2084 | | Fresh water used in treatment (bbls): | 196237 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 5704031 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/14/2016 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 161 | | BBLS_OIL | 113 | | BTU_GAS | 1367 | | CALC_BBLS_H2O | 161 | | CALC_BBLS_OIL | 113 | | CALC_GOR | 1150 | | CALC_MCF_GAS | 130 | | CASING_PRESS | 860 | | GRAVITY_OIL | 48 | | MCF_GAS | 130 |
| | Perforation Data: | | Interval Top: | 7700 ft. | # Of Holes: | 642 | | Interval Bottom: | 14713 ft. | Hole Size: | 0.46 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 5245 |
| Total Gas Produced (MCF) | 47053 |
| GOR | 8971 |
| GOR Determination | BOE |
| Average BOE per Day | 36.503 |
| Average MCFE per Day | 211.745 |
| Federal Financial Assurance | i | |
|
|
