Wellbore #00 Wellbore Classification: OW Status: DG - 3/2/2013 Measured TD: 6368 ft. Vertical TD: 6367 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW DG - 3/2/2013 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/17/2014 | | Proposed Top PZ Location: | Sec:25 Twp: 10N 58W | Footage: 838 671 | | Bottom Hole Location: | Sec:25 Twp: 10N 58W | Footage: 314 660 | | Proposed Depth/Form: | 9820 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-3 , Unit Acreage: 640, Drill Unit: all of Sect 25 | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 20 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1550 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 743, Top: 0 ft., Bottom: 1550 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5996 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 419, Top: 0 ft., Bottom: 5996 ft. | | Casing: | String Type: 2ND, Hole Size: 6 in., Size: 4.5 in., Top: 5178 ft., Depth: 9820 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

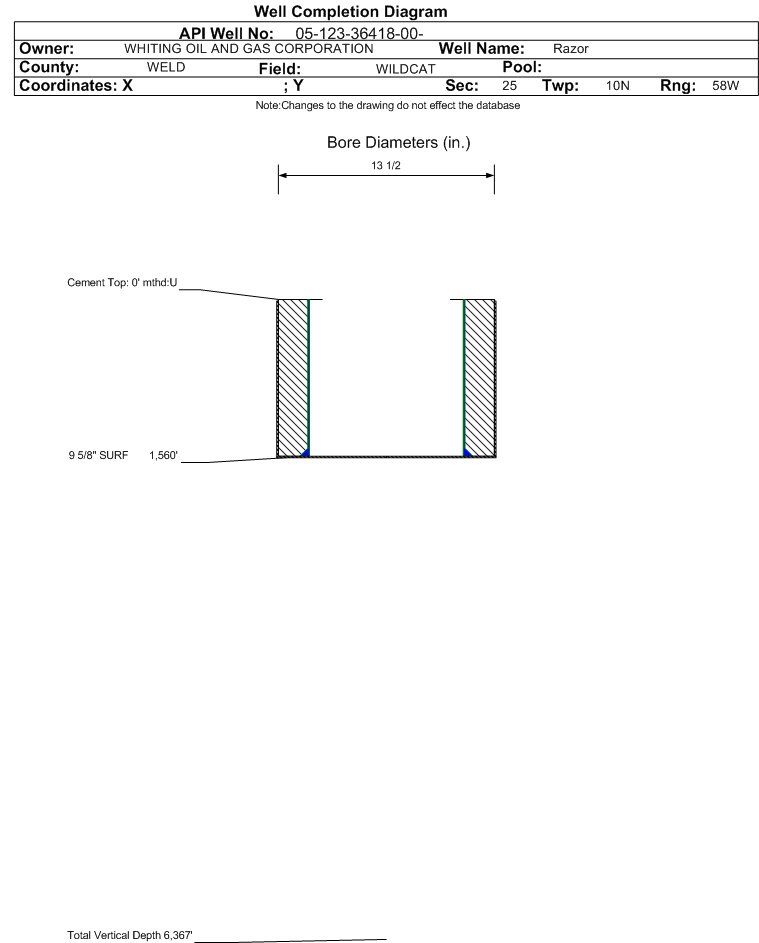

| Wellbore Completed | | Completion Date: | 3/24/2013 | | Spud Date: | 3/3/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 6368 ft. | Measured PB depth: | 5443 ft. | | True Vertical TD: | 6367 ft. | True Vertical PB depth: | 5442 ft. | | Bottom Hole Location: | Sec:25 Twp: 10N 58W | Footage: 314 FNL 660 FWL | | Log Types: | PEX, Triple Combo, Caliper, CV, IAw/LC, Micro, GR, BHCS, CS/LD, Mud | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1560 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 742, Top: 0 ft., Bottom: 1560 ft., Determination Method: VISU | | Additional Cement: | String Type: OPEN HOLE , Top: 5458 ft., Depth: , Bottom: 5966 ft., Sacks: 154, Method: | | Additional Cement: | String Type: OPEN HOLE , Top: 4858 ft., Depth: , Bottom: 5458 ft., Sacks: 214, Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 1383 ft. | | | | | HYGIENE | 3291 ft. | | | | | SHARON SPRINGS | 5545 ft. | | Y | | | NIOBRARA | 5549 ft. | | Y | | | No formation data to display. |
Sidetrack #01 Wellbore Classification: OW Status: SI - 9/1/2025 Measured TD: 9691 ft. Vertical TD: 5681 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: OW SI - 9/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 1/13/2015 | | Proposed Top PZ Location: | Sec:25 Twp: 10N 58W | Footage: 838 FNL 671 FWL | | Bottom Hole Location: | Sec:25 Twp: 10N 58W | Footage: 660 FSL 660 FWL | | Proposed Depth/Form: | 9820 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 535-3 , Unit Acreage: 640, Drill Unit: all of 25 | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 20 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1550 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 743, Top: 0 ft., Bottom: 1550 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 9.625 in., Top: 0 ft., Depth: 5996 ft., Weight: 29 , Citings Type: PLANNED | | Cement: | Sacks: 419, Top: 0 ft., Bottom: 5996 ft. | | Casing: | String Type: 2ND, Hole Size: 6 in., Size: 4.5 in., Top: 5178 ft., Depth: 9820 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 3/29/2013 | | Spud Date: | 3/3/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 9691 ft. | Measured PB depth: | 9691 ft. | | True Vertical TD: | 5681 ft. | True Vertical PB depth: | 5681 ft. | | Top PZ Location: | Sec:25 Twp: 10N 58w | Footage: 959 FNL 677 FWL | | Bottom Hole Location: | Sec:25 Twp: 10N 58W | Footage: 690 FSL 667 FWL | | Log Types: | PEX, Triple Combo, Caliper, CV, AIw/LC, Micro, GR, BHCS, CN/LD,RCBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1560 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 719, Top: 0 ft., Bottom: 1560 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 5975 ft., Weight: 29 , Citings Type: ACTUAL | | Cement: | Sacks: 416, Top: , Bottom: 5975 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6 in., Size: 4.5 in., Top: 4924 ft., Depth: 9681 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 5637 ft. | | | | | NIOBRARA | 5645 ft. | | Y | |
Formation NBRR Formation Classification: OW Status: SI - 9/1/2025 Interval Top: 5975 ft. Interval Bottom: 9691 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 5/25/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/14/2013 | Treatment End Date: | 5/15/2013 | | Treatment Summary: | 18 stage PermStim 45# using 216,000# 40/70 Ottawa sand, 3,321,000# 20/40 Ottawa sand, 330,700# CRC 20/40 76,211 bbls slickwater | | Total fluid used in treatment (bbls): | 76211 | Max pressure during treatment (psi): | 6743 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 18 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.79 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 22241 | | Fresh water used in treatment (bbls): | 76211 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3867700 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 4743 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/30/2013 | Test Method: | Separator | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | FLARED | |
| Test Type | Measure |
|---|
| BBLS_H2O | 114 | | BBLS_OIL | 593 | | BTU_GAS | 1726 | | CALC_BBLS_H2O | 114 | | CALC_BBLS_OIL | 593 | | CALC_GOR | 430 | | CALC_MCF_GAS | 255 | | CASING_PRESS | 165 | | GRAVITY_OIL | 36 | | MCF_GAS | 255 | | TUBING_PRESS | 150 |
| | Perforation Data: | | Interval Top: | 5975 ft. | # Of Holes: | | | Interval Bottom: | 9691 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1147 |
| Total Gas Produced (MCF) | 8206 |
| GOR | 7154 |
| GOR Determination | BOE |
| Average BOE per Day | 6.973 |
| Average MCFE per Day | 40.440 |
| Federal Financial Assurance | i | |
|
|
