Wellbore #00 Wellbore Classification: OW Status: PR - 2/1/2025 Measured TD: 11620 ft. Vertical TD: 7370 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 2/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 11/14/2014 | | Proposed Top PZ Location: | Sec:23 Twp: 3N 66W | Footage: 625 FSL 975 FWL | | Bottom Hole Location: | Sec:23 Twp: 3N 66W | Footage: 460 FNL 975 FWL | | Proposed Depth/Form: | 11898 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 937 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 937 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7753 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 7753 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6700 ft., Depth: 11898 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

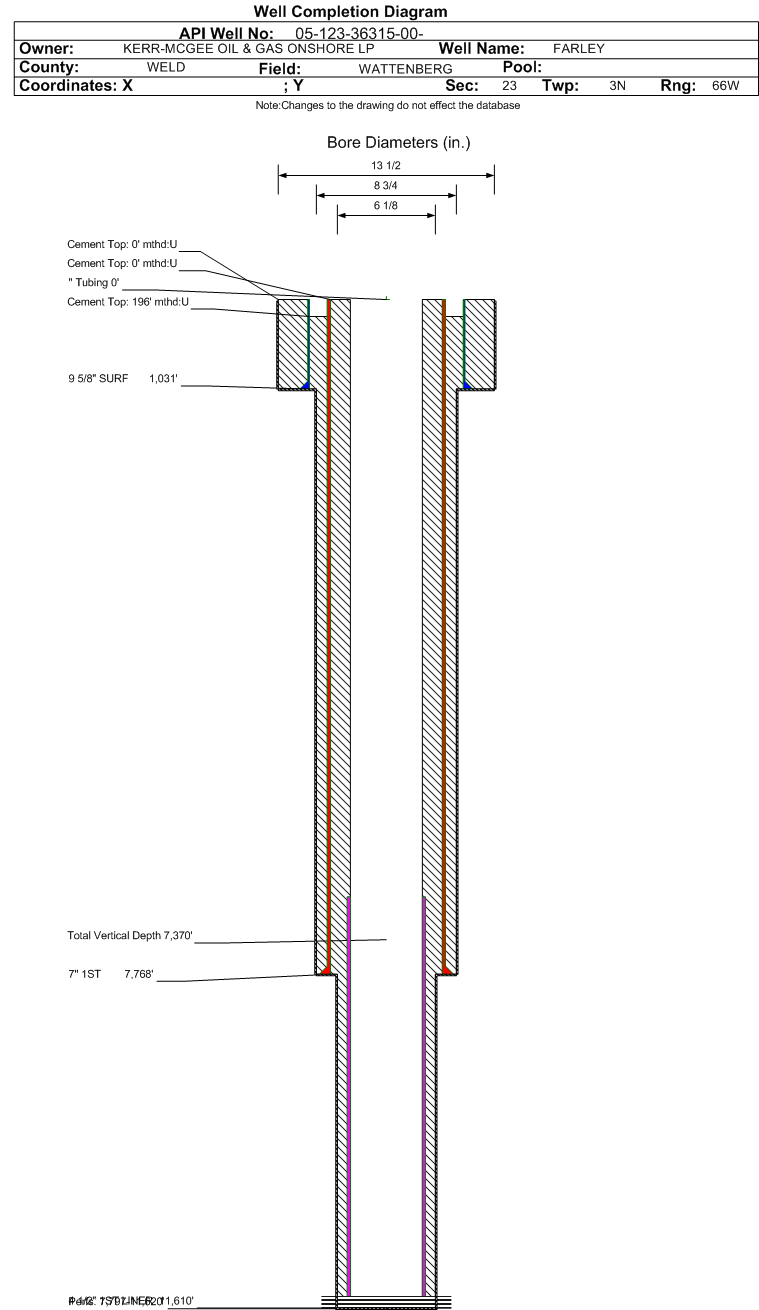

| Wellbore Completed | | Completion Date: | 7/31/2013 | | Spud Date: | 7/5/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 11620 ft. | Measured PB depth: | 11601 ft. | | True Vertical TD: | 7370 ft. | True Vertical PB depth: | 7370 ft. | | Top PZ Location: | Sec:23 Twp: 3N 66W | Footage: 567 FSL 985 FWL | | Bottom Hole Location: | Sec:23 Twp: 3N 66W | Footage: 813 FNL 952 FWL | | Log Types: | CBL, GR, RES, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1031 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 357, Top: 0 ft., Bottom: 1031 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7768 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 770, Top: 196 ft., Bottom: 7768 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6877 ft., Depth: 11610 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7166 ft. | | | | | NIOBRARA | 7224 ft. | | | | | FORT HAYS | 7602 ft. | | | | | CODELL | 7689 ft. | | | |
Formation CODL Formation Classification: OW Status: PR - 2/1/2025 Interval Top: 7797 ft. Interval Bottom: 11620 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 12/3/2013 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/2/2013 | Treatment End Date: | 11/4/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7797-11620.
8643 BBL CROSSLINK GEL,1568 BBL LINEAR GEL,67459 BBL SLICKWATER,77670 BBL TOTAL FLUID
258160# 30/50 OTTAWA/ST. PETERS SAND,1807598# 40/70 OTTAWA/ST. PETERS SAND ,2065758# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 77670 | Max pressure during treatment (psi): | 6756 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 32 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.83 | | Recycled water used in treatment (bbls): | 945 | Total flowback volume recovered (bbls): | 1241 | | Fresh water used in treatment (bbls): | 76725 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 2065758 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/7/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 2 | | BBLS_OIL | 35 | | BTU_GAS | 1186 | | CALC_BBLS_H2O | 203 | | CALC_BBLS_OIL | 24 | | CALC_GOR | 5800 | | CALC_MCF_GAS | 35 | | CASING_PRESS | 3500 | | GRAVITY_OIL | 48 | | MCF_GAS | 203 |
| | Perforation Data: | | Interval Top: | 7797 ft. | # Of Holes: | 0 | | Interval Bottom: | 11620 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2980 |
| Total Gas Produced (MCF) | 60007 |
| GOR | 20136 |
| GOR Determination | MCFE |
| Average BOE per Day | 36.376 |
| Average MCFE per Day | 210.979 |
| Federal Financial Assurance | i | |
|
|
