Wellbore #00 Wellbore Classification: OW Status: PR - 11/1/2020 Measured TD: 12872 ft. Vertical TD: 7363 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 11/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/25/2014 | | Proposed Top PZ Location: | Sec:19 Twp: 2N 65W | Footage: 685 FSL 2406 FEL | | Bottom Hole Location: | Sec:18 Twp: 2N 65W | Footage: 460 FSL 2424 FEL | | Proposed Depth/Form: | 12882 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 980 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 490, Top: 0 ft., Bottom: 980 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7733 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 740, Top: 0 ft., Bottom: 7733 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6695 ft., Depth: 12882 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

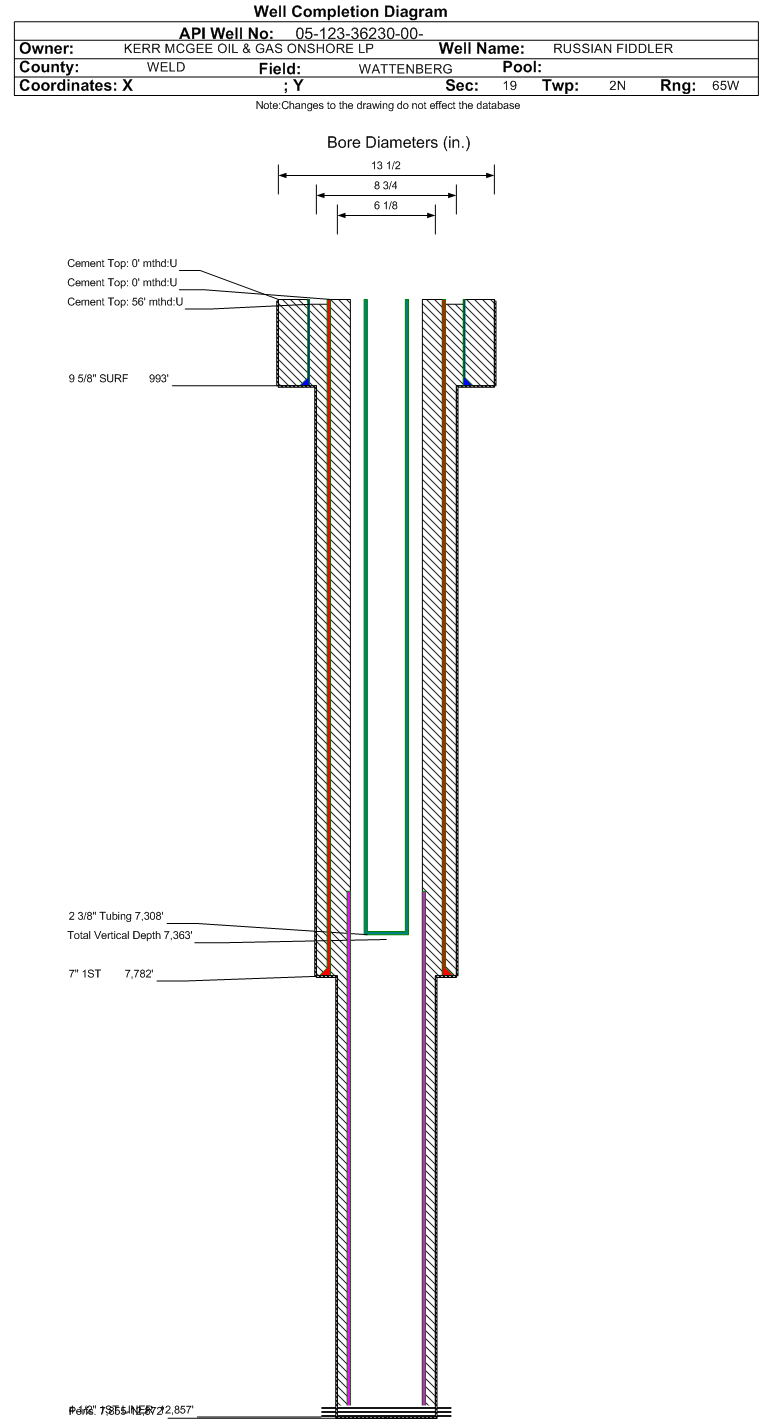

| Wellbore Completed | | Completion Date: | 4/2/2013 | | Spud Date: | 2/13/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 12872 ft. | Measured PB depth: | 12872 ft. | | True Vertical TD: | 7363 ft. | True Vertical PB depth: | 7363 ft. | | Top PZ Location: | Sec:19 Twp: 2N 65W | Footage: 685 FSL 2406 FEL | | Bottom Hole Location: | Sec:18 Twp: 2N 65W | Footage: 460 FSL 2424 FEL | | Log Types: | PRE FORM 5 | | Log Types: | CBL, GR, RES, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 993 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 445, Top: 0 ft., Bottom: 993 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7782 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 765, Top: 56 ft., Bottom: 7782 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6808 ft., Depth: 12857 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7094 ft. | | | | | NIOBRARA | 7160 ft. | | | | | FORT HAYS | 7664 ft. | | | | | CODELL | 11550 ft. | | | |
Formation CD-FH Formation Classification: OW Status: PR - 11/1/2020 Interval Top: 7855 ft. Interval Bottom: 12872 ft.| Completed Information for Formation CODELL-FORT HAYS | | 1st Production Date: | 8/21/2013 | Choke Size: | | | Formation Name: | CODELL-FORT HAYS | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/30/2013 | Treatment End Date: | 8/1/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7855-12872.
196108 BBL SLICKWATER,196108 BBL TOTAL FLUID.
6339698# 40/70 SAND,6339698# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 196108 | Max pressure during treatment (psi): | 7456 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 25 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.90 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 9154 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 6339698 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7308 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/7/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 400 | | BTU_GAS | 1295 | | CALC_BBLS_OIL | 400 | | CALC_GOR | 2045 | | CALC_MCF_GAS | 818 | | CASING_PRESS | 2329 | | GRAVITY_OIL | 47 | | MCF_GAS | 818 | | TUBING_PRESS | 1814 |
| | Perforation Data: | | Interval Top: | 7855 ft. | # Of Holes: | 0 | | Interval Bottom: | 12872 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1770 |
| Total Gas Produced (MCF) | 36964 |
| GOR | 20883 |
| GOR Determination | MCFE |
| Average BOE per Day | 22.328 |
| Average MCFE per Day | 129.489 |
| Federal Financial Assurance | i | |
|
|
