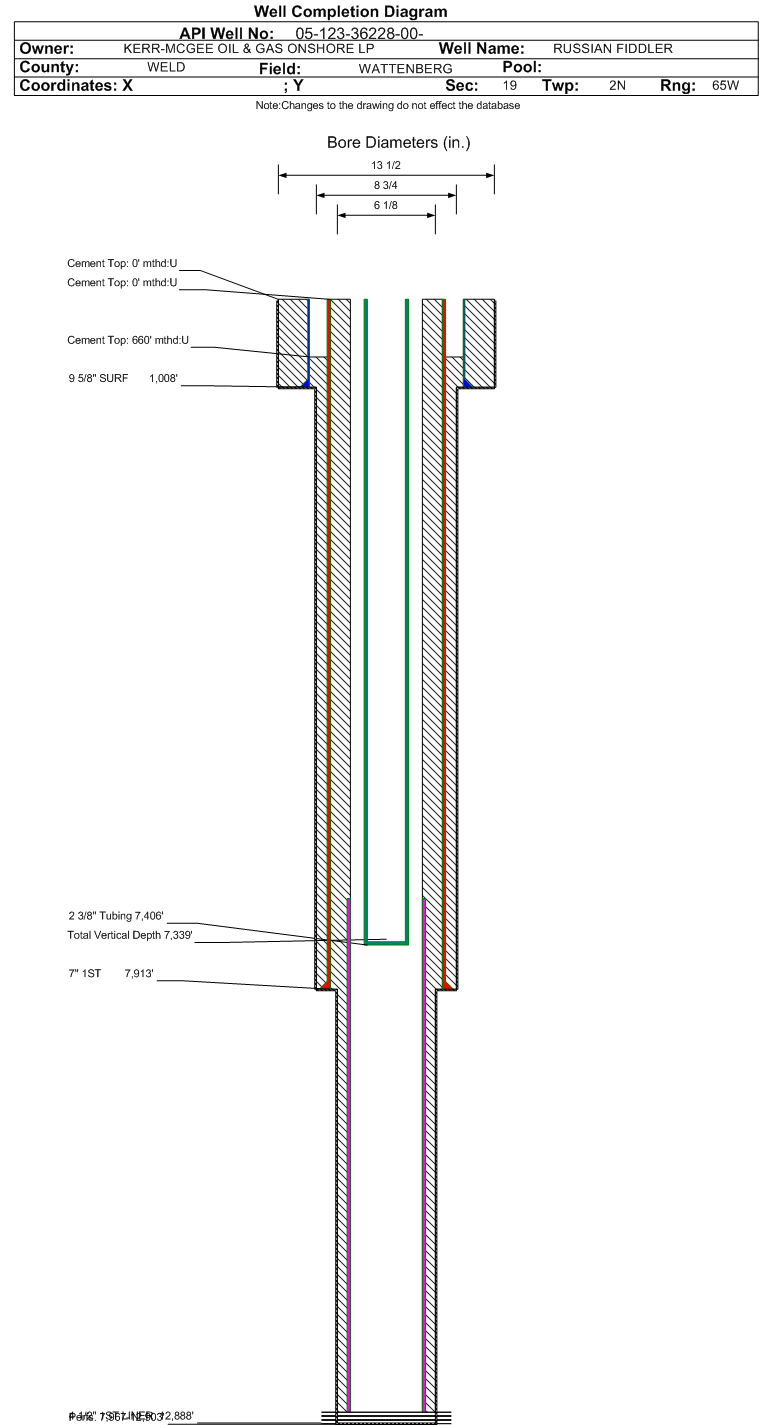

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-36228
Well Classification: OW Status: PR - 11/1/2020
Well Name/No:RUSSIAN FIDDLER #37C-18HZ
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date11/1/2020
FacilityID:430636LocationID:430634
County:WELD #123Location:SWSE 19 2N65W 6
Field:WATTENBERG - #90750Elevation:4989 ft.
Planned Location:305FSL  2463 FELLat/Long: 40.117507 / -104.706095Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.117506 / -104.706098Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 7/23/2013
End Date: 7/24/2013
Reported: 8/30/2013
Days to report: 37
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 11/1/2020             Measured TD: 12903 ft.    Vertical TD: 7339 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 11/1/2020
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:10/25/2014
Proposed Top PZ Location:Sec:19 Twp: 2N 65W Footage: 626 FSL  1265 FEL
Bottom Hole Location:Sec:18 Twp: 2N 65W Footage: 460 FSL  1277 FEL
Proposed Depth/Form:12989 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 400, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 980 ft., Weight: 36.0 , Citings Type: PLANNED
Cement:Sacks: 490, Top: 0 ft., Bottom: 980 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7821 ft., Weight: 26.0 , Citings Type: PLANNED
Cement:Sacks: 750, Top: 0 ft., Bottom: 7821 ft.
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6796 ft., Depth: 12989 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:

Wellbore Completed
Completion Date:5/6/2013
Spud Date:2/9/2013Spud Date Is:ACTUAL
Measured TD:12903 ft.Measured PB depth:12879 ft.
True Vertical TD:7339 ft.True Vertical PB depth:7339 ft.
Top PZ Location:Sec:19 Twp: 2N 65WFootage: 763 FSL  1261 FEL
Bottom Hole Location:Sec:18 Twp: 2N 65WFootage: 434 FSL  1315 FEL
Log Types:CBL,GR,MUD
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1008 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 460, Top: 0 ft., Bottom: 1008 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7913 ft., Weight: 26 , Citings Type: ACTUAL
Cement:Sacks: 737, Top: 660 ft., Bottom: 7913 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6871 ft., Depth: 12888 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SHARON SPRINGS7173 ft.
NIOBRARA7245 ft.
FORT HAYS7726 ft.
CODELL7817 ft.

Formation CODL                     Formation Classification:  OW                     Status:  PR - 11/1/2020                 Interval Top: 7967 ft.    Interval Bottom: 12903 ft.

 Completed Information for Formation CODELL
1st Production Date:8/23/2013Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:7/23/2013Treatment End Date:7/24/2013
Treatment Summary:COMPLETED THROUGH AN OPEN HOLE LINER FROM 7967-12903. 96896 BBL SLICKWATER,96896 BBL TOTAL FLUID. 2632451# 40/70 SAND,2632451# TOTAL SAND.
Total fluid used in treatment (bbls):96896Max pressure during treatment (psi):7359
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.30
Type Of gas:Number Of staged intervals:25
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.96
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):9152
Fresh water used in treatment (bbls):0Disposition method For flowback:DISPOSAL
Total proppant used (lbs):2632451Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:7406 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/7/2013Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 373
BTU_GAS 1295
CALC_BBLS_OIL 373
CALC_GOR 2174
CALC_MCF_GAS 811
CASING_PRESS 2361
GRAVITY_OIL 47
MCF_GAS 811
TUBING_PRESS 1288
Perforation Data:
Interval Top:7967 ft.# Of Holes:0
Interval Bottom:12903 ft.Hole Size:0 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)1574
Total Gas Produced (MCF)38440
GOR24421
GOR DeterminationMCFE
Average BOE per Day22.383
Average MCFE per Day129.813

 Federal Financial Assurance  i

 Tribal Well  i No
