Wellbore #00 Wellbore Classification: OW Status: PR - 11/1/2020 Measured TD: 12394 ft. Vertical TD: 7262 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 11/1/2020 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/25/2014 | | Proposed Top PZ Location: | Sec:19 Twp: 2N 65W | Footage: 725 FSL 1767 FWL | | Bottom Hole Location: | Sec:18 Twp: 2N 65W | Footage: 100 FSL 1781 FWL | | Proposed Depth/Form: | 12741 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 200, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 980 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 730, Top: 0 ft., Bottom: 980 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7590 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 730, Top: 0 ft., Bottom: 7590 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6561 ft., Depth: 12741 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

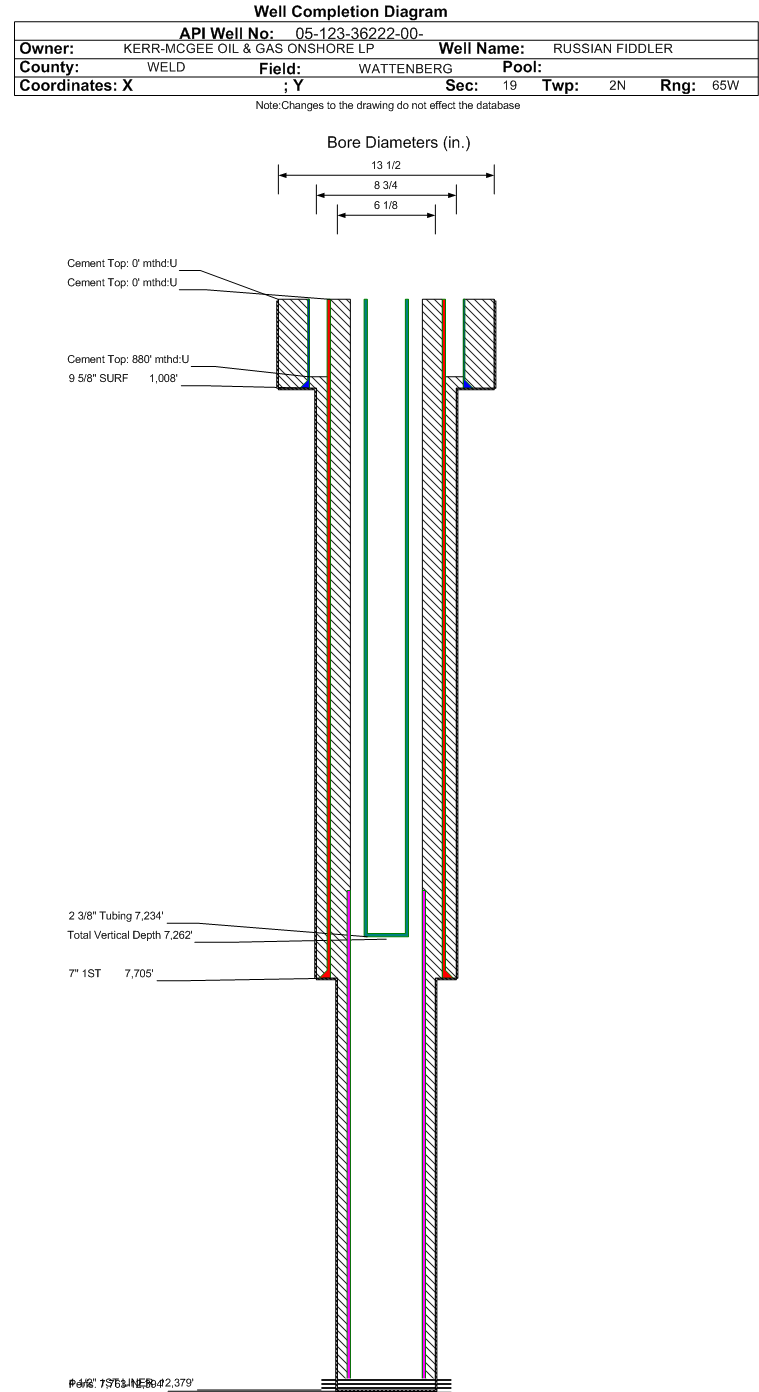

| Wellbore Completed | | Completion Date: | 5/15/2013 | | Spud Date: | 2/20/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 12394 ft. | Measured PB depth: | 12370 ft. | | True Vertical TD: | 7262 ft. | True Vertical PB depth: | 7261 ft. | | Top PZ Location: | Sec:19 Twp: 2N 65W | Footage: 725 FSL 1767 FWL | | Bottom Hole Location: | Sec:18 Twp: 2N 65W | Footage: 100 FSL 1781 FWL | | Log Types: | CBL,GR,MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1008 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 444, Top: 0 ft., Bottom: 1008 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7705 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 710, Top: 880 ft., Bottom: 7705 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6709 ft., Depth: 12379 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7135 ft. | | | | | NIOBRARA | 7216 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 11/1/2020 Interval Top: 7763 ft. Interval Bottom: 12394 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/24/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/3/2013 | Treatment End Date: | 8/12/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7763-12394.
262 BBL ACID,21433 BBL CROSSLINK GEL,5968 BBL LINEAR GEL,68517 BBL SLICKWATER,96179 BBL TOTAL FLUID.
649593# 30/50 OTTAWA/ST. PETERS SAND,1808065# 40/70 OTTAWA/ST. PETERS SAND,2457658# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 96179 | Max pressure during treatment (psi): | 7567 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 40 | | Total acid used in treatment (bbls): | 262 | Min frac gradient (psi/ft): | 0.88 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 8743 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2457658 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7234 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/7/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 318 | | BTU_GAS | 1295 | | CALC_BBLS_OIL | 318 | | CALC_GOR | 1745 | | CALC_MCF_GAS | 555 | | CASING_PRESS | 2524 | | GRAVITY_OIL | 47 | | MCF_GAS | 555 | | TUBING_PRESS | 2026 |
| | Perforation Data: | | Interval Top: | 7763 ft. | # Of Holes: | 0 | | Interval Bottom: | 12394 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1900 |
| Total Gas Produced (MCF) | 58568 |
| GOR | 30825 |
| GOR Determination | MCFE |
| Average BOE per Day | 32.746 |
| Average MCFE per Day | 189.930 |
| Federal Financial Assurance | i | |
|
|
