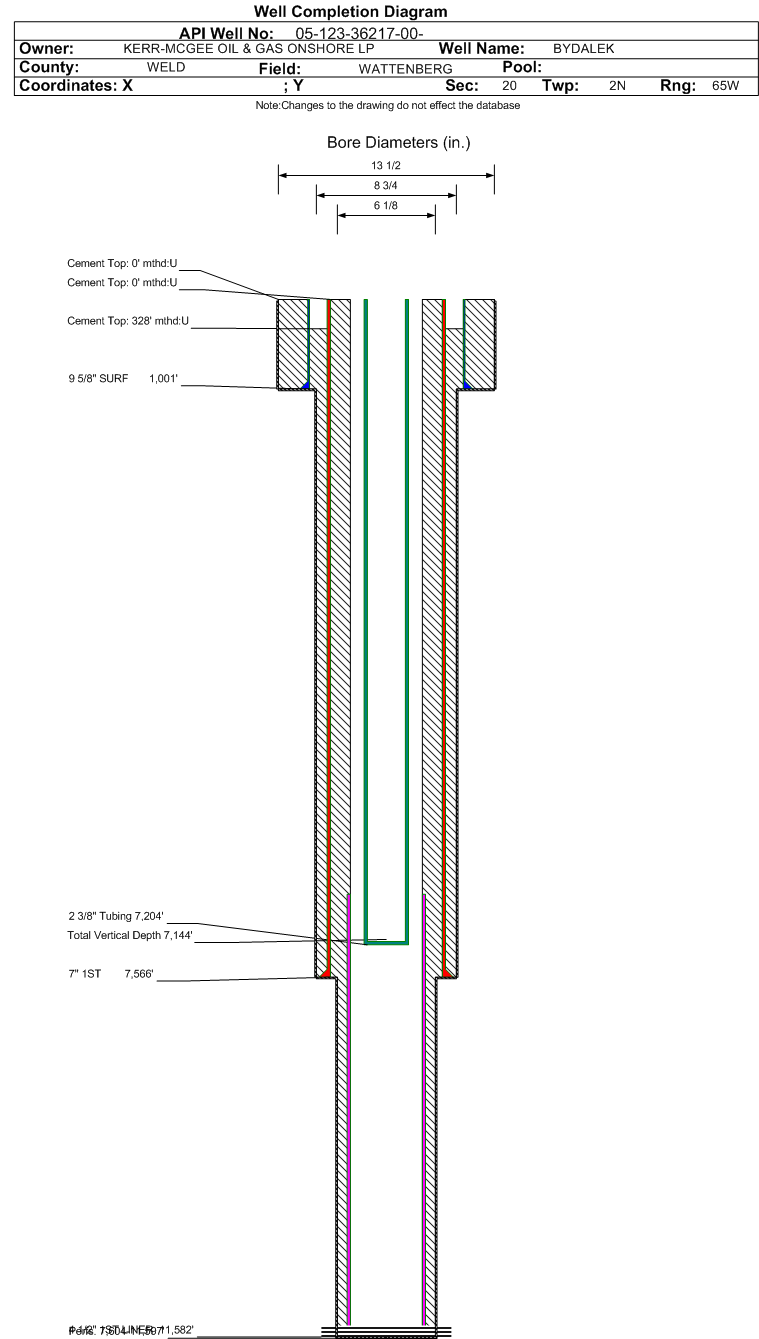

Wellbore #00 Wellbore Classification: OW Status: AB - 7/23/2024 Measured TD: 11597 ft. Vertical TD: 7144 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 7/23/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 10/25/2014 | | Proposed Top PZ Location: | Sec:20 Twp: 2N 65W | Footage: 654 FSL 1838 FWL | | Bottom Hole Location: | Sec:20 Twp: 2N 65W | Footage: 646 FNL 1851 FWL | | Proposed Depth/Form: | 11834 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 975 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 730, Top: 0 ft., Bottom: 975 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7577 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 740, Top: 0 ft., Bottom: 7577 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6577 ft., Depth: 11834 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |
| Wellbore Completed | | Completion Date: | 4/25/2013 | | Spud Date: | 2/2/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 11597 ft. | Measured PB depth: | 11573 ft. | | True Vertical TD: | 7144 ft. | True Vertical PB depth: | 7144 ft. | | Top PZ Location: | Sec:20 Twp: 2N 65W | Footage: 654 FSL 1838 FWL | | Bottom Hole Location: | Sec:20 Twp: 2N 65W | Footage: 646 FNL 1851 FWL | | Log Types: | CBL; GR; MUD | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1001 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 407, Top: 0 ft., Bottom: 1001 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: , Top: 0 ft., Depth: 7566 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 760, Top: 0 ft., Bottom: 7566 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6640 ft., Depth: 11597 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7087 ft. | | | | | NIOBRARA | 7170 ft. | | | |
Formation NBRR Formation Classification: OW Status: AB - 7/23/2024 Interval Top: 7604 ft. Interval Bottom: 11597 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 7/25/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/16/2013 | Treatment End Date: | 7/18/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7600-11597.
7654 BBL CROSSLINK GEL,861 BBL LINEAR GEL,72597 BBL SLICKWATER,81112 BBL TOTAL FLUID
1872249# 30/50 SAND,232355# 40/70 SAND,2104604# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 81112 | Max pressure during treatment (psi): | 7648 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 30 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 9350 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2104604 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7204 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/3/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 445 | | BBLS_OIL | 181 | | BTU_GAS | 1289 | | CALC_BBLS_H2O | 445 | | CALC_BBLS_OIL | 181 | | CALC_GOR | 2144 | | CALC_MCF_GAS | 388 | | CASING_PRESS | 2026 | | GRAVITY_OIL | 47 | | MCF_GAS | 388 | | TUBING_PRESS | 1630 |
| | Perforation Data: | | Interval Top: | 7604 ft. | # Of Holes: | 0 | | Interval Bottom: | 11597 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/23/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
