Wellbore #00 Wellbore Classification: OW Status: PR - 2/1/2024 Measured TD: 11689 ft. Vertical TD: 7192 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 2/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 9/27/2014 | | Proposed Top PZ Location: | Sec:3 Twp: 5N 67W | Footage: 1118 FSL 741 FEL | | Bottom Hole Location: | Sec:3 Twp: 5N 67W | Footage: 1127 FSL 486 FWL | | Proposed Depth/Form: | 11761 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1270 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 1270 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7626 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 740, Top: 0 ft., Bottom: 7626 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6526 ft., Depth: 11761 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

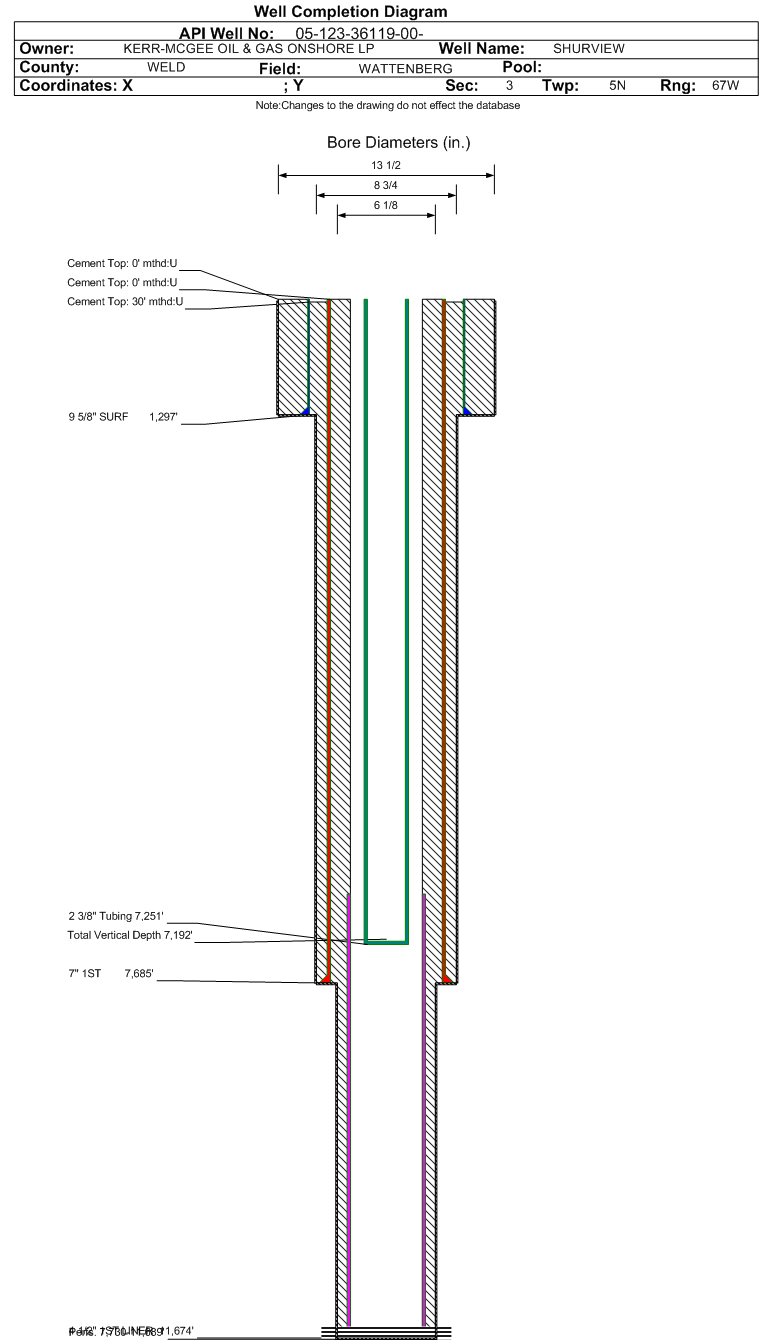

| Wellbore Completed | | Completion Date: | 5/1/2013 | | Spud Date: | 3/22/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 11689 ft. | Measured PB depth: | 11665 ft. | | True Vertical TD: | 7192 ft. | True Vertical PB depth: | 7192 ft. | | Top PZ Location: | Sec:3 Twp: 5N 67W | Footage: 1118 FSL 741 FEL | | Bottom Hole Location: | Sec:3 Twp: 5N 67W | Footage: 1127 FSL 486 FWL | | Log Types: | CBL,GR,RES,MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1297 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 547, Top: 0 ft., Bottom: 1297 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7685 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 810, Top: 30 ft., Bottom: 7685 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6685 ft., Depth: 11674 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 6996 ft. | | | | | NIOBRARA | 7035 ft. | | | | | FORT HAYS | 7524 ft. | | | | | CODELL | 7730 ft. | | | |
Formation CODL Formation Classification: OW Status: PR - 2/1/2024 Interval Top: 7730 ft. Interval Bottom: 11689 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 6/16/2013 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/13/2013 | Treatment End Date: | 6/14/2013 | | Treatment Summary: | OPEN HOLE COMPLETION FROM 7730-11689.
6633 BBL CROSSLINK GEL, 745 BBL LINEAR GEL, 64569 BBL SLICKWATER, 71947 BBL TOTAL FLUID.
1758880# 40/70 SAND, 204440# 30/50 SAND, 1963320# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 71947 | Max pressure during treatment (psi): | 6822 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 20 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.65 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 2959 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 1963320 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7251 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/2/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 24 | | BBLS_OIL | 239 | | BTU_GAS | 1340 | | CALC_BBLS_H2O | 24 | | CALC_BBLS_OIL | 239 | | CALC_GOR | 1661 | | CALC_MCF_GAS | 397 | | CASING_PRESS | 1421 | | GRAVITY_OIL | 45 | | MCF_GAS | 397 | | TUBING_PRESS | 670 |
| | Perforation Data: | | Interval Top: | 7730 ft. | # Of Holes: | 0 | | Interval Bottom: | 11689 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2599 |
| Total Gas Produced (MCF) | 52470 |
| GOR | 20188 |
| GOR Determination | MCFE |
| Average BOE per Day | 27.824 |
| Average MCFE per Day | 161.344 |
| Federal Financial Assurance | i | |
|
|
