Wellbore #00 Wellbore Classification: OW Status: PR - 11/29/2013 Measured TD: 11538 ft. Vertical TD: 7101 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 11/29/2013 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/29/2014 | | Proposed Top PZ Location: | Sec:31 Twp: 3N 66W | Footage: 718 FSL 209 FWL | | Bottom Hole Location: | Sec:31 Twp: 3N 66W | Footage: 485 FNL 275 FWL | | Proposed Depth/Form: | 11572 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 850 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 630, Top: 0 ft., Bottom: 850 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7442 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 730, Top: 0 ft., Bottom: 7442 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6406 ft., Depth: 11572 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

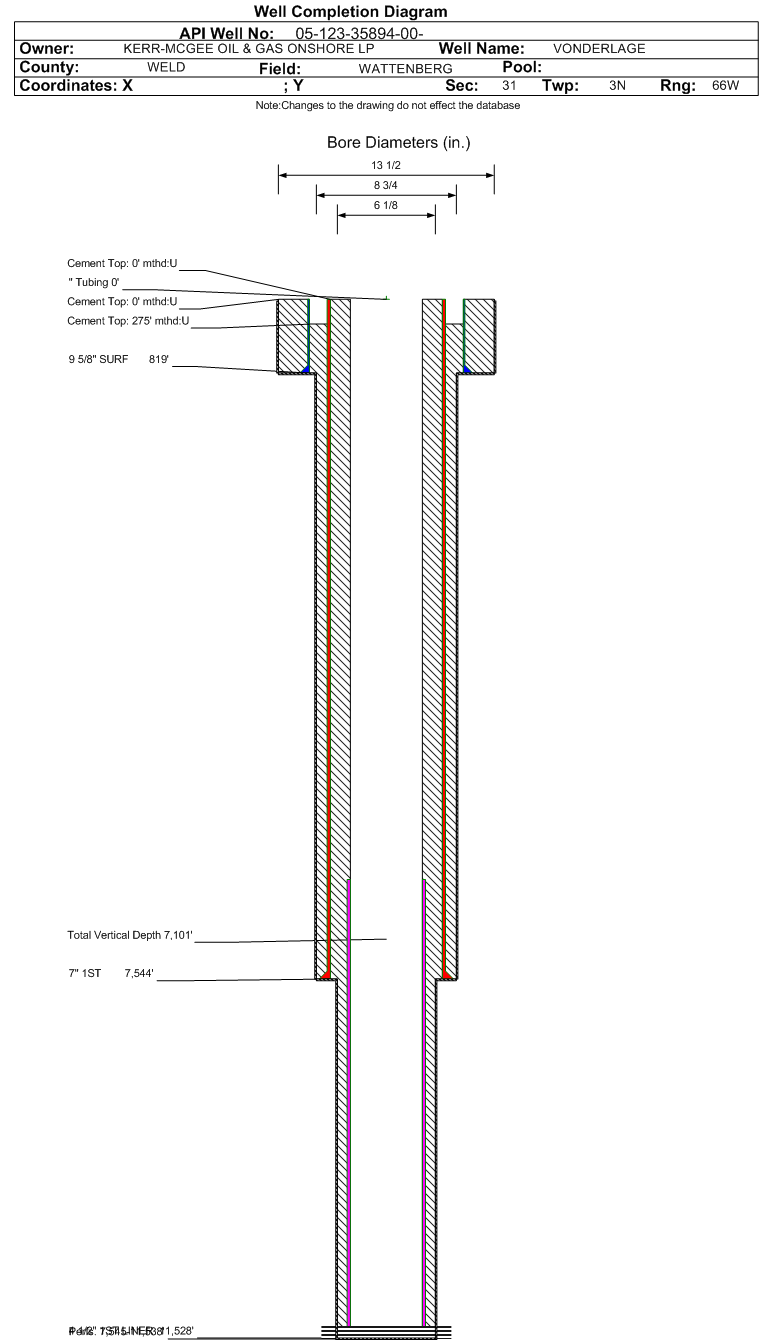

| Wellbore Completed | | Completion Date: | 7/23/2013 | | Spud Date: | 6/5/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 11538 ft. | Measured PB depth: | 11519 ft. | | True Vertical TD: | 7101 ft. | True Vertical PB depth: | 7101 ft. | | Top PZ Location: | Sec:31 Twp: 3N 66W | Footage: 718 FSL 209 FWL | | Bottom Hole Location: | Sec:31 Twp: 3N 66W | Footage: 485 FNL 275 FWL | | Log Types: | CBL, GR, RES, MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 819 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 318, Top: 0 ft., Bottom: 819 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7544 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 762, Top: 275 ft., Bottom: 7544 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6440 ft., Depth: 11528 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7126 ft. | | | | | NIOBRARA | 7279 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 11/29/2013 Interval Top: 7545 ft. Interval Bottom: 11538 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/25/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/22/2013 | Treatment End Date: | 11/23/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7545-11538.
7863 BBL CROSSLINK GEL,1750 BBL LINEAR GEL,72684 BBL SLICKWATER,82298 BBL TOTAL FLUID.
185701# 30/50 OTTAWA/ST. PETERS SAND,1850598# 40/70 OTTAWA/ST. PETERS SAND,2036299# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 82298 | Max pressure during treatment (psi): | 7358 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 32 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.97 | | Recycled water used in treatment (bbls): | 3186 | Total flowback volume recovered (bbls): | 8487 | | Fresh water used in treatment (bbls): | 79112 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 2036299 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/29/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 15 | | BBLS_OIL | 200 | | BTU_GAS | 1264 | | CALC_BBLS_H2O | 15 | | CALC_BBLS_OIL | 200 | | CALC_GOR | 2945 | | CALC_MCF_GAS | 589 | | CASING_PRESS | 700 | | GRAVITY_OIL | 49 | | MCF_GAS | 589 |
| | Perforation Data: | | Interval Top: | 7545 ft. | # Of Holes: | 0 | | Interval Bottom: | 11538 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3055 |
| Total Gas Produced (MCF) | 66151 |
| GOR | 21653 |
| GOR Determination | MCFE |
| Average BOE per Day | 39.604 |
| Average MCFE per Day | 229.738 |
| Federal Financial Assurance | i | |
|
|
