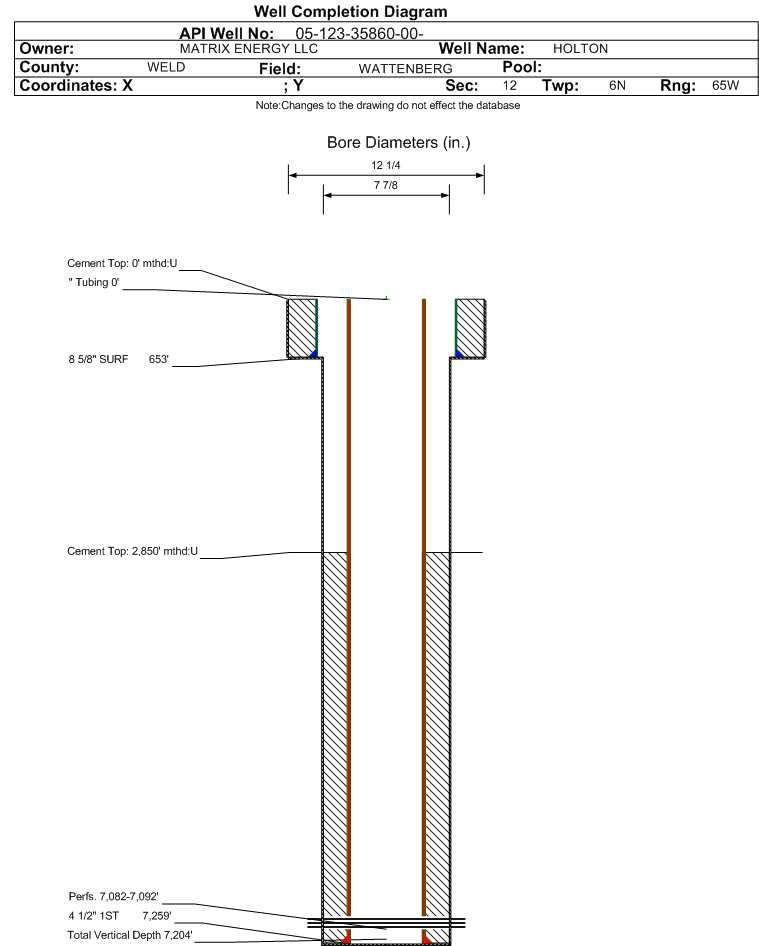

Wellbore #00 Wellbore Classification: OW Status: PA - 9/2/2021 Measured TD: 7273 ft. Vertical TD: 7204 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 9/2/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/25/2014 | | Proposed Top PZ Location: | Sec:12 Twp: 6N 65W | Footage: 665 FSL 1915 FWL | | Bottom Hole Location: | Sec:12 Twp: 6N 65W | Footage: 656 FSL 1984 FWL | | Proposed Depth/Form: | 7175 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 381-5 , Unit Acreage: 80, Drill Unit: S/2 SW/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 600 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 600 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7247 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 7247 ft. |
| | |
| Wellbore Completed | | Completion Date: | 8/25/2012 | | Spud Date: | 8/20/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 7273 ft. | Measured PB depth: | 7235 ft. | | True Vertical TD: | 7204 ft. | True Vertical PB depth: | 7166 ft. | | Top PZ Location: | Sec:12 Twp: 6N 65W | Footage: 665 FSL 1915 FWL | | Bottom Hole Location: | Sec:12 Twp: 6N 65W | Footage: 656 FSL 1984 FWL | | Log Types: | DIL, FDC/CNL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 653 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 460, Top: 0 ft., Bottom: 653 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7259 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 454, Top: 2850 ft., Bottom: 7259 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3635 ft. | 3680 ft. | | | | SUSSEX | 4404 ft. | 4600 ft. | | | | SHANNON | 5012 ft. | 5078 ft. | | | | NIOBRARA | 6810 ft. | 7043 ft. | | | | FORT HAYS | 7057 ft. | 7080 ft. | | | | CODELL | 7080 ft. | 7100 ft. | | |
Formation CODL Formation Classification: OW Status: AB - 9/14/2021 Interval Top: 7082 ft. Interval Bottom: 7092 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 10/3/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/24/2012 | Treatment End Date: | 9/24/2012 | | Treatment Summary: | frac'd with 944 bbls slick water, 2600 bbls vistar 22 gel and 250,340 lbs 20/40 sand. | | Total fluid used in treatment (bbls): | 3654 | Max pressure during treatment (psi): | 4657 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.94 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 1400 | | Fresh water used in treatment (bbls): | 3654 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 250340 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/16/2012 | Test Method: | FLOW | | Hours Tested: | 51 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 6 | | BBLS_OIL | 60 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 3 | | CALC_BBLS_OIL | 28 | | CALC_GOR | 183 | | CALC_MCF_GAS | 5 | | CASING_PRESS | 990 | | GRAVITY_OIL | 1 | | MCF_GAS | 11 |
| | Perforation Data: | | Interval Top: | 7082 ft. | # Of Holes: | 40 | | Interval Bottom: | 7092 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 09/14/2021 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
