Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2019 Measured TD: 12115 ft. Vertical TD: 6980 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2019 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/9/2014 | | Proposed Top PZ Location: | Sec:10 Twp: 2N 65W | Footage: 535 FSL 1637 FWL | | Bottom Hole Location: | Sec:3 Twp: 2N 65W | Footage: 49 FSL 1655 FWL | | Proposed Depth/Form: | 12468 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 900 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 900 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7350 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 720, Top: , Bottom: 7350 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6313 ft., Depth: 12468 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

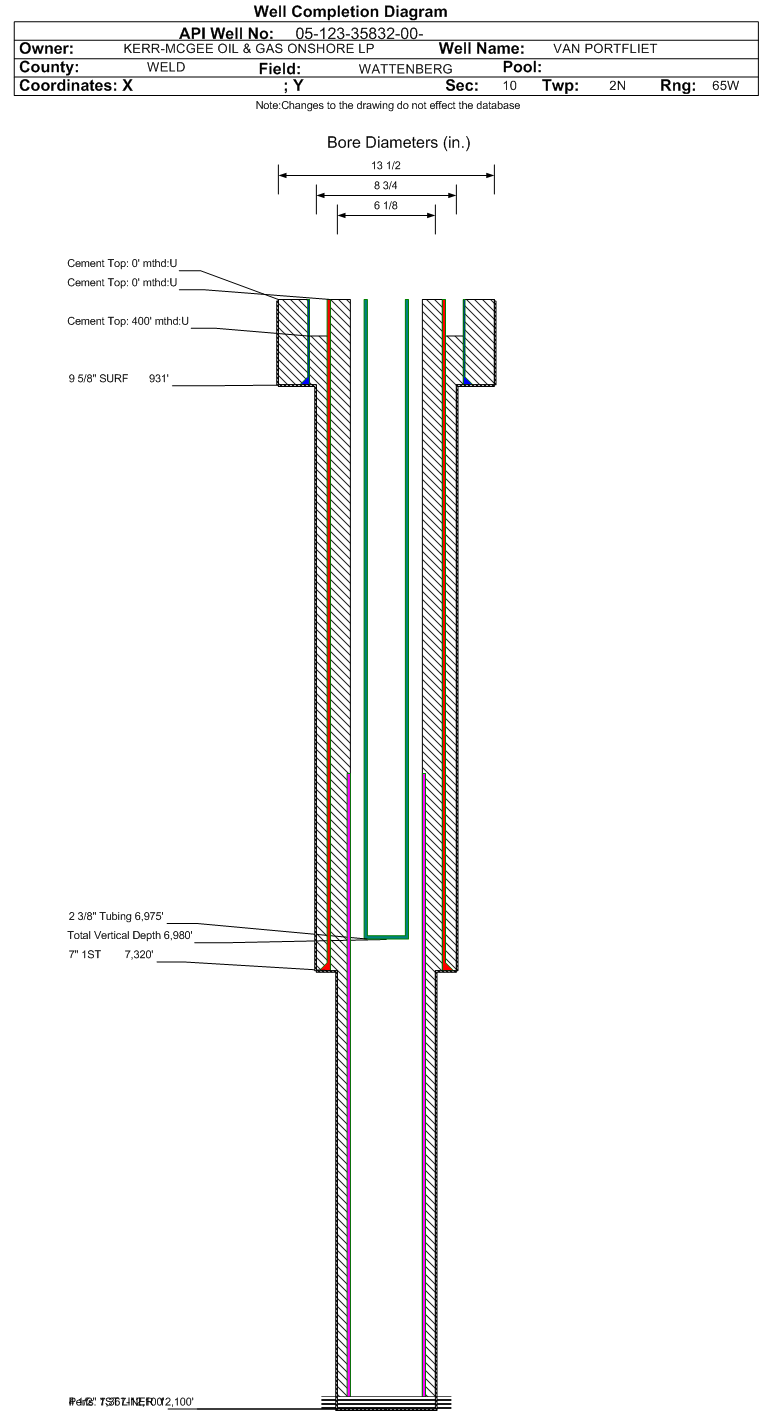

| Wellbore Completed | | Completion Date: | 10/30/2012 | | Spud Date: | 9/13/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 12115 ft. | Measured PB depth: | 12091 ft. | | True Vertical TD: | 6980 ft. | True Vertical PB depth: | 5980 ft. | | Top PZ Location: | Sec:10 Twp: 2N 65W | Footage: 535 FSL 1637 FWL | | Bottom Hole Location: | Sec:3 Twp: 2N 65W | Footage: 49 FSL 1655 FWL | | Log Types: | PRE FORM 5 | | Log Types: | CBL; MWD, MUD LOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 931 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 690, Top: 0 ft., Bottom: 931 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7320 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 400 ft., Bottom: 7320 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 5169 ft., Depth: 12100 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 6899 ft. | | | | | NIOBRARA | 6989 ft. | | | |
Formation NBRR Formation Classification: GW Status: PR - 6/1/2019 Interval Top: 7367 ft. Interval Bottom: 12100 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/23/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/9/2013 | Treatment End Date: | 1/10/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM
9686 BBL CROSSLINK GEL, 791 BBL LINEAR GEL, 53477 BBL SLICKWATER, 63954 BBL TOTAL FLUID.
1359495# 40/70 SAND, 295829# 30/50 SAND, 27296# 20/40 SAND, 1682620# TOTAL SAND. | | Total fluid used in treatment (bbls): | 63954 | Max pressure during treatment (psi): | 7657 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 17 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.98 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 3844 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 1682620 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6975 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/13/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 62 | | BBLS_OIL | 258 | | BTU_GAS | 1237 | | CALC_BBLS_H2O | 62 | | CALC_BBLS_OIL | 258 | | CALC_GOR | 4159 | | CALC_MCF_GAS | 1073 | | CASING_PRESS | 1654 | | GRAVITY_OIL | 50 | | MCF_GAS | 1073 | | TUBING_PRESS | 1244 |
| | Perforation Data: | | Interval Top: | 7367 ft. | # Of Holes: | 0 | | Interval Bottom: | 12100 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2657 |
| Total Gas Produced (MCF) | 36830 |
| GOR | 13861 |
| GOR Determination | BOE |
| Average BOE per Day | 24.608 |
| Average MCFE per Day | 142.743 |
| Federal Financial Assurance | i | |
|
|
