Wellbore #00 Wellbore Classification: OW Status: PR - 6/1/2019 Measured TD: 12211 ft. Vertical TD: 7164 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 6/1/2019 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 7/9/2014 | | Proposed Top PZ Location: | Sec:10 Twp: 2N 65W | Footage: 629 FSL 944 FWL | | Bottom Hole Location: | Sec:3 Twp: 2N 65W | Footage: 55 FSL 961 FWL | | Proposed Depth/Form: | 12638 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 400, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 900 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 900 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7520 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 740, Top: , Bottom: 7520 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6487 ft., Depth: 12638 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

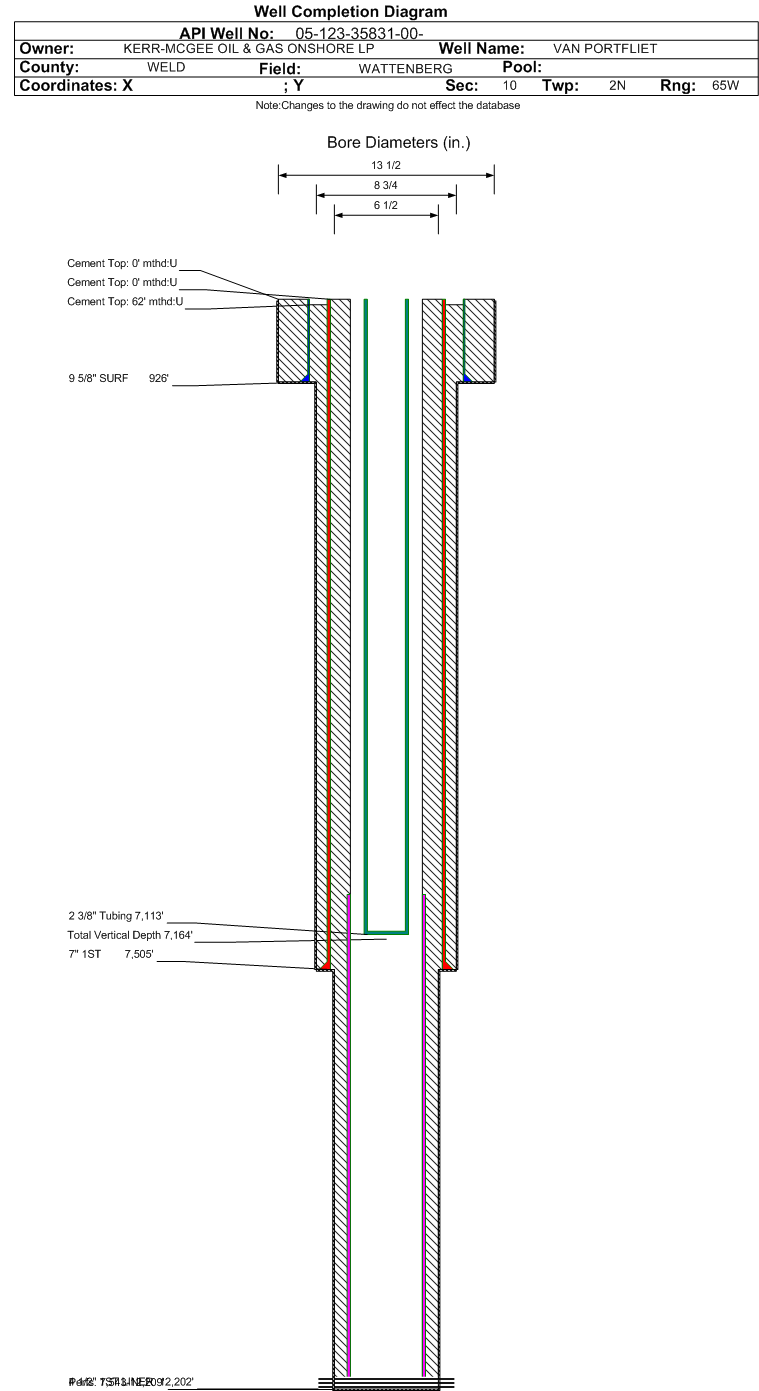

| Wellbore Completed | | Completion Date: | 11/10/2012 | | Spud Date: | 9/14/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 12211 ft. | Measured PB depth: | 12200 ft. | | True Vertical TD: | 7164 ft. | True Vertical PB depth: | 7172 ft. | | Top PZ Location: | Sec:10 Twp: 2N 65W | Footage: 629 FSL 944 FWL | | Bottom Hole Location: | Sec:3 Twp: 2N 65W | Footage: 55 FSL 961 FWL | | Log Types: | PRE FORM 5 | | Log Types: | CBL; MWD: GR; MUD LOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 926 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 690, Top: 0 ft., Bottom: 926 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7505 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 730, Top: 62 ft., Bottom: 7505 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.5 in., Size: 4.5 in., Top: 6664 ft., Depth: 12202 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 6824 ft. | | | | | NIOBRARA | 6893 ft. | | | | | FORT HAYS | 7343 ft. | | | | | CODELL | 7496 ft. | | | |
Formation CODL Formation Classification: OW Status: PR - 6/1/2019 Interval Top: 7543 ft. Interval Bottom: 12209 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 1/20/2013 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/12/2013 | Treatment End Date: | 1/14/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7543-12209.
229 BBL CROSSLINK GEL, 20 BBL LINEAR GEL, 1875 BBL SLICKWATER, 2123 BBL TOTAL FLUID.
1840619# 40/70 SAND, 301500# 30/50 SAND, 24180# 20/40 SAND, 2166299# TOTAL SAND. | | Total fluid used in treatment (bbls): | 2123 | Max pressure during treatment (psi): | 7416 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 23 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.96 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 3613 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 2166299 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7113 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/13/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 124 | | BBLS_OIL | 207 | | BTU_GAS | 1237 | | CALC_BBLS_H2O | 124 | | CALC_BBLS_OIL | 207 | | CALC_GOR | 4188 | | CALC_MCF_GAS | 867 | | CASING_PRESS | 2023 | | GRAVITY_OIL | 50 | | MCF_GAS | 867 | | TUBING_PRESS | 1261 |
| | Perforation Data: | | Interval Top: | 7543 ft. | # Of Holes: | 0 | | Interval Bottom: | 12209 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 5875 |
| Total Gas Produced (MCF) | 47969 |
| GOR | 8164 |
| GOR Determination | BOE |
| Average BOE per Day | 38.740 |
| Average MCFE per Day | 224.715 |
| Federal Financial Assurance | i | |
|
|
