Wellbore #00 Wellbore Classification: OW Status: PR - 3/1/2021 Measured TD: 12545 ft. Vertical TD: 7314 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 3/1/2021 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 6/5/2014 | | Proposed Top PZ Location: | Sec:6 Twp: 2N 65W | Footage: 784 FSL 1826 FEL | | Bottom Hole Location: | Sec:31 Twp: 3N 65W | Footage: 301 FSL 1855 FEL | | Proposed Depth/Form: | 12528 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 200, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 900 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 900 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7653 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 720, Top: , Bottom: 7653 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6623 ft., Depth: 12528 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

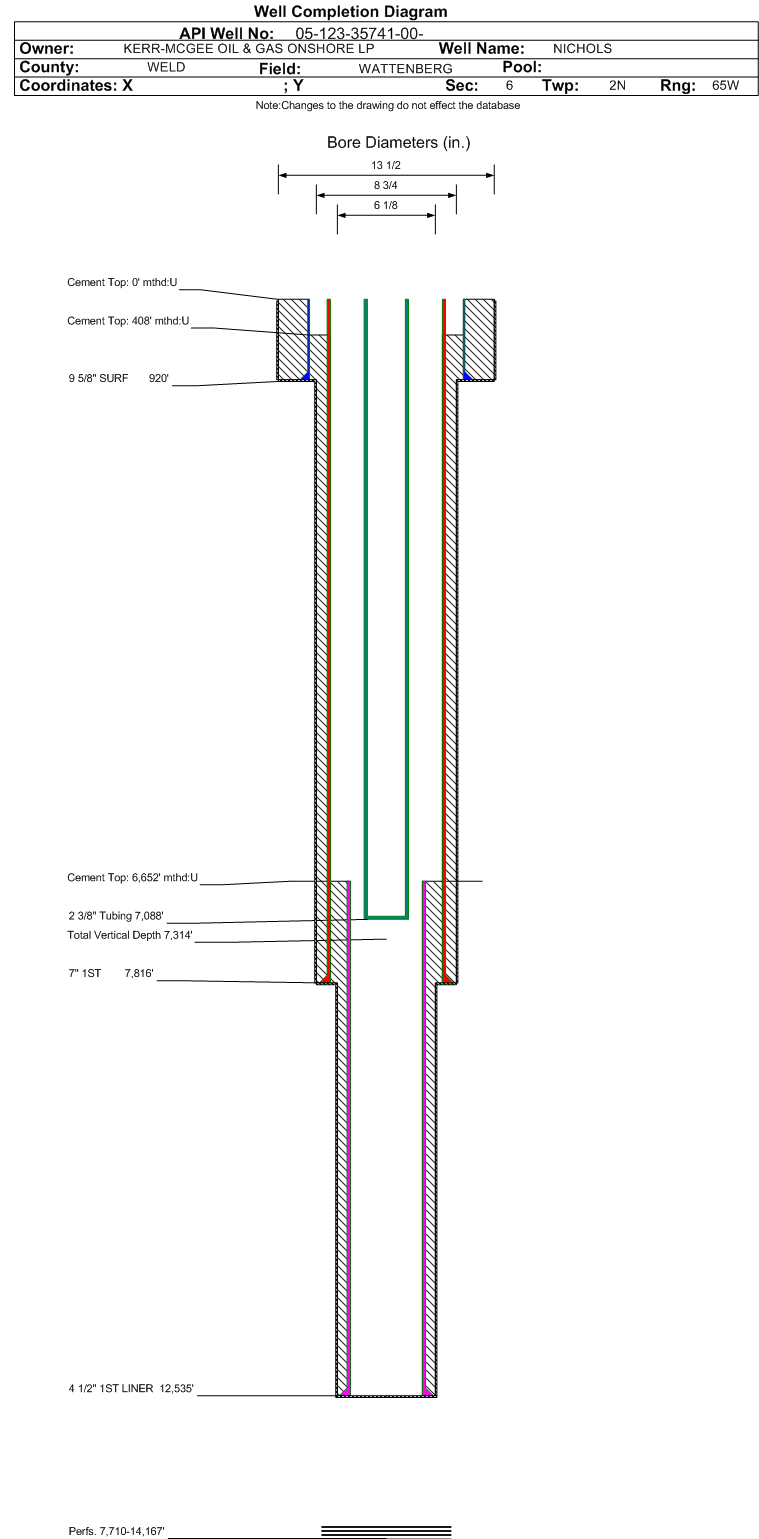

| Wellbore Completed | | Completion Date: | 1/26/2013 | | Spud Date: | 10/15/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 12545 ft. | Measured PB depth: | 12397 ft. | | True Vertical TD: | 7314 ft. | True Vertical PB depth: | 7312 ft. | | Top PZ Location: | Sec:6 Twp: 2N 65W | Footage: 784 FSL 1826 FEL | | Bottom Hole Location: | Sec:31 Twp: 3N 65W | Footage: 301 FSL 1855 FEL | | Log Types: | CBL; GR; RES; MUD | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 920 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 920 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7816 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 774, Top: 408 ft., Bottom: 7816 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6652 ft., Depth: 12535 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 344, Top: 6652 ft., Bottom: 12535 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7020 ft. | | | | | NIOBRARA | 7096 ft. | | | | | FORT HAYS | 7585 ft. | | | | | CODELL | 7710 ft. | | | |
Formation CODL Formation Classification: OW Status: PR - 3/1/2021 Interval Top: 7710 ft. Interval Bottom: 14167 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 4/15/2013 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/26/2013 | Treatment End Date: | 3/28/2013 | | Treatment Summary: | COMPLETED THROUGH AN OPEN HOLE LINER FROM 7710-14167.
26084 BBL CROSSLINK GEL,836 BBL LINEAR GEL,98078 BBL SLICKWATER,124998 BBL TOTAL FLUID.
1337979# 30/50 SAND,2363809# 40/70 SAND,3701788# TOTAL SAND.
| | Total fluid used in treatment (bbls): | 124998 | Max pressure during treatment (psi): | 7335 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 33 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.91 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 12354 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3701788 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7088 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/5/2013 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 258 | | BTU_GAS | 1231 | | CALC_BBLS_OIL | 258 | | CALC_GOR | 3779 | | CALC_MCF_GAS | 975 | | CASING_PRESS | 2494 | | GRAVITY_OIL | 50 | | MCF_GAS | 975 | | TUBING_PRESS | 1766 |
| | Perforation Data: | | Interval Top: | 7710 ft. | # Of Holes: | 0 | | Interval Bottom: | 14167 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3593 |
| Total Gas Produced (MCF) | 34325 |
| GOR | 9553 |
| GOR Determination | BOE |
| Average BOE per Day | 26.042 |
| Average MCFE per Day | 151.030 |
| Federal Financial Assurance | i | |
|
|
