Wellbore #00 Wellbore Classification: OW Status: SI - 9/1/2024 Measured TD: 10711 ft. Vertical TD: 6086 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 9/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/30/2014 | | Proposed Top PZ Location: | Sec:18 Twp: 5N 61W | Footage: 757 FNL 512 FEL | | Bottom Hole Location: | Sec:18 Twp: 5N 61W | Footage: 489 FSL 559 FEL | | Proposed Depth/Form: | 10525 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-633 , Unit Acreage: 640, Drill Unit: All | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 410 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 128, Top: 0 ft., Bottom: 410 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6500 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 775, Top: 0 ft., Bottom: 6500 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 10489 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

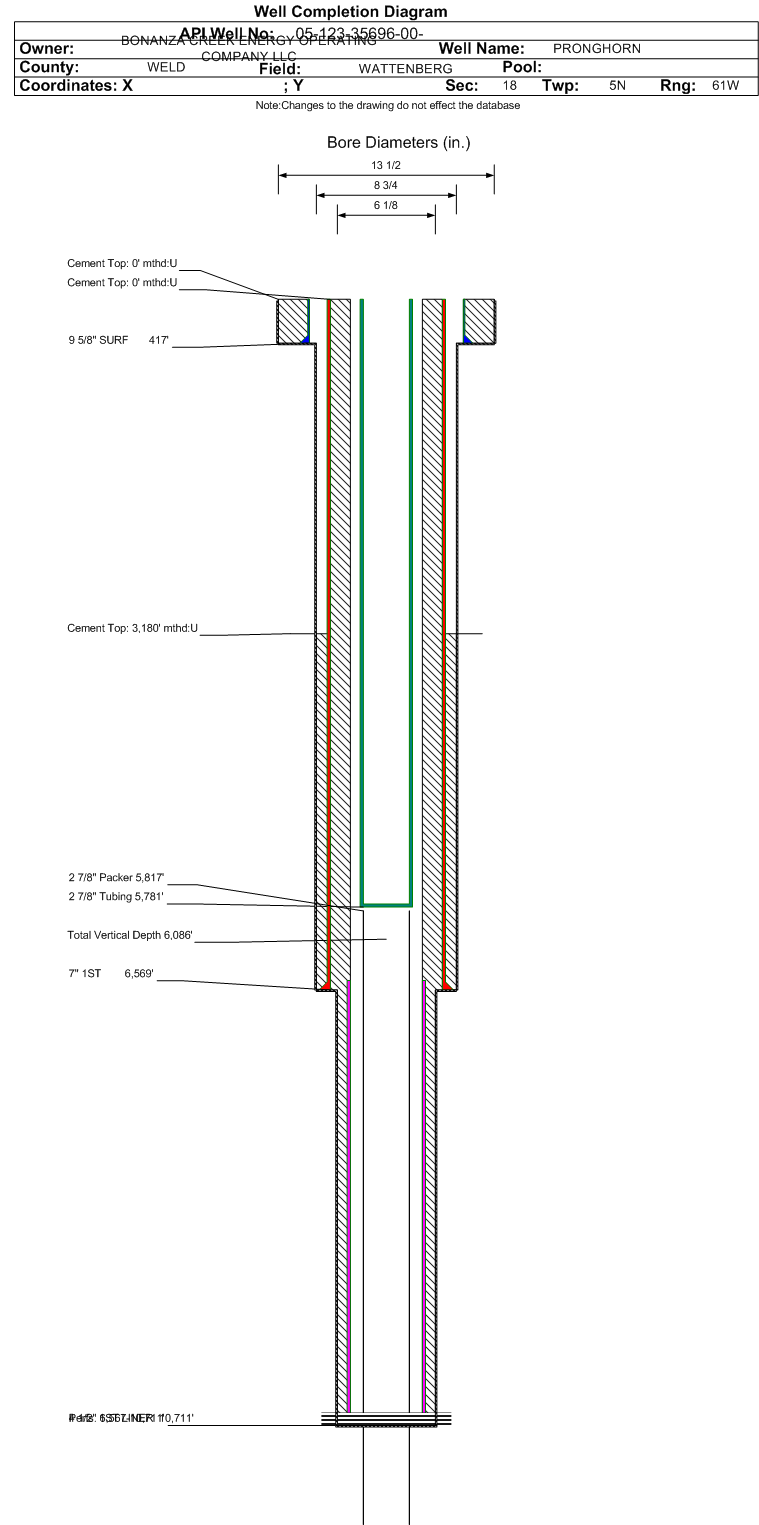

| Wellbore Completed | | Completion Date: | 1/12/2013 | | Spud Date: | 1/7/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 10711 ft. | Measured PB depth: | 10711 ft. | | True Vertical TD: | 6086 ft. | True Vertical PB depth: | 6086 ft. | | Top PZ Location: | Sec:18 Twp: 5N 61W | Footage: 757 FNL 512 FEL | | Bottom Hole Location: | Sec:18 Twp: 5N 61W | Footage: 489 FSL 559 FEL | | Log Types: | Mud, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 417 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 417 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6569 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 733, Top: 3180 ft., Bottom: 6567 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6478 ft., Depth: 10711 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 5886 ft. | | | | | NIOBRARA | 6052 ft. | | | |
Formation NBRR Formation Classification: OW Status: SI - 11/1/2024 Interval Top: 6567 ft. Interval Bottom: 10711 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 2/13/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/16/2013 | Treatment End Date: | 1/16/2013 | | Treatment Summary: | “18 stage Niobrara pumped a total of 49,310 bbls of fluid (pHaser Frac) and 4,176,595# of sand (40/70 Ottawa, 30/50 Ottawa, 20/40 SB Excel), ATP 3,752 psi, ATR 50.1 bpm, Final ISDP 2,681 psi, completed with sliding sleeves and casing packers.” | | Total fluid used in treatment (bbls): | 49310 | Max pressure during treatment (psi): | 5743 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 18 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.87 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 7054 | | Fresh water used in treatment (bbls): | 49310 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 4176595 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 5781 ft. | | Tubing Packer Depth: | 5837 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/11/2012 | Test Method: | flowing | | Hours Tested: | 72 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 443 | | BBLS_OIL | 154 | | BTU_GAS | 1311 | | CALC_BBLS_H2O | 148 | | CALC_BBLS_OIL | 51 | | CALC_GOR | 84 | | CALC_MCF_GAS | 43 | | CASING_PRESS | 240 | | GRAVITY_OIL | 43 | | MCF_GAS | 130 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 6567 ft. | # Of Holes: | | | Interval Bottom: | 10711 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
03/06/2026 |
| Defined Inactive (SI ) | Y | Defined Inactive
10/31/2024 |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
