Wellbore #00 Wellbore Classification: OW Status: SI - 1/1/2025 Measured TD: 11353 ft. Vertical TD: 6991 ft. Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 1/1/2025 | Wellbore Permit | HORIZONTAL | Permit #: | | Expiration Date: | 5/17/2014 | Proposed Top PZ Location: | Sec:14 Twp: 5N 67W | Footage: 2314 FSL 728 FEL | Bottom Hole Location: | Sec:14 Twp: 5N 67W | Footage: 2310 FSL 535 FWL | Proposed Depth/Form: | 11422 ft. | Surface Mineral Owner Same: | No | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 320, Drill Unit: GWA | Casing: | String Type: CONDUCTOR, Hole Size: 18.5 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: , Citings Type: PLANNED | Cement: | Sacks: 6, Top: 0 ft., Bottom: 100 ft. | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 1250 ft., Weight: 36 , Citings Type: PLANNED | Cement: | Sacks: 276, Top: 0 ft., Bottom: 1250 ft. | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7422 ft., Weight: 26 , Citings Type: PLANNED | Cement: | Sacks: 519, Top: , Bottom: 7422 ft. | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7235 ft., Depth: 11422 ft., Weight: 11.6 , Citings Type: PLANNED | Cement: | Sacks: , Top: , Bottom: |
| | |
Wellbore Completed | Completion Date: | 6/24/2013 | Spud Date: | 6/14/2013 | Spud Date Is: | ACTUAL | Measured TD: | 11353 ft. | Measured PB depth: | 11328 ft. | True Vertical TD: | 6991 ft. | True Vertical PB depth: | 6966 ft. | Top PZ Location: | Sec:14 Twp: 5N 67W | Footage: 2321 FSL 938 FEL | Bottom Hole Location: | Sec:14 Twp: 5N 67W | Footage: 2305 FSL 537 FWL | Log Types: | CBL/Mud/Gamma

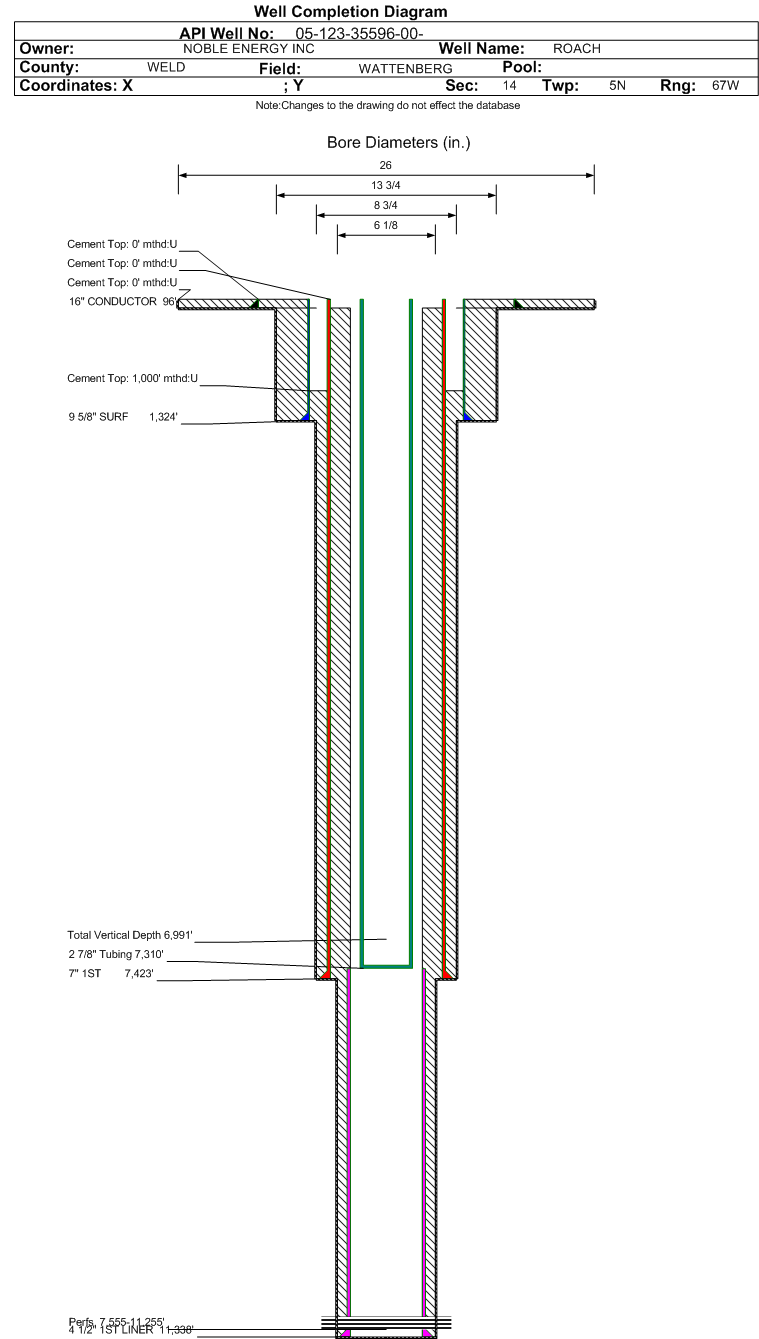

CBL Hard Copy sent. | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 96 ft., Weight: 48.50 , Citings Type: ACTUAL | Cement: | Sacks: 80, Top: 0 ft., Bottom: 96 ft., Determination Method: VISU | Casing: | String Type: SURF, Hole Size: 13.75 in., Size: 9.625 in., Top: 0 ft., Depth: 1324 ft., Weight: 36.00 , Citings Type: ACTUAL | Cement: | Sacks: 652, Top: 0 ft., Bottom: 1324 ft., Determination Method: VISU | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7423 ft., Weight: 26.00 , Citings Type: ACTUAL | Cement: | Sacks: 610, Top: 1000 ft., Bottom: 7423 ft., Determination Method: CBL | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7315 ft., Depth: 11338 ft., Weight: 11.60 , Citings Type: ACTUAL | Cement: | Sacks: 0, Top: , Bottom: , Determination Method: | Formation | Interval Top | Log Bottom | Cored | DSTs | PIERRE | 1456 ft. | | | | PARKMAN | 3720 ft. | | | | SUSSEX | 4205 ft. | | | | SHANNON | 4768 ft. | | | | NIOBRARA | 7319 ft. | | | |
Formation NBRR Formation Classification: OW Status: SI - 10/1/2024 Interval Top: 7555 ft. Interval Bottom: 11255 ft. Completed Information for Formation NIOBRARA | 1st Production Date: | 7/20/2013 | Choke Size: | 0.000 in. | Formation Name: | NIOBRARA | Commingled: | No | Production Method: | | Open Hole Completion: | |
| Formation Treatment | Treatment Type: | FRACTURE STIMULATION | Treatment Date: | 7/10/2013 | Treatment End Date: | 7/10/2013 | Treatment Summary: | Frac'd the Nibrara w/ 2888129 gals of Silverstim and Slick Water with 3004340#'s of Ottawa sand. | Total fluid used in treatment (bbls): | 68764 | Max pressure during treatment (psi): | 7455 | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | Type Of gas: | | Number Of staged intervals: | 20 | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.92 | Recycled water used in treatment (bbls): | 3119 | Total flowback volume recovered (bbls): | 285 | Fresh water used in treatment (bbls): | 65645 | Disposition method For flowback: | RECYCLE | Total proppant used (lbs): | 3004340 | Green completions techniques utilized: | Yes | Reason green techniques Not utilized: |
| Tubing Size: | 2.875 in. | Tubing Setting Depth: | 7310 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 7/24/2013 | Test Method: | FLOWING | Hours Tested: | 24 | Gas Type: | SHALE | Gas Disposal: | SOLD | |
Test Type | Measure |
---|
BBLS_H2O | 211 | BBLS_OIL | 369 | BTU_GAS | 1318 | CALC_BBLS_H2O | 211 | CALC_BBLS_OIL | 369 | CALC_GOR | 1205 | CALC_MCF_GAS | 445 | CASING_PRESS | 2417 | GRAVITY_OIL | 40 | MCF_GAS | 445 | TUBING_PRESS | 1182 |
| Perforation Data: | Interval Top: | 7555 ft. | # Of Holes: | 0 | Interval Bottom: | 11255 ft. | Hole Size: | |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | N | |
Total Oil Produced (Barrels) | 834 |
Total Gas Produced (MCF) | 4748 |
GOR | 5693 |
GOR Determination | BOE |
Average BOE per Day | 4.516 |
Average MCFE per Day | 26.200 |
Federal Financial Assurance | i | |
|
|
