Wellbore #00 Wellbore Classification: OW Status: PR - 8/1/2024 Measured TD: 11814 ft. Vertical TD: 7101 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 8/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 2/24/2014 | | Proposed Top PZ Location: | Sec:29 Twp: 3N 65W | Footage: 1237 FSL 543 FEL | | Bottom Hole Location: | Sec:20 Twp: 3N 65W | Footage: 460 FNL 545 FWL | | Proposed Depth/Form: | 16338 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 200, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 900 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 900 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7470 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 730, Top: , Bottom: 7470 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6357 ft., Depth: 11984 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

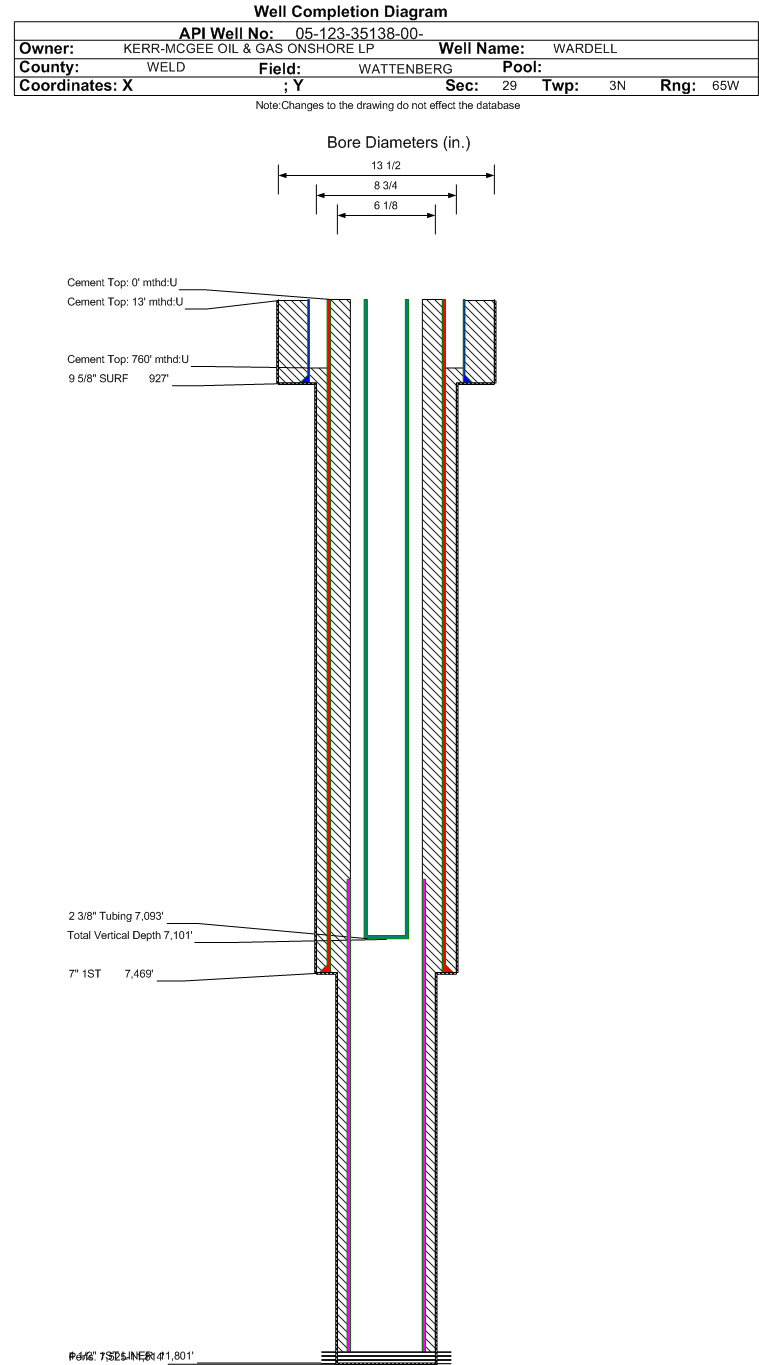

| Wellbore Completed | | Completion Date: | 7/19/2012 | | Spud Date: | 4/8/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 11814 ft. | Measured PB depth: | 11789 ft. | | True Vertical TD: | 7101 ft. | True Vertical PB depth: | 7076 ft. | | Top PZ Location: | Sec:29 Twp: 3N 65W | Footage: 889 FSL 514 FWL | | Bottom Hole Location: | Sec:29 Twp: 3N 65W | Footage: 26 FNL 752 FWL | | Log Types: | CBL; MWD: GR; MPR-GR; MUD | | Log Types: | PRE FORM 5 | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 927 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 13 ft., Bottom: 927 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7469 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 732, Top: 760 ft., Bottom: 7469 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6434 ft., Depth: 11801 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7070 ft. | | | | | NIOBRARA | 7174 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 8/1/2024 Interval Top: 7525 ft. Interval Bottom: 11814 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 10/3/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/27/2012 | Treatment End Date: | 8/28/2012 | | Treatment Summary: | FRACED THROUGH AN OPEN HOLE LINER FROM 7525-11814.
1068720# 40/70, 2256460# 30/50, 160040 SB EXCEL, 3485220# TOTAL SAND.
33528 BBL SILVERSTIM, 38731 BBL FR WATER, 99 BLL LINEAR GEL, 72357 BBL TOTAL FLUID.
| | Total fluid used in treatment (bbls): | 72357 | Max pressure during treatment (psi): | 7395 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 20 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.99 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 6687 | | Fresh water used in treatment (bbls): | 38731 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3485220 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7093 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/1/2012 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 203 | | BTU_GAS | 1225 | | CALC_BBLS_OIL | 203 | | CALC_GOR | 5029 | | CALC_MCF_GAS | 1022 | | CASING_PRESS | 1352 | | GRAVITY_OIL | 53 | | MCF_GAS | 1022 | | TUBING_PRESS | 968 |
| | Perforation Data: | | Interval Top: | 7525 ft. | # Of Holes: | 0 | | Interval Bottom: | 11814 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2063 |
| Total Gas Produced (MCF) | 30224 |
| GOR | 14650 |
| GOR Determination | BOE |
| Average BOE per Day | 19.907 |
| Average MCFE per Day | 115.464 |
| Federal Financial Assurance | i | |
|
|
