COGIS - WELL SCOUT CARD

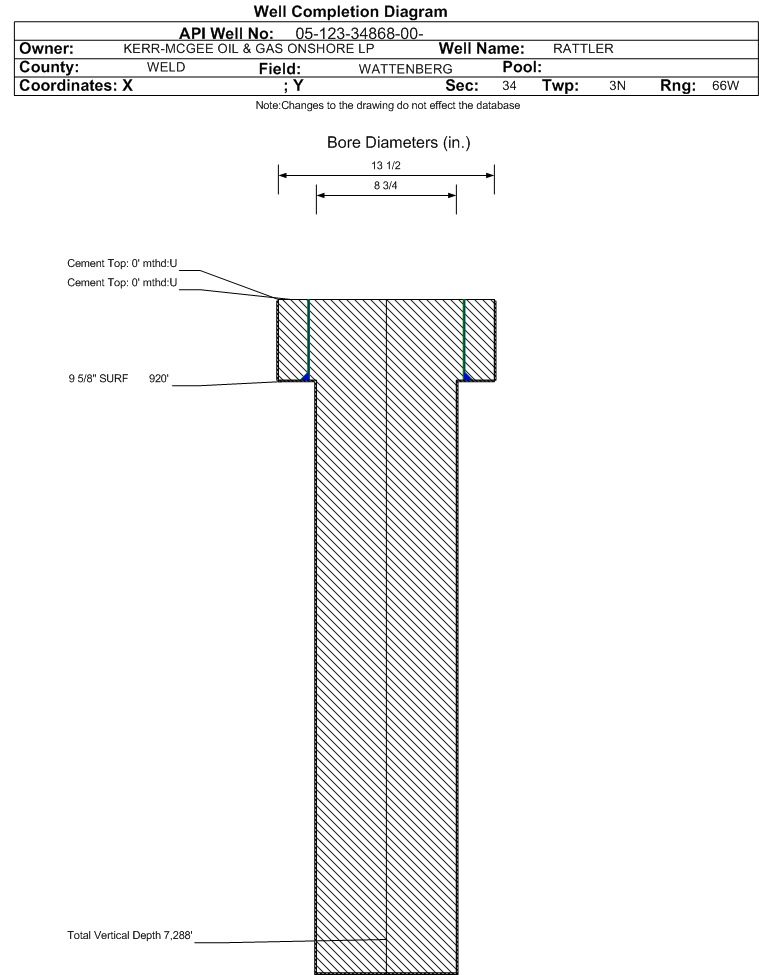

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-34868		Well Classification: OW Status: PR - 2/1/2018
Well Name/No:RATTLER #26N-33HZX
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/1/2018
FacilityID:427104LocationID:331958
County:WELD #123Location:SWSW 34 3N66W 6
Field:WATTENBERG - #90750Elevation:4966 ft.
Basin:DENVER (DJ) BASIN
Planned Location:200FSL  463 FWLLat/Long: 40.174881 / -104.771075Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.174884 / -104.771084Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 8/15/2012
End Date: 8/15/2012
Reported: 9/20/2012
Days to report: 36
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 11/22/2011             Measured TD: 7670 ft.    Vertical TD: 7288 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 11/22/2011
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:12/26/2013
Proposed Top PZ Location:Sec:34 Twp: 3N 66W Footage: 630 FSL  50 FEL
Bottom Hole Location:Sec:33 Twp: 3N 66W Footage: 460 FNL  50 FEL
Proposed Depth/Form:11737 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: 33: E2E2; 34: W2W2
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 900 ft., Weight: 36.0 , Citings Type: PLANNED
Cement:Sacks: 430, Top: 0 ft., Bottom: 900 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7561 ft., Weight: 26.0 , Citings Type: PLANNED
Cement:Sacks: 660, Top: , Bottom: 7561 ft.
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6544 ft., Depth: 11737 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:6/30/2012
Spud Date:3/25/2012Spud Date Is:ACTUAL
Measured TD:7670 ft.Measured PB depth:5805 ft.
True Vertical TD:7288 ft.True Vertical PB depth:5773 ft.
Bottom Hole Location:Sec:33 Twp: 3N 66WFootage: 679 FSL  57 FEL
Log Types:NO OPEN HOLE LOGS
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 920 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 690, Top: 0 ft., Bottom: 920 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7670 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
Additional Cement:String Type: 1ST , Top: 6650 ft., Depth: , Bottom: 7180 ft., Sacks: 227, Method:
Additional Cement:String Type: 1ST , Top: 5805 ft., Depth: , Bottom: 6420 ft., Sacks: 316, Method:
  No formation data to display.

Sidetrack #01             Wellbore Classification: OW             Status: PR - 2/1/2018             Measured TD: 11742 ft.    Vertical TD: 7285 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: OW        PR - 2/1/2018
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:7/5/2014
Proposed Top PZ Location:Sec:33 Twp: 3N 66W Footage: 718 FSL  128 FEL
Bottom Hole Location:Sec:33 Twp: 3N 66W Footage: 482 FNL  65 FEL
Proposed Depth/Form:11731 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 900 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 430, Top: 0 ft., Bottom: 900 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7561 ft., Weight: 26 , Citings Type: PLANNED
Cement:Sacks: 660, Top: , Bottom: 7561 ft.
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6544 ft., Depth: 11737 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:7/20/2012
Spud Date:3/25/2012Spud Date Is:ACTUAL
Measured TD:11742 ft.Measured PB depth:11732 ft.
True Vertical TD:7285 ft.True Vertical PB depth:7285 ft.
Top PZ Location:Sec:33 Twp: 3N 66WFootage: 718 FSL  128 FEL
Bottom Hole Location:Sec:33 Twp: 3N 66WFootage: 482 FNL  65 FEL
Log Types:CBL; LPLOT VH; MPR-GR
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 920 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 690, Top: 0 ft., Bottom: 920 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7670 ft., Weight: 26 , Citings Type: ACTUAL
Cement:Sacks: 742, Top: 710 ft., Bottom: 7670 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6727 ft., Depth: 11732 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
SHARON SPRINGS7168 ft.
NIOBRARA7261 ft.

Formation NBRR                     Formation Classification:  OW                     Status:  PR - 2/1/2018                  Interval Top: 7716 ft.    Interval Bottom: 11742 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/18/2012Choke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:8/14/2012Treatment End Date:8/15/2012
Treatment Summary:FRAC'D THROUGH AN OPEN HOLE LINER FROM 7716-11742. AVERAGE TREATING PRESSURE 4948, AVERAGE RATE 61. 969540# 40/70, 2071140# 30/50, 240060# SB EXCEL, TOTAL SAND WEIGHT 3280740#.
Total fluid used in treatment (bbls):73522Max pressure during treatment (psi):6125
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.30
Type Of gas:Number Of staged intervals:30
Total acid used in treatment (bbls):Min frac gradient (psi/ft):0.97
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):16935
Fresh water used in treatment (bbls):41172Disposition method For flowback:DISPOSAL
Total proppant used (lbs):3280740Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:7251 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/10/2012Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 495
BTU_GAS 1265
CALC_BBLS_OIL 495
CALC_GOR 2167
CALC_MCF_GAS 1072
CASING_PRESS 2686
GRAVITY_OIL 49
MCF_GAS 1072
TUBING_PRESS 1710
Perforation Data:
Interval Top:7716 ft.# Of Holes:0
Interval Bottom:11742 ft.Hole Size:0 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)6803
Total Gas Produced (MCF)56224
GOR8264
GOR DeterminationBOE
Average BOE per Day44.933
Average MCFE per Day260.625

 Federal Financial Assurance  i

 Tribal Well  i No
