Wellbore #00 Wellbore Classification: OW Status: PR - 4/1/2022 Measured TD: 11764 ft. Vertical TD: 7301 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 4/1/2022 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 12/26/2013 | | Proposed Top PZ Location: | Sec:34 Twp: 3N 66W | Footage: 705 FSL 560 FWL | | Bottom Hole Location: | Sec:34 Twp: 3N 66W | Footage: 488 FNL 495 FWL | | Proposed Depth/Form: | 11716 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 160, Drill Unit: W/2W/2 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 900 ft., Weight: 36.0 , Citings Type: PLANNED | | Cement: | Sacks: 430, Top: 0 ft., Bottom: 900 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7535 ft., Weight: 26.0 , Citings Type: PLANNED | | Cement: | Sacks: 660, Top: , Bottom: 7535 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6519 ft., Depth: 11716 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

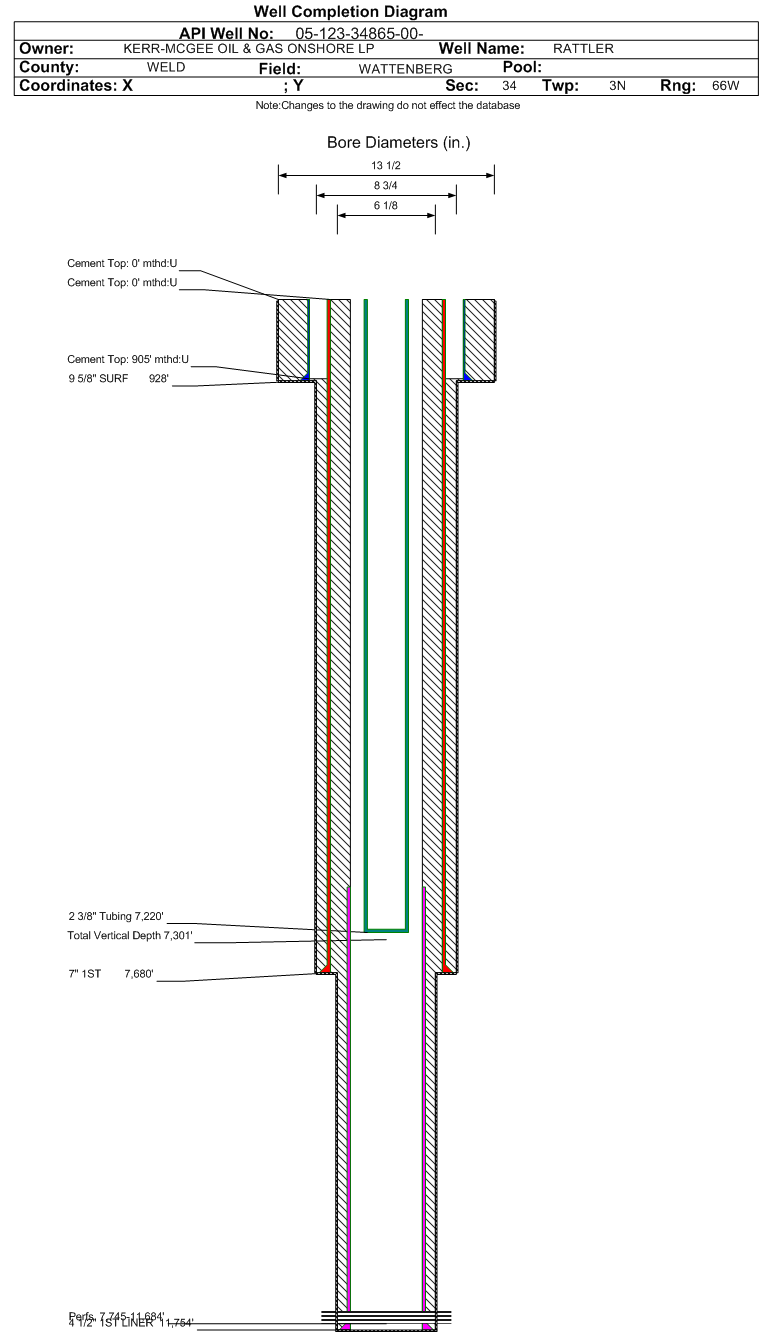

| Wellbore Completed | | Completion Date: | 6/17/2012 | | Spud Date: | 3/24/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 11764 ft. | Measured PB depth: | 11753 ft. | | True Vertical TD: | 7301 ft. | True Vertical PB depth: | 7290 ft. | | Top PZ Location: | Sec:34 Twp: 3N 66W | Footage: 705 FSL 560 FWL | | Bottom Hole Location: | Sec:34 Twp: 3N 66W | Footage: 488 FNL 495 FWL | | Log Types: | PRELIMINARY FORM 5 | | Log Types: | CS-NGR; LPLOT VH; CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 928 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 680, Top: 0 ft., Bottom: 928 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7680 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 744, Top: 905 ft., Bottom: 7680 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6702 ft., Depth: 11754 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7160 ft. | | | | | NIOBRARA | 7271 ft. | | | |
Formation NBRR Formation Classification: OW Status: PR - 4/1/2022 Interval Top: 7745 ft. Interval Bottom: 11684 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/20/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/12/2012 | Treatment End Date: | 8/13/2012 | | Treatment Summary: | FRAC'D THROUGH AN OPEN HOLE LINER FROM 7745-11684. AVERAGE TREATING PRESSURE 5055, AVERAGE RATE 60.6.
969360# 40/70, 269980# 30/50, 242440# 40/70, 242440# SB EXCEL, TOTAL SAND WEIGHT 3524220# | | Total fluid used in treatment (bbls): | 73068 | Max pressure during treatment (psi): | 7297 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 30 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.97 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 17860 | | Fresh water used in treatment (bbls): | 41102 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 3524220 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7220 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/9/2012 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 441 | | BTU_GAS | 1265 | | CALC_BBLS_OIL | 441 | | CALC_GOR | 2385 | | CALC_MCF_GAS | 1052 | | CASING_PRESS | 2682 | | GRAVITY_OIL | 49 | | MCF_GAS | 1052 | | TUBING_PRESS | 1798 |
| | Perforation Data: | | Interval Top: | 7745 ft. | # Of Holes: | 0 | | Interval Bottom: | 11684 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2948 |
| Total Gas Produced (MCF) | 34818 |
| GOR | 11810 |
| GOR Determination | BOE |
| Average BOE per Day | 24.353 |
| Average MCFE per Day | 141.248 |
| Federal Financial Assurance | i | |
|
|
