Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2021 Measured TD: 11895 ft. Vertical TD: 7414 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2021 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 9/29/2013 | | Proposed Top PZ Location: | Sec:27 Twp: 3N 66W | Footage: 626 FSL 1695 FWL | | Bottom Hole Location: | Sec:27 Twp: 3N 66W | Footage: 460 FNL 1695 FWL | | Proposed Depth/Form: | 11902 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 320, Drill Unit: W2 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 850 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 430, Top: 0 ft., Bottom: 850 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7763 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 740, Top: , Bottom: 7763 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6709 ft., Depth: 11902 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

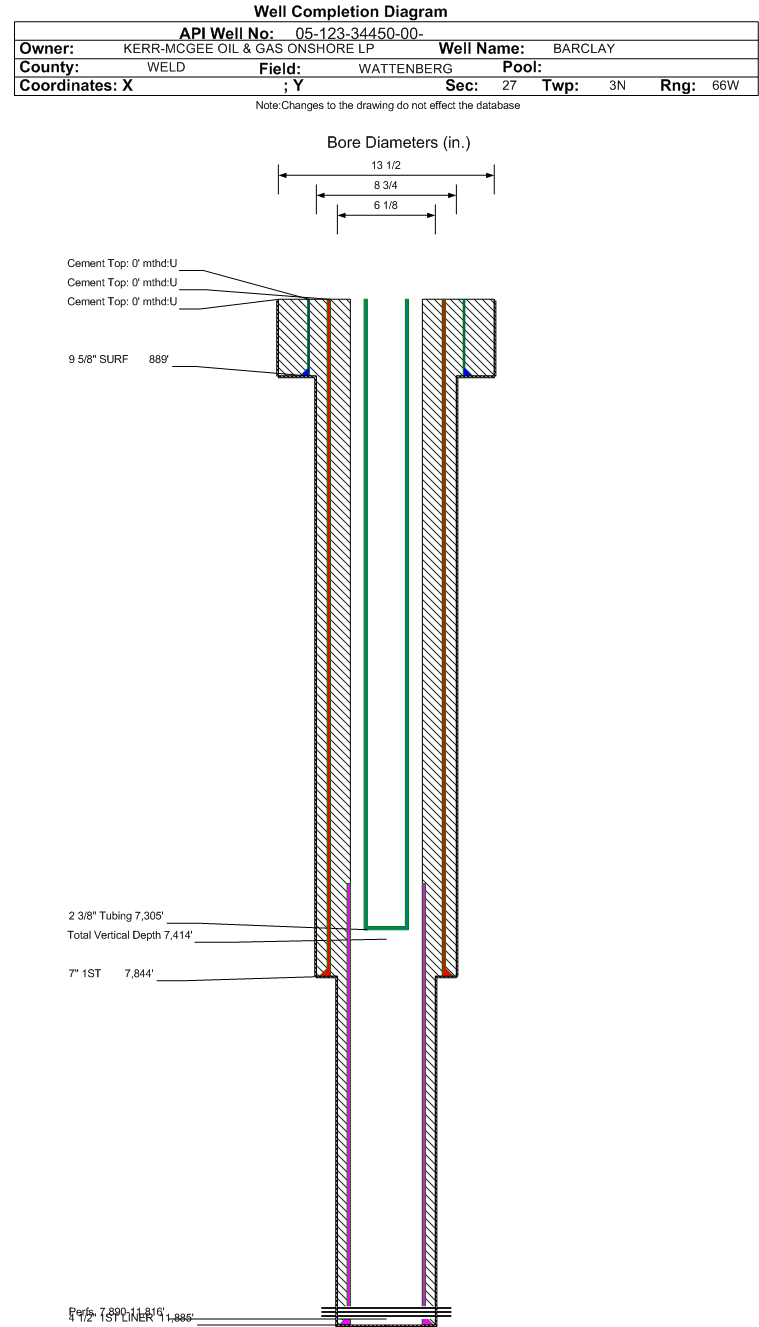

| Wellbore Completed | | Completion Date: | 2/21/2012 | | Spud Date: | 2/6/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 11895 ft. | Measured PB depth: | 11885 ft. | | True Vertical TD: | 7414 ft. | True Vertical PB depth: | 7414 ft. | | Top PZ Location: | Sec:27 Twp: 3N 66W | Footage: 678 FSL 1753 FWL | | Bottom Hole Location: | Sec:27 Twp: 3N 66W | Footage: 466 FNL 1624 FWL | | Log Types: | PRELIMINARY FORM 5 | | Log Types: | CBL; HZ; NFE-GR | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 889 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 660, Top: 0 ft., Bottom: 889 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 7844 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 754, Top: 0 ft., Bottom: 7844 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 6769 ft., Depth: 11885 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHARON SPRINGS | 7160 ft. | | | | | NIOBRARA | 7236 ft. | | | | | FORT HAYS | 7630 ft. | | | | | CODELL | 7835 ft. | | | |
Formation CODL Formation Classification: GW Status: PR - 5/1/2021 Interval Top: 7890 ft. Interval Bottom: 11816 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 5/26/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Date: | 5/15/2012 | | Treatment Summary: | FRAC'D THROUGH AN OPEN HOLE LINER FROM 7890-11816. AVERAGE TREATING PRESSURE 4749, AVERAGE RATE 56, TOTAL BBLS OF FLUID 61158, TOTAL SAND WEIGHT 2774086. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7305 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/5/2012 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 200 | | BTU_GAS | 1276 | | CALC_BBLS_OIL | 200 | | CALC_GOR | 2340 | | CALC_MCF_GAS | 468 | | CASING_PRESS | 2074 | | GRAVITY_OIL | 52 | | MCF_GAS | 468 | | TUBING_PRESS | 1228 |
| | Perforation Data: | | Interval Top: | 7890 ft. | # Of Holes: | | | Interval Bottom: | 11816 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1114 |
| Total Gas Produced (MCF) | 23317 |
| GOR | 20930 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.990 |
| Average MCFE per Day | 81.130 |
| Federal Financial Assurance | i | |
|
|
