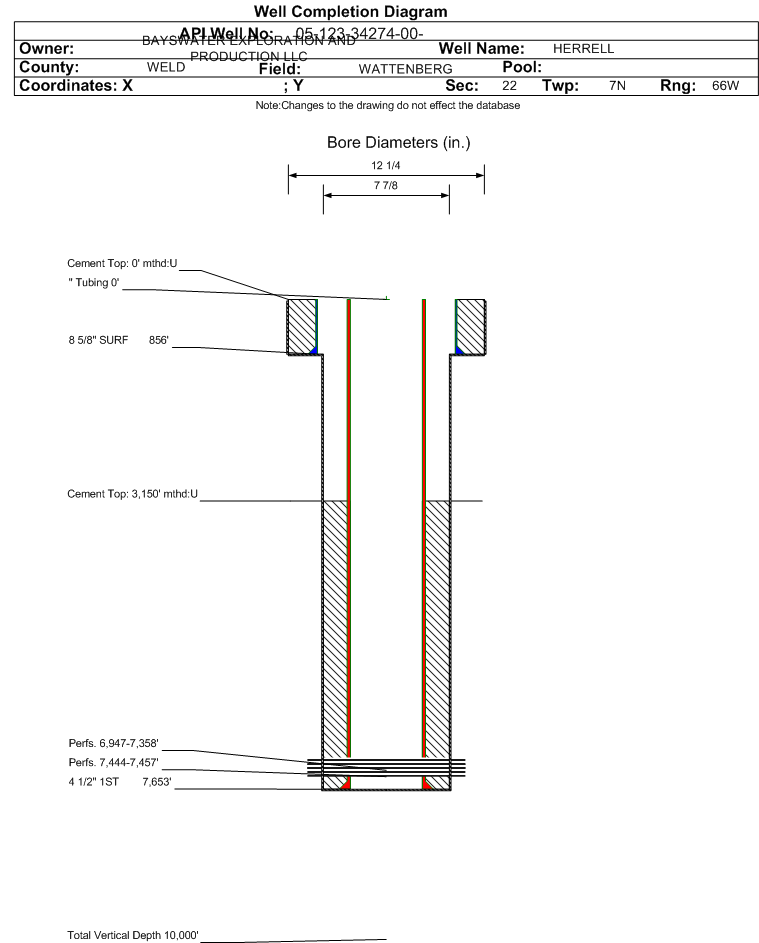

Wellbore #00 Wellbore Classification: OW Status: PA - 4/7/2023 Measured TD: 7660 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 4/7/2023 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 8/30/2013 | | Proposed Depth/Form: | 7660 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: E/2 NE/4 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 80, Drill Unit: E/2 NE/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.875 in., Top: 0 ft., Depth: 840 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 588, Top: 0 ft., Bottom: 840 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7660 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 808, Top: 0 ft., Bottom: 7660 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/11/2011 | | Spud Date: | 11/6/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7660 ft. | Measured PB depth: | 7635 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | Density, Neutron, Induction, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 856 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 0 ft., Bottom: 856 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7653 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 860, Top: 1357 ft., Bottom: 7653 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3850 ft. | | | | | SUSSEX | 4500 ft. | | | | | SHANNON | 5043 ft. | | | | | NIOBRARA | 7134 ft. | | | | | FORT HAYS | 7421 ft. | | | | | CODELL | 7443 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 2/9/2023 Interval Top: 7444 ft. Interval Bottom: 7457 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 5/17/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/30/2011 | | Treatment Summary: | 273,850 gals, (176,856 gals SLF), 180,160 lbs 30/50 White |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 2 | | BBLS_OIL | 99 | | BTU_GAS | 1224 | | CALC_BBLS_H2O | 4 | | CALC_BBLS_OIL | 198 | | CALC_GOR | 797 | | CALC_MCF_GAS | 158 | | CASING_PRESS | 1900 | | GRAVITY_OIL | 42 | | MCF_GAS | 79 |
| | Perforation Data: | | Interval Top: | 7444 ft. | # Of Holes: | 52 | | Interval Bottom: | 7457 ft. | Hole Size: | 0.4 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 4/7/2023 Interval Top: 6947 ft. Interval Bottom: 7457 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 11/5/2013 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 6947 ft. | # Of Holes: | 332 | | Interval Bottom: | 7457 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 2/9/2023 Interval Top: 6947 ft. Interval Bottom: 7358 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/8/2013 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/4/2013 | Treatment End Date: | 1/4/2013 | | Treatment Summary: | NBRR A- 188,748 gals(110,838 gals SLF),100,140 lbs 30/50 White
NBRR B- 277,410 gals(202,776 gals SLF), 180,060 lbs 30/50 White
NBRR C- 191,478 gals(114,366 gals SLF),100,000 lbs 30/50 White | | Total fluid used in treatment (bbls): | 15658 | Max pressure during treatment (psi): | 5883 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 0.25 | | Type Of gas: | | Number Of staged intervals: | 3 | | Total acid used in treatment (bbls): | 24 | Min frac gradient (psi/ft): | 0.97 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 12795 | | Fresh water used in treatment (bbls): | 15658 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 380200 | Green completions techniques utilized: | No | | Reason green techniques Not utilized: PIPELINE |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 6 | | BBLS_OIL | 37 | | BTU_GAS | 1328 | | CALC_BBLS_H2O | 12 | | CALC_BBLS_OIL | 74 | | CALC_GOR | 351 | | CALC_MCF_GAS | 26 | | CASING_PRESS | 400 | | GRAVITY_OIL | 42 | | MCF_GAS | 13 |
| | Perforation Data: | | Interval Top: | 6947 ft. | # Of Holes: | 280 | | Interval Bottom: | 7358 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/07/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
