Wellbore #00 Wellbore Classification: OW Status: PA - 4/10/2018 Measured TD: 8179 ft. Vertical TD: 8060 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 4/10/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/28/2013 | | Proposed Top PZ Location: | Sec:10 Twp: 2N 67W | Footage: 50 FNL 1310 FEL | | Bottom Hole Location: | Sec:10 Twp: 2N 67W | Footage: 50 FNL 1310 FEL | | Proposed Depth/Form: | 8138 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-430 , Unit Acreage: 160, Drill Unit: GWA |
| | |

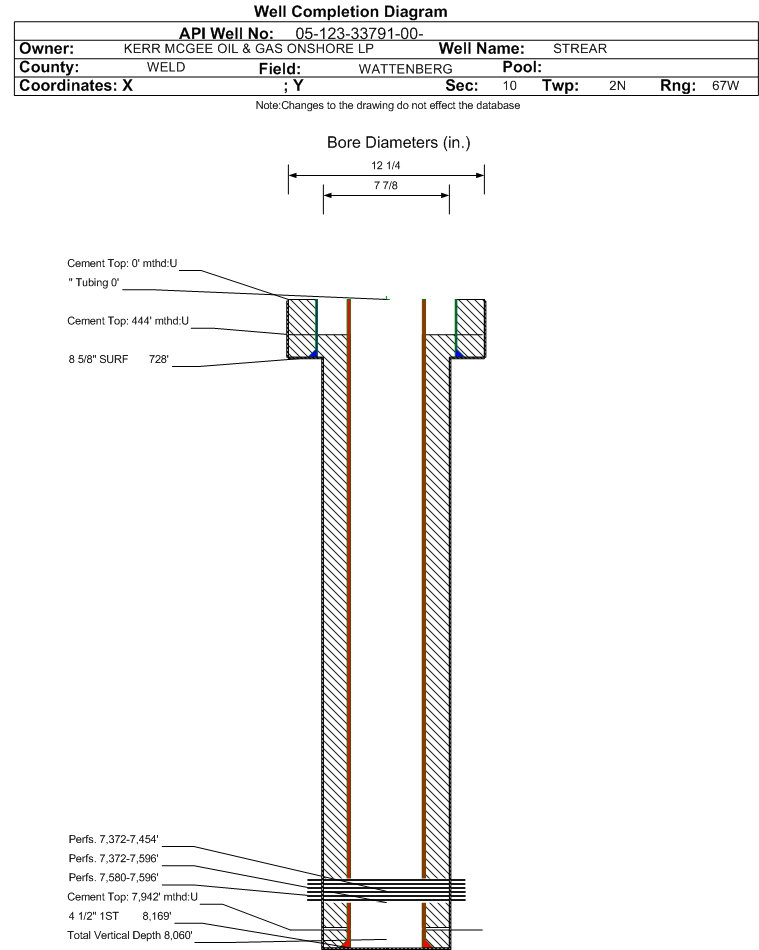

| Wellbore Completed | | Completion Date: | 3/15/2012 | | Spud Date: | 3/11/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8179 ft. | Measured PB depth: | 8147 ft. | | True Vertical TD: | 8060 ft. | True Vertical PB depth: | 8028 ft. | | Top PZ Location: | Sec:10 Twp: 2N 67W | Footage: 41 FNL 1313 FEL | | Bottom Hole Location: | Sec:10 Twp: 2N 67W | Footage: 32 FNL 1308 FEL | | Log Types: | CBL; NO OPEN HOLE LOGS RUN | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 728 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 460, Top: 0 ft., Bottom: 728 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8169 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 44, Top: 7942 ft., Bottom: 8169 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7905 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1003, Top: 444 ft., Bottom: 7910 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 7905 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1003, Top: 444 ft., Bottom: 7910 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4065 ft. | | | | | SUSSEX | 4454 ft. | | | | | SHANNON | 5010 ft. | | | | | NIOBRARA | 7343 ft. | | | | | CODELL | 7580 ft. | | | | | FORT HAYS | 7582 ft. | | | | | J SAND | 8038 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 9/19/2012 Interval Top: 7580 ft. Interval Bottom: 7596 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 5/8/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/3/2012 | | Treatment Summary: | PERF CODL 7580-7596 HOLES 64 SIZE .38
Frac CODL down 4.5" casing w/ 194,208 gal slickwater w/ 150,360# 40/70, 4,000# 20/40.
Broke @ 3,284 psi @ 4.8 bpm. ATP=4,699 psi; MTP=4,803 psi; ATR=59.6 bpm; ISDP=3,331 psi |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7580 ft. | # Of Holes: | 64 | | Interval Bottom: | 7596 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 4/10/2018 Interval Top: 7372 ft. Interval Bottom: 7596 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 5/9/2012 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/3/2012 | | Treatment Summary: | PERF NBRR 7372-7454 HOLES 60 SIZE .47
PERF CODL 7580-7596 HOLES 64 SIZE .38 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 20 | | BTU_GAS | 1310 | | CALC_BBLS_OIL | 20 | | CALC_GOR | 50 | | CALC_MCF_GAS | 1 | | CASING_PRESS | 1672 | | GRAVITY_OIL | 49 | | MCF_GAS | 1 |
| | Perforation Data: | | Interval Top: | 7372 ft. | # Of Holes: | 124 | | Interval Bottom: | 7596 ft. | Hole Size: | 0.47 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 9/19/2012 Interval Top: 7372 ft. Interval Bottom: 7454 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 5/9/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/3/2012 | | Treatment Summary: | PERF NBRR 7372-7454 HOLES 60 SIZE .47
Frac NBRR down 4.5" casing w/ 250 gal 15% HCl & 240,494 gal slickwater w/ 199,920# 40/70, 4,000# 20/40.
Broke @ 3,222 psi @ 4.8 bpm. ATP=4,710 psi; MTP=5,160 psi; ATR=59.5 bpm; ISDP=3,516 psi |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7372 ft. | # Of Holes: | 60 | | Interval Bottom: | 7454 ft. | Hole Size: | 0.47 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/10/2018 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
