Wellbore #00 Wellbore Classification: OW Status: PA - 8/17/2017 Measured TD: 7750 ft. Vertical TD: 7664 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 8/17/2017 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/28/2013 | | Proposed Top PZ Location: | Sec:10 Twp: 2N 67W | Footage: 1570 FNL 1595 FEL | | Bottom Hole Location: | Sec:10 Twp: 2N 67W | Footage: 1570 FNL 1595 FEL | | Proposed Depth/Form: | 7701 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-430 , Unit Acreage: 160, Drill Unit: NE/4 | | Formation And Spacing: | Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 160, Drill Unit: NE/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 660 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 462, Top: 0 ft., Bottom: 660 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7701 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: , Bottom: 7701 ft. |
| | |

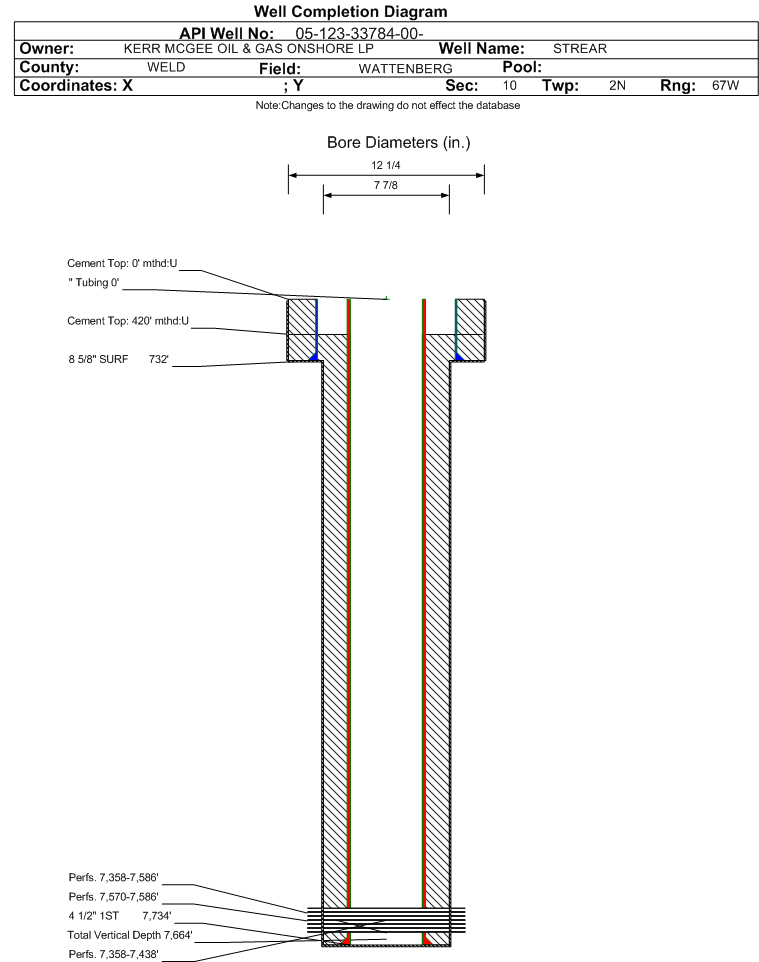

| Wellbore Completed | | Completion Date: | 3/3/2012 | | Spud Date: | 2/28/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 7750 ft. | Measured PB depth: | 7712 ft. | | True Vertical TD: | 7664 ft. | True Vertical PB depth: | 7626 ft. | | Top PZ Location: | Sec:10 Twp: 2N 67W | Footage: 1563 FNL 1603 FEL | | Bottom Hole Location: | Sec:10 Twp: 2N 67W | Footage: 1561 FNL 1602 FEL | | Log Types: | CBL; HRI; CD-CN-ML | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 732 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 460, Top: 0 ft., Bottom: 732 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7734 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1093, Top: 420 ft., Bottom: 7734 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4044 ft. | | | | | SUSSEX | 4443 ft. | | | | | SHANNON | 5010 ft. | | | | | NIOBRARA | 7303 ft. | | | | | FORT HAYS | 7545 ft. | | | | | CODELL | 7567 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 9/19/2012 Interval Top: 7570 ft. Interval Bottom: 7586 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 5/9/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/23/2012 | | Treatment Summary: | PERF CODL 7570-7586 HOLES 64 SIZE .38
Frac CODL down 4.5" casing w/ 203,994 gal slickwater. No proppant used on this job.
Broke @ 4,091 psi @ 5.2 bpm. ATP=4,566 psi; MTP=5,554 psi; ATR=60.2 bpm; ISDP=3,185 psi |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7570 ft. | # Of Holes: | 64 | | Interval Bottom: | 7586 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 8/25/2017 Interval Top: 7358 ft. Interval Bottom: 7586 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 5/9/2012 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/23/2012 | | Treatment Summary: | PERF NBRR 7358-7370 HOLES 60 SIZE .47
PERF CODL 7570-7586 HOLES 64 SIZE .38 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/10/2012 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 20 | | BTU_GAS | 1310 | | CALC_BBLS_OIL | 20 | | CALC_GOR | 1800 | | CALC_MCF_GAS | 36 | | CASING_PRESS | 923 | | GRAVITY_OIL | 49 | | MCF_GAS | 36 |
| | Perforation Data: | | Interval Top: | 7358 ft. | # Of Holes: | 124 | | Interval Bottom: | 7586 ft. | Hole Size: | 0.47 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 4/13/2017 Interval Top: 7358 ft. Interval Bottom: 7438 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/23/2012 | | Treatment Summary: | PERF NBRR 7358-7370 HOLES 60 SIZE .47
Frac NBRR down 4.5" casing w/ 250 gal 15% HCl & 245,786 gal slickwater. No proppant used on this job.
Broke @ 3,548 psi @ 2.5 bpm. ATP=4,692 psi; MTP=5,645 psi; ATR=60.4 bpm; ISDP=3,201 psi |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7358 ft. | # Of Holes: | 60 | | Interval Bottom: | 7438 ft. | Hole Size: | 0.47 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/25/2017 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
