Wellbore #00 Wellbore Classification: OW Status: PA - 8/10/2021 Measured TD: 7409 ft. Vertical TD: 7263 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 8/10/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/4/2013 | | Proposed Top PZ Location: | Sec:18 Twp: 4N 64W | Footage: 79 FNL 1338 FEL | | Bottom Hole Location: | Sec:18 Twp: 4N 64W | Footage: 68 FNL 1339 FEL | | Proposed Depth/Form: | 7339 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 650 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 650 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7339 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 671, Top: , Bottom: 7339 ft. |
| | |

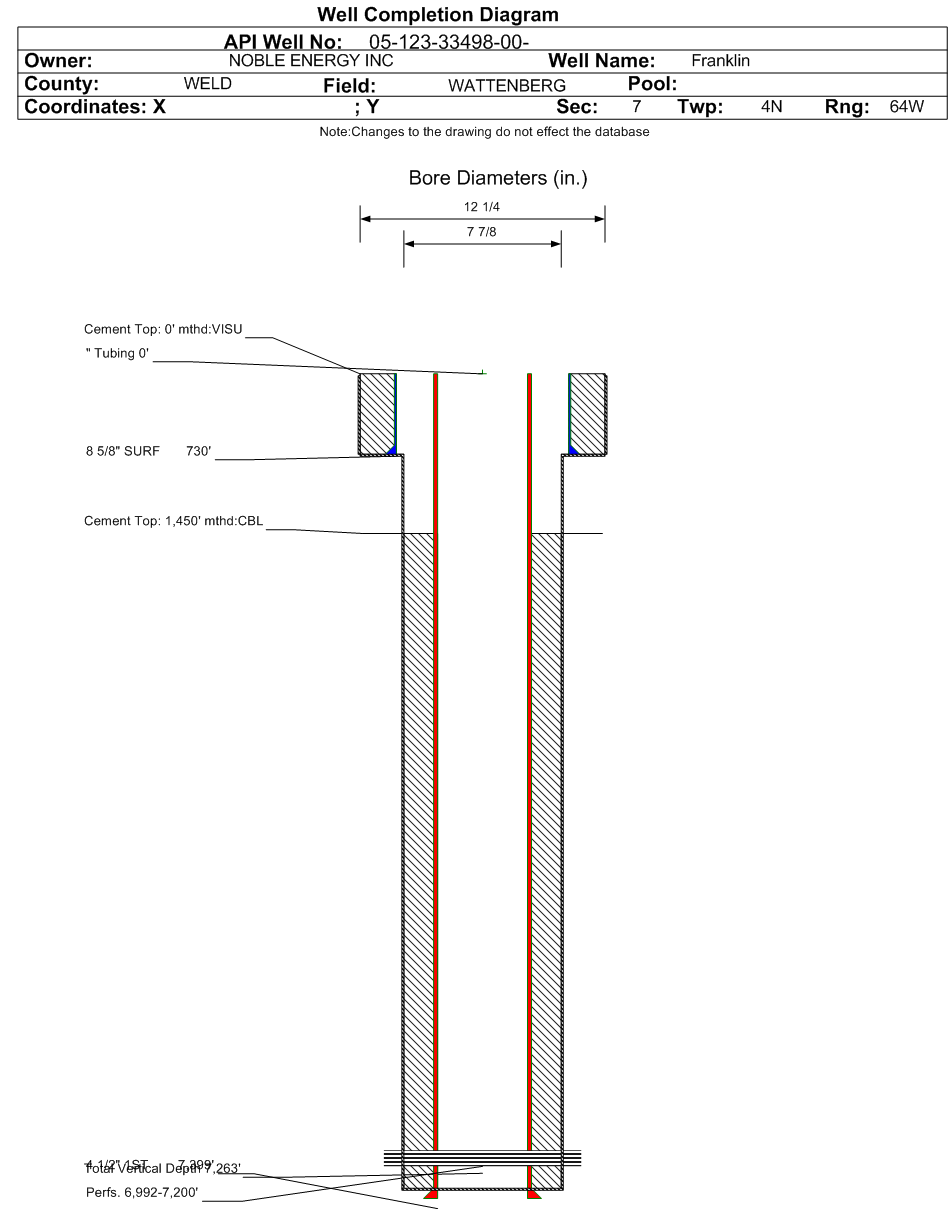

| Wellbore Completed | | Completion Date: | 9/27/2011 | | Spud Date: | 9/23/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7409 ft. | Measured PB depth: | 7354 ft. | | True Vertical TD: | 7263 ft. | True Vertical PB depth: | 7208 ft. | | Top PZ Location: | Sec:18 Twp: 4N 64W | Footage: 79 FNL 1338 FEL | | Bottom Hole Location: | Sec:18 Twp: 4N 64W | Footage: 68 FNL 1339 FEL | | Log Types: | CBL/GRL/CCL/VDL, DSNL/SDL/ACL/TRL. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 730 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 288, Top: 0 ft., Bottom: 730 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7399 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 595, Top: 1450 ft., Bottom: 7399 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6879 ft. | | | | | FORT HAYS | 7160 ft. | | | | | CODELL | 7184 ft. | | | |
Formation CODL Formation Classification: Status: CM - 10/1/2020 Interval Top: 7186 ft. Interval Bottom: 7200 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7186 ft. | # Of Holes: | 56 | | Interval Bottom: | 7200 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: Status: AB - 8/10/2021 Interval Top: 6992 ft. Interval Bottom: 7200 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 10/24/2011 | Choke Size: | 0.000 in. | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 10/8/2011 | | Treatment Summary: | Frac'd the Niobrara-Codell w/ 269178 gals of Silverstim and Slick Water with 493,800#'s of Ottawa sand.
The Codell is producing through a Composite Flow Through Plug.
Commingle the Niobrara and Codell. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/28/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 17 | | BBLS_OIL | 45 | | BTU_GAS | 1262 | | CALC_BBLS_H2O | 17 | | CALC_BBLS_OIL | 45 | | CALC_GOR | 7177 | | CALC_MCF_GAS | 323 | | CASING_PRESS | 262 | | GRAVITY_OIL | 56 | | MCF_GAS | 323 |
| | Perforation Data: | | Interval Top: | 6992 ft. | # Of Holes: | 106 | | Interval Bottom: | 7200 ft. | Hole Size: | 0 in. |
|
Formation NBRR Formation Classification: Status: CM - 10/1/2020 Interval Top: 6992 ft. Interval Bottom: 7081 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6992 ft. | # Of Holes: | 50 | | Interval Bottom: | 7081 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/10/2021 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
