Wellbore #00 Wellbore Classification: GW Status: PA - 2/2/2023 Measured TD: 7450 ft. Vertical TD: 7370 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 2/2/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 4/28/2013 | | Proposed Top PZ Location: | Sec:4 Twp: 3N 65W | Footage: 1313 FNL 1305 FEL | | Bottom Hole Location: | Sec:4 Twp: 3N 65W | Footage: 1314 FNL 1304 FEL | | Proposed Depth/Form: | 7364 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: NE/4 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: NE/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 600 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 219, Top: , Bottom: 600 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7364 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 102, Top: 6734 ft., Bottom: 7364 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4808 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 83, Top: 4208 ft., Bottom: 4808 ft. |
| | |

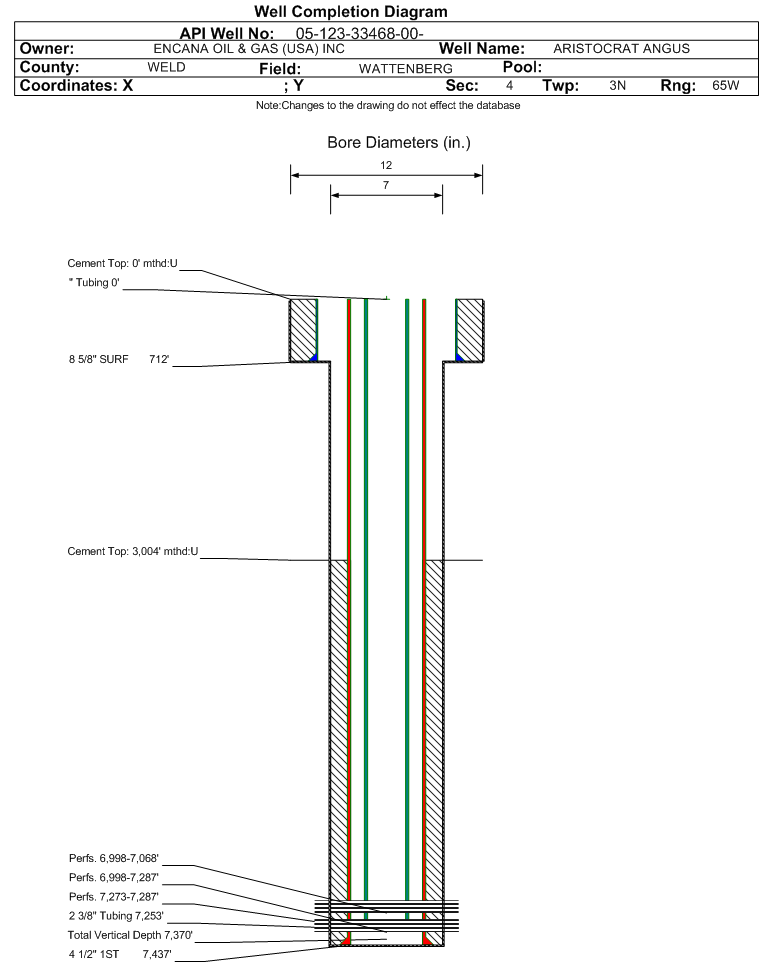

| Wellbore Completed | | Completion Date: | 8/8/2012 | | Spud Date: | 8/3/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 7450 ft. | Measured PB depth: | 7437 ft. | | True Vertical TD: | 7370 ft. | True Vertical PB depth: | 7357 ft. | | Top PZ Location: | Sec:4 Twp: 3N 65W | Footage: 1313 FNL 1305 FEL | | Bottom Hole Location: | Sec:4 Twp: 3N 65W | Footage: 1314 FNL 1304 FEL | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 712 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 275, Top: 0 ft., Bottom: 722 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7437 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 595, Top: 3004 ft., Bottom: 7450 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4504 ft. | | | | | NIOBRARA | 6992 ft. | | | | | CODELL | 7272 ft. | | | |
Formation CODL Formation Classification: GW Status: CM - 3/5/2013 Interval Top: 7273 ft. Interval Bottom: 7287 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 12/29/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/28/2012 | Treatment End Date: | 9/18/2012 | | Treatment Summary: | Frac'd the Codell with 76,736 gal Hiway Hybrid cross linked gel containing 132,291# 20/40 sand. 09-06-12 | | Total fluid used in treatment (bbls): | 3125 | Max pressure during treatment (psi): | 5724 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.95 | | Recycled water used in treatment (bbls): | 3125 | Total flowback volume recovered (bbls): | 825 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 132896 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7273 ft. | # Of Holes: | 42 | | Interval Bottom: | 7287 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 2/2/2023 Interval Top: 6998 ft. Interval Bottom: 7287 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 12/29/2012 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 12/31/2012 | Treatment End Date: | N/A | | Treatment Summary: | Set CBP @ 6960'. 09-15-12
Drilled out CBP and CFP to commingle the NBRR-CDL. 09-18-12 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7253 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/31/2012 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 30 | | BBLS_OIL | 55 | | BTU_GAS | 1369 | | CALC_BBLS_H2O | 30 | | CALC_BBLS_OIL | 55 | | CALC_GOR | 12618 | | CALC_MCF_GAS | 694 | | CASING_PRESS | 775 | | GRAVITY_OIL | 61 | | MCF_GAS | 694 | | TUBING_PRESS | 484 |
| | Perforation Data: | | Interval Top: | 6998 ft. | # Of Holes: | 90 | | Interval Bottom: | 7287 ft. | Hole Size: | 0.42 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 3/5/2013 Interval Top: 6998 ft. Interval Bottom: 7068 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/29/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/28/2012 | Treatment End Date: | 9/18/2012 | | Treatment Summary: | Set CFP @ 7120'. 09-06-12
Frac'd the Niobrara 6998' - 7004', 7062' - 7068' (48 holes), w/ 92,973 gals Hiway
Hybrid cross linked gel containing 132,896# 20/40 sand. 09-06-12 | | Total fluid used in treatment (bbls): | 3125 | Max pressure during treatment (psi): | 5724 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.34 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.95 | | Recycled water used in treatment (bbls): | 3125 | Total flowback volume recovered (bbls): | 825 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 132896 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6998 ft. | # Of Holes: | 48 | | Interval Bottom: | 7068 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 02/02/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
