Wellbore #00 Wellbore Classification: OW Status: PA - 5/14/2021 Measured TD: 7779 ft. Vertical TD: 7325 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 5/14/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/30/2013 | | Proposed Top PZ Location: | Sec:20 Twp: 6N 66W | Footage: 1302 FNL 1240 FEL | | Bottom Hole Location: | Sec:20 Twp: 6N 66W | Footage: 1302 FNL 1240 FEL | | Proposed Depth/Form: | 7691 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 381-5 , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 650 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 650 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7691 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 185, Top: 6924 ft., Bottom: 7691 ft. |
| | |

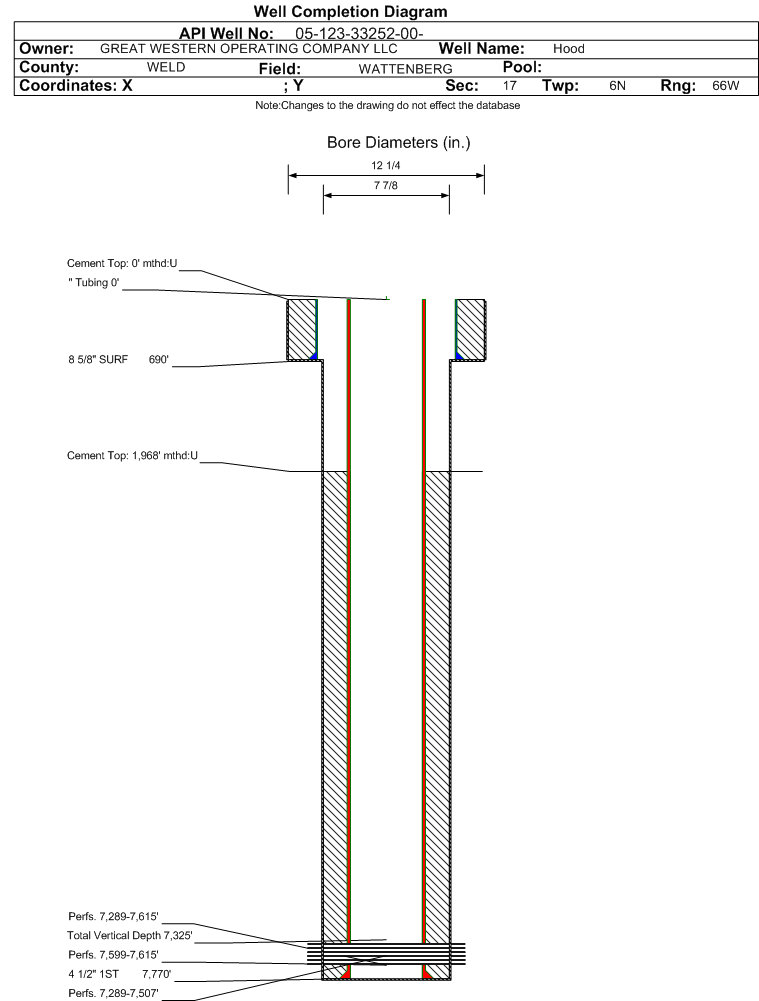

| Wellbore Completed | | Completion Date: | 11/27/2011 | | Spud Date: | 11/22/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7779 ft. | Measured PB depth: | 7756 ft. | | True Vertical TD: | 7325 ft. | True Vertical PB depth: | 7154 ft. | | Top PZ Location: | Sec:20 Twp: 6N 66W | Footage: 1302 FNL 1240 FEL | | Bottom Hole Location: | Sec:20 Twp: 6N 66W | Footage: 1302 FNL 1240 FEL | | Log Types: | Induction
Gamma Ray
Cement Bond
Triple Combo | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 690 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 490, Top: 0 ft., Bottom: 690 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7770 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 610, Top: 1968 ft., Bottom: 7770 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2656 ft. | | | | | PARKMAN | 3838 ft. | | | | | SUSSEX | 4410 ft. | | | | | SHANNON | 5157 ft. | | | | | NIOBRARA | 7285 ft. | | | | | FORT HAYS | 7565 ft. | | | | | CODELL | 7598 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 2/8/2019 Interval Top: 7599 ft. Interval Bottom: 7615 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 1/12/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/5/2014 | Treatment End Date: | 9/5/2014 | | Treatment Summary: | Total 189,000 lbs 20/40 White Sand, & 4,760 lbs 20/40 Propstar. Total slickwater pumped 2861 bbls. Flowback determined from well test seperator. | | Total fluid used in treatment (bbls): | 2861 | Max pressure during treatment (psi): | 4132 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.70 | | Recycled water used in treatment (bbls): | 0 | Total flowback volume recovered (bbls): | 124 | | Fresh water used in treatment (bbls): | 2861 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 193760 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 12/17/2011 | | Treatment Summary: | Total Fluid: 4105 bbls, total proppant 115,120 lbs 30/50 white sand. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7599 ft. | # Of Holes: | 128 | | Interval Bottom: | 7615 ft. | Hole Size: | 0.35 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 2/8/2019 Interval Top: 7289 ft. Interval Bottom: 7615 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 1/12/2012 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 17 | | BBLS_OIL | 156 | | BTU_GAS | 1254 | | CALC_BBLS_H2O | 17 | | CALC_BBLS_OIL | 156 | | CALC_GOR | 699 | | CALC_MCF_GAS | 109 | | CASING_PRESS | 1840 | | GRAVITY_OIL | 48 | | MCF_GAS | 109 | | TUBING_PRESS | 1480 |
| | Perforation Data: | | Interval Top: | 7289 ft. | # Of Holes: | 404 | | Interval Bottom: | 7615 ft. | Hole Size: | 0.35 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 2/8/2019 Interval Top: 7289 ft. Interval Bottom: 7507 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/11/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/2/2012 | | Treatment Summary: | Total 204,051 lbs, 200,051 40/70 Ottawa, 4,000 lbs 20/40 Super LC. Pumped 0.5 ppa to 2.0 ppa. Total fluid pumped 6,140 bbls. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7289 ft. | # Of Holes: | 276 | | Interval Bottom: | 7507 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 05/14/2021 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
