COGIS - WELL SCOUT CARD

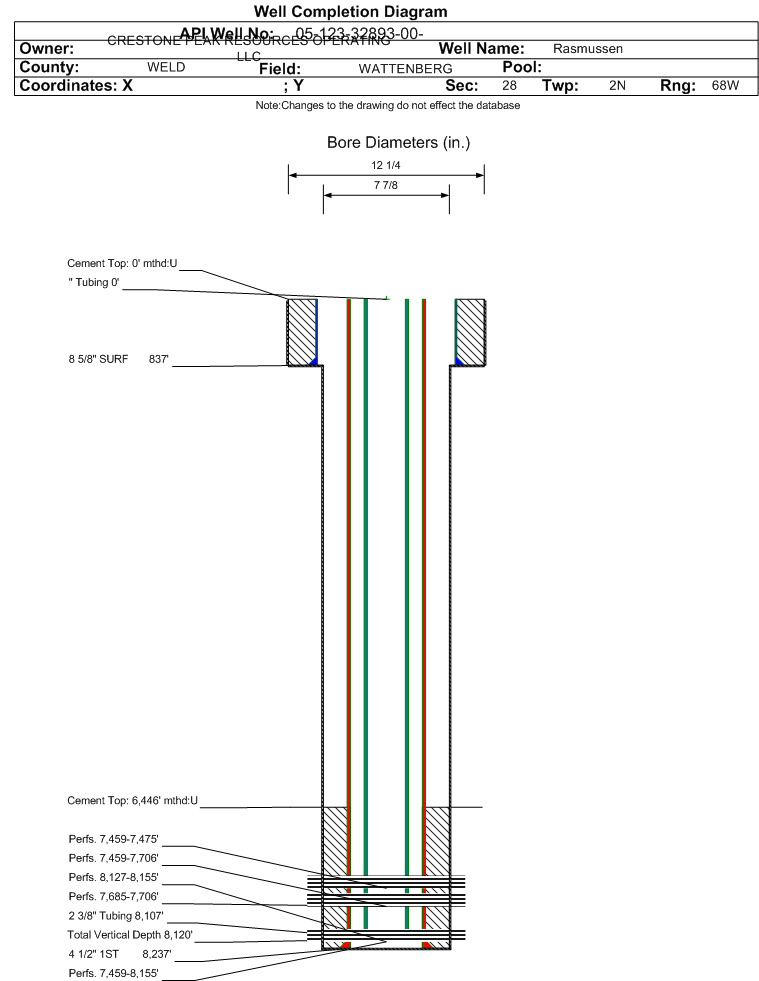

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-32893		Well Classification: OW Status: PA - 1/10/2025
Well Name/No:RASMUSSEN #4-2-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/10/2025
FacilityID:421335LocationID:333145
County:WELD #123Location:SENW 28 2N68W 6
Field:WATTENBERG - #90750Elevation:4935 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1962FNL  1820 FWLLat/Long: 40.111500 / -105.011200Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.111499 / -105.011194Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 4/23/2013
End Date: 4/24/2013
Reported: 6/27/2013
Days to report: 64
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 1/10/2025             Measured TD: 8250 ft.    Vertical TD: 8120 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 1/10/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/12/2015
Proposed Top PZ Location:Sec:28 Twp: 2N 28W Footage: 1300 FNL  2653 FWL
Bottom Hole Location:Sec:28 Twp: 2N 68W Footage: 1292 FNL  2649 FWL
Proposed Depth/Form:8239 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5128 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 150, Top: 4135 ft., Bottom: 5128 ft.
Wellbore Completed
Completion Date:3/5/2013
Spud Date:2/28/2013Spud Date Is:ACTUAL
Measured TD:8250 ft.Measured PB depth:8194 ft.
True Vertical TD:8120 ft.True Vertical PB depth:8064 ft.
Top PZ Location:Sec:28 Twp: 2N 28WFootage: 1300 FNL  2653 FWL
Bottom Hole Location:Sec:28 Twp: 2N 68WFootage: 1292 FNL  2649 FWL
Log Types:CBL, HRI, CD, CN
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 837 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 850 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8237 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 735, Top: 3800 ft., Bottom: 8237 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4442 ft.
NIOBRARA7389 ft.
CODELL7684 ft.
J SAND8119 ft.

Formation JSND                     Formation Classification:  OW                     Status:  AB - 1/10/2025                 Interval Top: 8127 ft.    Interval Bottom: 8155 ft.

 Completed Information for Formation J SAND
1st Production Date:6/21/2013Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:4/23/2013Treatment End Date:4/24/2013
Treatment Summary:Frac'd the J Sand with 109,600# 20/40 with 114,198 gals SLF
Total fluid used in treatment (bbls):2719Max pressure during treatment (psi):6029
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.30
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):Min frac gradient (psi/ft):0.61
Recycled water used in treatment (bbls):2719Total flowback volume recovered (bbls):1227
Fresh water used in treatment (bbls):Disposition method For flowback:DISPOSAL
Total proppant used (lbs):109600Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:4/23/2012
Treatment Summary:Frac'd the J Sand with 109,600# 20/40 with 114,198 gals SLF
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:8127 ft.# Of Holes:75
Interval Bottom:8155 ft.Hole Size:0.42 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 6/4/2014                  Interval Top: 7685 ft.    Interval Bottom: 7706 ft.

 Completed Information for Formation CODELL
1st Production Date:6/21/2013Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:4/23/2013Treatment End Date:4/24/2013
Treatment Summary:Set CFP @ 7740. 4-23-13 Frac'd the Codell with 108,680# 40-70 with 112,434 bbls total fluid. 4-23-13
Total fluid used in treatment (bbls):2677Max pressure during treatment (psi):3680
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.34
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.78
Recycled water used in treatment (bbls):2677Total flowback volume recovered (bbls):1227
Fresh water used in treatment (bbls):0Disposition method For flowback:DISPOSAL
Total proppant used (lbs):108680Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7685 ft.# Of Holes:63
Interval Bottom:7706 ft.Hole Size:0.42 in.

Formation JNBCD                   Formation Classification:  OW                   Status:  CM - 6/15/2015                 Interval Top: 7459 ft.    Interval Bottom: 8155 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:6/21/2013Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:4/23/2013Treatment End Date:4/24/2013
Treatment Summary:Frac'd the J Sand with 109,600# 20/40 with 114,198 gals SLF
Total fluid used in treatment (bbls):10628Max pressure during treatment (psi):6029
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.30
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):504Min frac gradient (psi/ft):0.61
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):1227
Fresh water used in treatment (bbls):10124Disposition method For flowback:DISPOSAL
Total proppant used (lbs):320738Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:8107 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/5/2013Test Method:flowing
Hours Tested:18Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 27
BBLS_OIL 30
BTU_GAS 1100
CALC_BBLS_H2O 36
CALC_BBLS_OIL 40
CALC_GOR 7275
CALC_MCF_GAS 291
CASING_PRESS 1100
GRAVITY_OIL 50
MCF_GAS 218
TUBING_PRESS 311
Perforation Data:
Interval Top:7459 ft.# Of Holes:202
Interval Bottom:8155 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 1/10/2025                 Interval Top: 7459 ft.    Interval Bottom: 7706 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/21/2013Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7459 ft.# Of Holes:127
Interval Bottom:7706 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 6/4/2014                  Interval Top: 7459 ft.    Interval Bottom: 7475 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:6/21/2013Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:4/23/2013Treatment End Date:4/24/2013
Treatment Summary:Set CFP @ 7520'. 4-23-13 Frac NBRR with 111,700# 40/70 with 113,568 gals SLF. 4-24-13
Total fluid used in treatment (bbls):2704Max pressure during treatment (psi):5500
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.30
Type Of gas:Number Of staged intervals:1
Total acid used in treatment (bbls):Min frac gradient (psi/ft):0.78
Recycled water used in treatment (bbls):2704Total flowback volume recovered (bbls):1227
Fresh water used in treatment (bbls):Disposition method For flowback:DISPOSAL
Total proppant used (lbs):111700Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7459 ft.# Of Holes:64
Interval Bottom:7475 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/10/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
