Wellbore #00 Wellbore Classification: OW Status: PA - 10/17/2017 Measured TD: 8015 ft. Vertical TD: 7879 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 10/17/2017 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/6/2012 | | Proposed Top PZ Location: | Sec:32 Twp: 3N 67W | Footage: 2595 FNL 2595 FEL | | Bottom Hole Location: | Sec:32 Twp: 3N 67W | Footage: 2595 FNL 2595 FEL | | Proposed Depth/Form: | 7984 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: CONDUCTOR, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 640 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 448, Top: 0 ft., Bottom: 640 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7988 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: , Bottom: 7988 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/8/2010 | | Spud Date: | 11/3/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 8015 ft. | Measured PB depth: | 7957 ft. | | True Vertical TD: | 7879 ft. | True Vertical PB depth: | 7822 ft. | | Top PZ Location: | Sec:32 Twp: 3N 67W | Footage: 2582 FNL 2606 FEL | | Bottom Hole Location: | Sec:32 Twp: 3N 67W | Footage: 2581 FNL 2600 FEL | | Log Types: | Preliminary Form 5 | | Log Types: | CBL

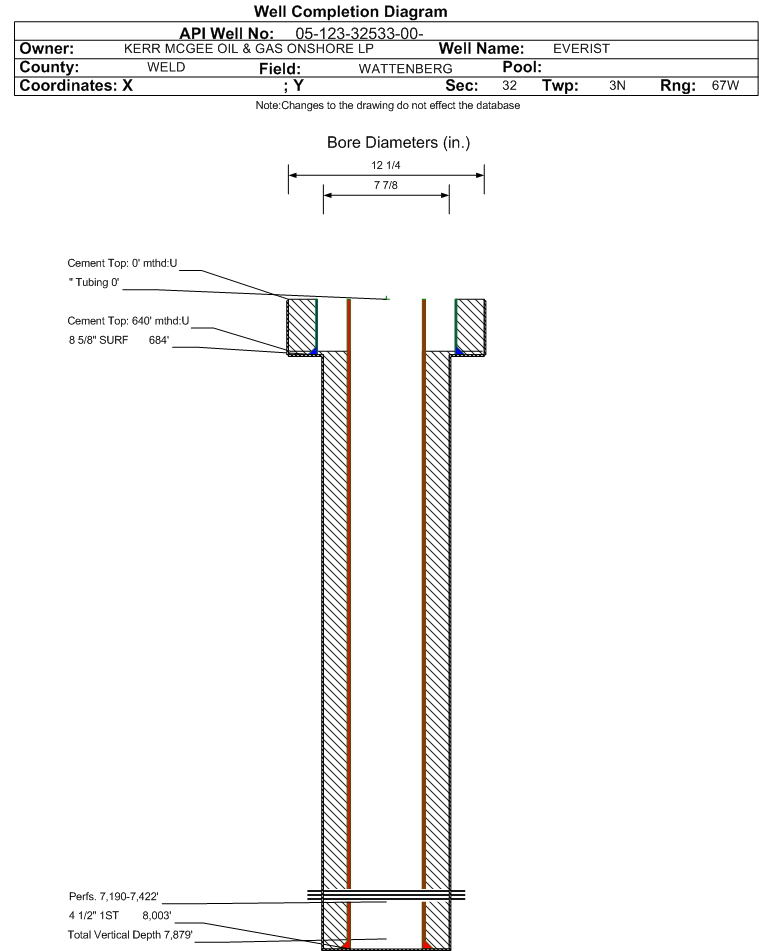

NO OPEN HOLE LOGS RUN, BRIDGED OUT @ 2190'. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 684 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 330, Top: 0 ft., Bottom: 684 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8003 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1040, Top: 640 ft., Bottom: 8003 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4237 ft. | | | | | NIOBRARA | 7138 ft. | | | | | FORT HAYS | 7389 ft. | | | | | CODELL | 7414 ft. | | | | | J SAND | 7851 ft. | | | |
Formation NB-CD Formation Classification: GW Status: AB - 10/17/2017 Interval Top: 7190 ft. Interval Bottom: 7422 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 12/20/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/16/2010 | | Treatment Summary: | NB Perf 7190-7278 Holes 60 Size 0.42 CD Perf 7402-7422 Holes 60 Size 0.38
Frac Niobrara B & C down 4-1/2" Csg w/ 252 gal 15% HCl & 244,276 gal Slickwater w/ 200,940# 40/70, 2,000# SB Excel
Frac Codell down 4-1/2" Csg w/ 205,514 gal Slickwater w/ 150,260# 40/70, 4,000# SB Excel |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/1/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 64 | | BTU_GAS | 1257 | | CALC_BBLS_OIL | 64 | | CALC_GOR | 7299 | | CALC_MCF_GAS | 467 | | CASING_PRESS | 717 | | GRAVITY_OIL | 49 | | MCF_GAS | 467 |
| | Perforation Data: | | Interval Top: | 7190 ft. | # Of Holes: | 120 | | Interval Bottom: | 7422 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 10/17/2017 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
