COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-32233		Well Classification: GW Status: PR - 5/1/2023
Well Name/No:MARTINSON #0-6-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2023
FacilityID:419404LocationID:310574
County:WELD #123Location:SWSW 24 4N66W 6
Field:WATTENBERG - #90750Elevation:4744 ft.
Basin:DENVER (DJ) BASIN
Planned Location:501FSL  510 FWLLat/Long: 40.291620 / -104.733100Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.291625 / -104.733108Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 1/24/2012
End Date: 1/24/2012
Reported: 8/9/2012
Prior to rule 205A.b.(2)(A)
Days to report: 198
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2023             Measured TD: 7957 ft.    Vertical TD: 7853 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2023
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:9/20/2012
Proposed Top PZ Location:Sec:24 Twp: 4N 66W Footage: 1254 FSL  64 FWL
Bottom Hole Location:Sec:24 Twp: 4N 66W Footage: 1255 FSL  64 FWL
Proposed Depth/Form:7920 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 500 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 220, Top: 0 ft., Bottom: 500 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7920 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 300, Top: 6780 ft., Bottom: 7920 ft.

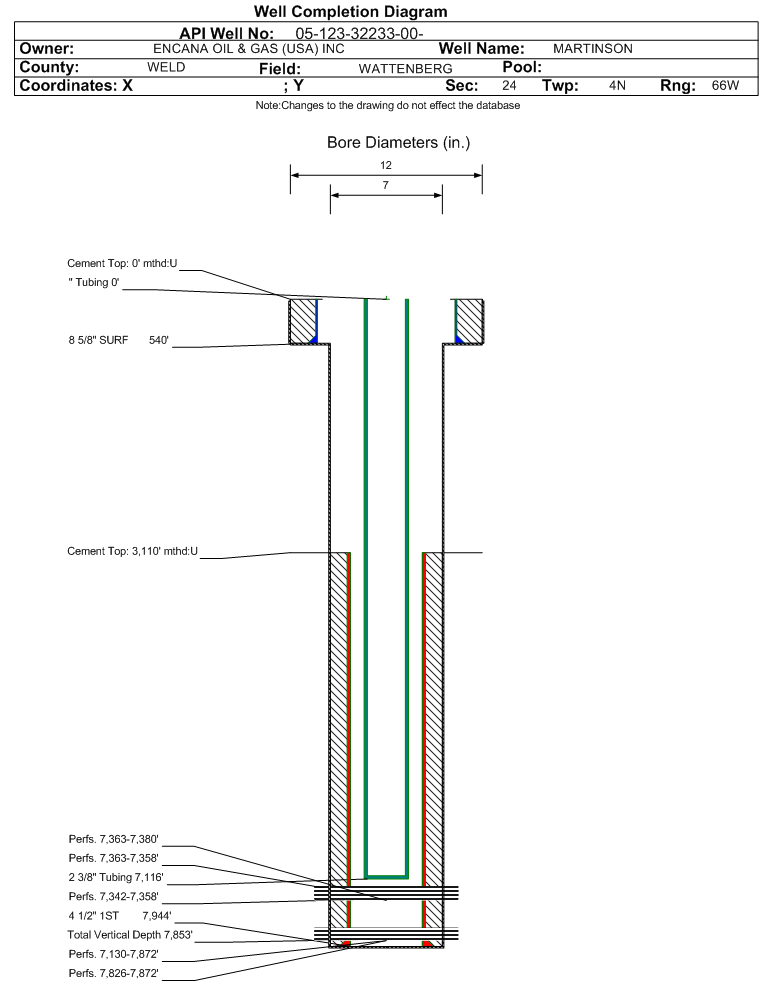

Wellbore Completed
Completion Date:12/31/2011
Spud Date:12/25/2011Spud Date Is:ACTUAL
Measured TD:7957 ft.Measured PB depth:7940 ft.
True Vertical TD:7853 ft.True Vertical PB depth:7836 ft.
Top PZ Location:Sec:24 Twp: 4N 66WFootage: 1254 FSL  64 FWL
Bottom Hole Location:Sec:24 Twp: 4N 66WFootage: 1255 FSL  64 FWL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12 in., Size: 8.625 in., Top: 0 ft., Depth: 540 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 260, Top: 0 ft., Bottom: 540 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7 in., Size: 4.5 in., Top: 3110 ft., Depth: 7944 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 655, Top: 3110 ft., Bottom: 7944 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4510 ft.
NIOBRARA7042 ft.
CODELL7342 ft.
J SAND7814 ft.

Formation JSND                     Formation Classification:  GW                     Status:  PR - 5/1/2023                  Interval Top: 7826 ft.    Interval Bottom: 7872 ft.

 Completed Information for Formation J SAND
1st Production Date:3/9/2012Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/12/2012
Treatment Summary:Frac'd the J-Sand 7826’-7872’, (68 holes)w/ 67,452 gal 18 # FlexD Hybrid cross linked gel containing 285,000 # 20/40 Sand. 01-22-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7826 ft.# Of Holes:68
Interval Bottom:7872 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 10/2/2012                 Interval Top: 7363 ft.    Interval Bottom: 7380 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:3/9/2012Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/24/2012
Treatment Summary:Set CFP @ 7190'. 01-23-12 Frac'd the Niobrara 7363’ – 7380’ (34 holes) w/ 250,500 20/40 sand with 90,888 gal SLF FB. 01-24-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7363 ft.# Of Holes:34
Interval Bottom:7380 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  PR - 5/1/2023                  Interval Top: 7358 ft.    Interval Bottom: 7363 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7358 ft.# Of Holes:66
Interval Bottom:7363 ft.Hole Size:0.42 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 10/2/2012                 Interval Top: 7342 ft.    Interval Bottom: 7358 ft.

 Completed Information for Formation CODELL
1st Production Date:3/9/2012Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/22/2012
Treatment Summary:Set CFP @ 7420'. 01-22-12 Frac'd the Codell 7342’ – 7358’ (32 holes) w/ 73,248 gal 22# FlexD Hybrid cross linked gel containing 163,341 # 20/40 sand. 01-22-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7342 ft.# Of Holes:32
Interval Bottom:7358 ft.Hole Size:0.42 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 3/18/2012                 Interval Top: 7130 ft.    Interval Bottom: 7872 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:3/9/2012Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/18/2012
Treatment Summary:Set CBP @ 7050'. 03-05-12. Drilled out CBP @ 7050', CFP @7190', 7420' to commingle the JSND-NBRR-CDL. 03-16-12
Tubing Size:2.375 in.Tubing Setting Depth:7116 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/18/2012Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 64
BBLS_OIL 64
BTU_GAS 1272
CALC_BBLS_H2O 64
CALC_BBLS_OIL 64
CALC_GOR 20219
CALC_MCF_GAS 1294
CASING_PRESS 937
GRAVITY_OIL 64
MCF_GAS 1294
TUBING_PRESS 1169
Perforation Data:
Interval Top:7130 ft.# Of Holes:134
Interval Bottom:7872 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)145
Total Gas Produced (MCF)9450
GOR65172
GOR DeterminationMCFE
Average BOE per Day4.851
Average MCFE per Day28.121

 Federal Financial Assurance  i

 Tribal Well  i No
