COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-32230		Well Classification: GW Status: SI - 6/1/2024
Well Name/No:MARTINSON #4-6-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date6/1/2024
FacilityID:419398LocationID:326770
County:WELD #123Location:NESW 24 4N66W 6
Field:WATTENBERG - #90750Elevation:4737 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1936FSL  2026 FWLLat/Long: 40.295730 / -104.727670Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.295737 / -104.727690Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 2/2/2012
End Date: 2/2/2012
Reported: 8/9/2012
Prior to rule 205A.b.(2)(A)
Days to report: 189
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 6/1/2024             Measured TD: 7900 ft.    Vertical TD: 7817 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 6/1/2024
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:9/20/2012
Proposed Top PZ Location:Sec:24 Twp: 4N 66W Footage: 1400 FSL  2660 FWL
Bottom Hole Location:Sec:24 Twp: 4N 66W Footage: 1400 FSL  2660 FWL
Proposed Depth/Form:7876 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 500 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 220, Top: 0 ft., Bottom: 500 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7876 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 290, Top: 6772 ft., Bottom: 7876 ft.

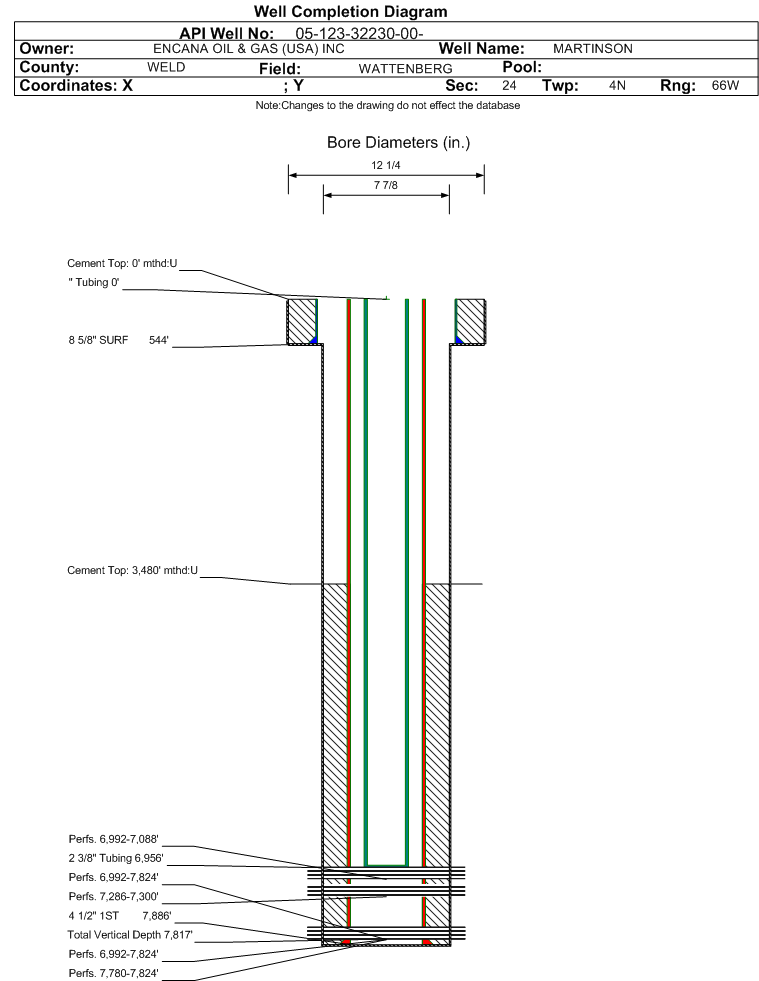

Wellbore Completed
Completion Date:1/24/2012
Spud Date:1/16/2012Spud Date Is:ACTUAL
Measured TD:7900 ft.Measured PB depth:7852 ft.
True Vertical TD:7817 ft.True Vertical PB depth:7769 ft.
Top PZ Location:Sec:24 Twp: 4N 66WFootage: 1426 FSL  2630 FWL
Bottom Hole Location:Sec:24 Twp: 4N 66WFootage: 1426 FSL  2630 FWL
Log Types:CBL, Dual Ind/Compensated Density/Compensated Neutron
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 544 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 215, Top: 0 ft., Bottom: 544 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7886 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 623, Top: 3480 ft., Bottom: 7886 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4377 ft.
NIOBRARA6979 ft.
CODELL7286 ft.
J SAND7761 ft.

Formation JSND                     Formation Classification:  OW                     Status:  SI - 6/1/2024                  Interval Top: 7780 ft.    Interval Bottom: 7824 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/2/2012
Treatment Summary:Frac'd the J-Sand 7780’-7824’, (50 holes) w/ 65,688 gal 18 # pHaser Hybrid cross linked gel containing 251,420 # 20/40 Sand. 02-02-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7780 ft.# Of Holes:50
Interval Bottom:7824 ft.Hole Size:0.42 in.

Formation CODL                     Formation Classification:                       Status:  CM - 8/22/2012                 Interval Top: 7286 ft.    Interval Bottom: 7300 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/2/2012
Treatment Summary:Set CFP @ 7340'. 02-02-12 Frac'd the Codell 7286' - 7300' (42 holes) w/ 91,066 gal 22# pHaser Hybrid cross linked gel containing 251,420 # 20/40 sand. 02-02-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7286 ft.# Of Holes:42
Interval Bottom:7300 ft.Hole Size:0.42 in.

Formation JNBCD                   Formation Classification:                     Status:  CM - 8/22/2012                 Interval Top: 6992 ft.    Interval Bottom: 7824 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JNBCD.
Perforation Data:
Interval Top:6992 ft.# Of Holes:144
Interval Bottom:7824 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  SI - 6/1/2024                  Interval Top: 6992 ft.    Interval Bottom: 7824 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/2/2012
Treatment Summary:Set CBP @ 6950'. 02-29-12 Drilled out CBP @ 6950' to commingle the Niobrara-Codell. 03-01-12
Tubing Size:2.375 in.Tubing Setting Depth:6956 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/2/2012Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 40
BBLS_OIL 35
BTU_GAS 1169
CALC_BBLS_H2O 40
CALC_BBLS_OIL 35
CALC_GOR 13571
CALC_MCF_GAS 475
CASING_PRESS 1050
MCF_GAS 475
TUBING_PRESS 795
Perforation Data:
Interval Top:6992 ft.# Of Holes:144
Interval Bottom:7824 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:                       Status:  CM - 8/22/2012                 Interval Top: 6992 ft.    Interval Bottom: 7088 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/2/2012
Treatment Summary:Set CFP @ 7138'. 02-02-12 Frac'd the Niobrara 6992– 7088’ (52 holes), w/ 100,800gals 18 # pHaser Hybrid cross linked gel containing 251,420 # 20/40 sand. 02-02-12
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6992 ft.# Of Holes:52
Interval Bottom:7088 ft.Hole Size:0.42 in.
Primary Well Designation:
Noticed Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
09/25/2025
Defined Inactive (SI )YDefined Inactive
05/31/2024
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
