Wellbore #00 Wellbore Classification: GW Status: PA - 3/1/2022 Measured TD: 7282 ft. Vertical TD: 7085 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 3/1/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/7/2012 | | Proposed Top PZ Location: | Sec:31 Twp: 7N 63W | Footage: 665 FSL 649 FWL | | Bottom Hole Location: | Sec:31 Twp: 7N 63W | Footage: 665 FSL 649 FWL | | Proposed Depth/Form: | 7300 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: W/2SW4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 500 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 265, Top: 0 ft., Bottom: 500 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7300 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 525, Top: 3000 ft., Bottom: 7300 ft. |
| | |

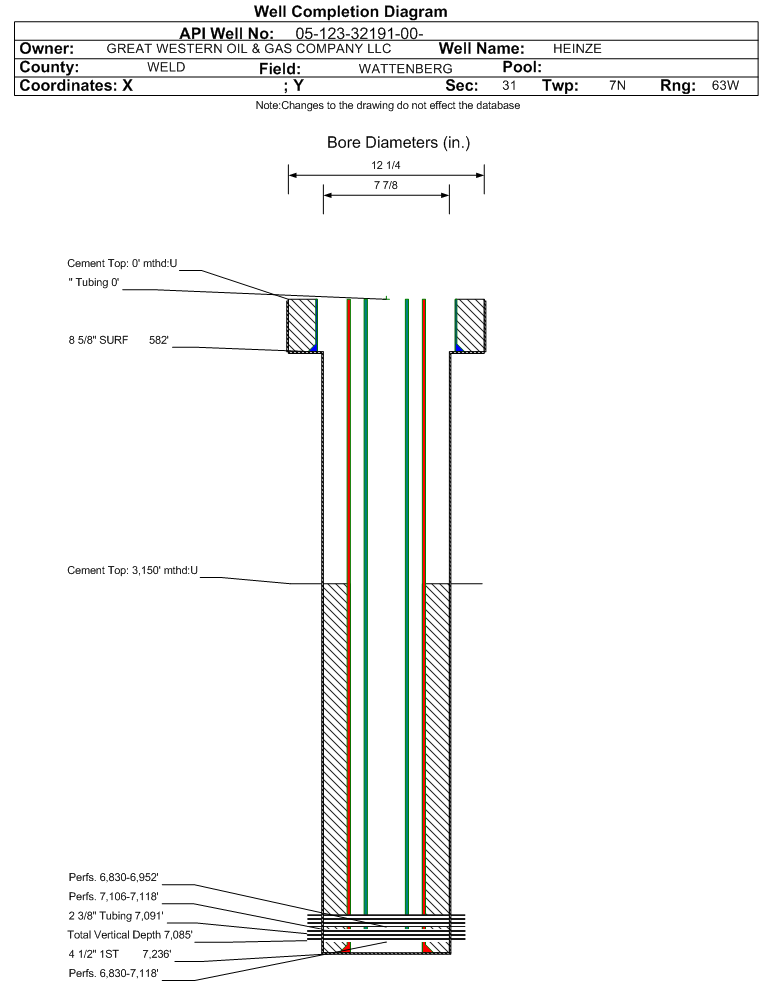

| Wellbore Completed | | Completion Date: | 9/19/2010 | | Spud Date: | 9/15/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7282 ft. | Measured PB depth: | 7224 ft. | | True Vertical TD: | 7085 ft. | True Vertical PB depth: | 7027 ft. | | Top PZ Location: | Sec:31 Twp: 7N 63W | Footage: 665 FSL 649 FWL | | Bottom Hole Location: | Sec:31 Twp: 7N 63W | Footage: 665 FSL 649 FWL | | Log Types: | COMP. DENSITY NEUTRON GR; DUAL INDUCTION LOG GR; CEMENT BOND-VD | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 582 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 0 ft., Bottom: 582 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7236 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 3150 ft., Bottom: 7236 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: , Top: 0 ft., Depth: 750 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 120, Top: 225 ft., Bottom: 750 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2975 ft. | | | | | PARKMAN | 3728 ft. | | | | | SUSSEX | 4514 ft. | | | | | SHANNON | 5180 ft. | | | | | TEEPEE BUTTES | 6046 ft. | | | | | NIOBRARA | 6818 ft. | | | | | FORT HAYS | 7064 ft. | | | | | CODELL | 7106 ft. | | | |
Formation CODL Formation Classification: GW Status: CM - 11/15/2010 Interval Top: 7106 ft. Interval Bottom: 7118 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 9/30/2010 | Choke Size: | | | Formation Name: | CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/28/2010 | | Treatment Summary: | FRAC CODELL WITH 4081 BBLS SLICKWATER AND 115,000# 30/50 SAND
SPEARHEAD 500 BBLS 7% KCL AHEAD OF FRAC
TREAT AT AN AVERAGE OF 4599 PSI 60.8 BPM MAX PRESSURE 4792 PSI MAX RATE 61.3 BPM |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/7/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 13 | | BBLS_OIL | 27 | | BTU_GAS | 1242 | | CALC_GOR | 963 | | CASING_PRESS | 275 | | GRAVITY_OIL | 44 | | MCF_GAS | 26 |
| | Perforation Data: | | Interval Top: | 7106 ft. | # Of Holes: | 48 | | Interval Bottom: | 7118 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: GW Status: AB - 3/1/2022 Interval Top: 6830 ft. Interval Bottom: 7118 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 12/11/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7091 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/13/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 30 | | BTU_GAS | 1242 | | CALC_GOR | 1067 | | CASING_PRESS | 1200 | | GRAVITY_OIL | 46 | | MCF_GAS | 32 | | TUBING_PRESS | 850 |
| | Perforation Data: | | Interval Top: | 6830 ft. | # Of Holes: | 176 | | Interval Bottom: | 7118 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: GW Status: CM - 12/3/2010 Interval Top: 6830 ft. Interval Bottom: 6952 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/15/2010 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/13/2010 | | Treatment Summary: | FRAC NIOBRARA WITH 4154 BBLS DYNAFLOW 2 WR FLUID; 238000 30/50 SAND; AND 12000# 20/40 RESIN COATED SAND.
SPEARHEAD 24 BBLS 15% ACID AHEAD OF FRAC AND 500 BBLS 7% KCL IN PRE-PAD.
TREAT AT AN AVERAGE 4525 PSI AND 61.2 BPL MAX PRESSURE 5799 PSI MAX RATE 61.7 BPM |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/3/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 25 | | BTU_GAS | 1242 | | CALC_GOR | 800 | | CASING_PRESS | 225 | | GRAVITY_OIL | 43 | | MCF_GAS | 20 |
| | Perforation Data: | | Interval Top: | 6830 ft. | # Of Holes: | 128 | | Interval Bottom: | 6952 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 03/01/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
