Wellbore #00 Wellbore Classification: OW Status: PA - 9/19/2022 Measured TD: 6964 ft. Vertical TD: 6867 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 9/19/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/2/2012 | | Proposed Top PZ Location: | Sec:22 Twp: 5N 64W | Footage: 25 FNL 1319 FEL | | Bottom Hole Location: | Sec:22 Twp: 5N 64W | Footage: 25 FNL 1319 FEL | | Proposed Depth/Form: | 7046 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 650 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 650 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7046 ft., Weight: 10.5 , Citings Type: PLANNED | | Cement: | Sacks: 525, Top: 0 ft., Bottom: 7046 ft. |
| | |

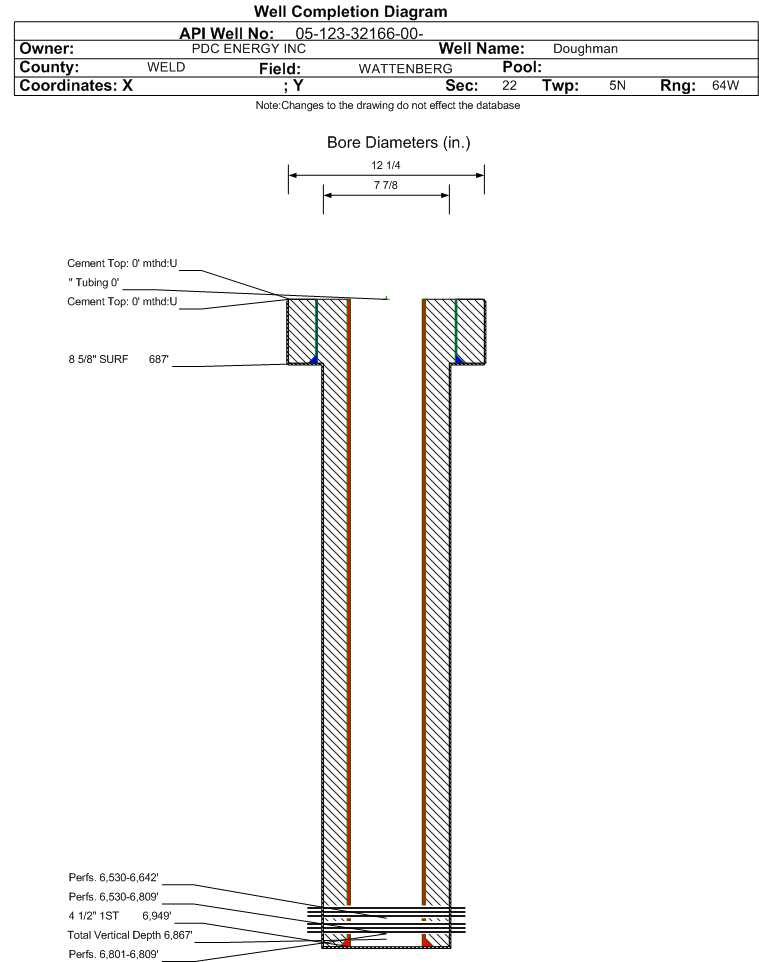

| Wellbore Completed | | Completion Date: | 11/12/2010 | | Spud Date: | 11/8/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 6964 ft. | Measured PB depth: | 6913 ft. | | True Vertical TD: | 6867 ft. | True Vertical PB depth: | 6815 ft. | | Top PZ Location: | Sec:22 Twp: 5N 64W | Footage: 31 FNL 1315 FEL | | Bottom Hole Location: | Sec:22 Twp: 5N 64W | Footage: 100 FNL 1314 FEL | | Log Types: | CBL, CNL/CDL, Dual Induction | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 687 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 687 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6949 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 740, Top: 0 ft., Bottom: 6949 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6524 ft. | | | | | FORT HAYS | 6776 ft. | | | | | CODELL | 6899 ft. | | | |
Formation CODL Formation Classification: Status: CM - 5/26/2011 Interval Top: 6801 ft. Interval Bottom: 6809 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/20/2011 | | Treatment Summary: | Frac'd Codell with 476bbls of slickwater pad, 146 bbls of pHaser 22# pad, 1955 bbls of pHaser 22# fluid system, 217560 lbs of 30/50 white sand and 8000 lbs of SB Excel 20/40 SB Excel |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 6801 ft. | # Of Holes: | 24 | | Interval Bottom: | 6809 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: OW Status: AB - 4/12/2022 Interval Top: 6530 ft. Interval Bottom: 6809 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 1/23/2011 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 50 | | BTU_GAS | 1324 | | CALC_BBLS_OIL | 50 | | CALC_GOR | 2740 | | CALC_MCF_GAS | 137 | | CASING_PRESS | 1297 | | GRAVITY_OIL | 50 | | MCF_GAS | 137 |
| | Perforation Data: | | Interval Top: | 6530 ft. | # Of Holes: | 64 | | Interval Bottom: | 6809 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: Status: CM - 5/26/2011 Interval Top: 6530 ft. Interval Bottom: 6642 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/20/2011 | | Treatment Summary: | Perf'd Niobrara "A" 6530'-32'' (4 holes), Niobrara "B" 6634'-42''' (24 holes), Niobrara "C" 6701'-09'' (24 holes)
Frac'd Niobrara with , 2024 bbls Slickwater pad, 144 bbls of pHaser 20# pad, 2846 bbls of pHaser 20# fluid system, 338600 lbs of 30/50 white sand, 12000 20/40 SB Excel. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6530 ft. | # Of Holes: | 40 | | Interval Bottom: | 6642 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 09/21/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
